Women’s Gravel Bike GRVL 520 SRAM APEX 1

We have designed and tested this gravel bike for regular rides. It will guarantee comfort and power on windy trailsThis gravel bike has a new gravel-specific geometry, Gravel 650 wheels and 47 Tubeless Ready tyres, SRAM APEX1 40T 11/42 single chainring. Comfort and handling for better steering on winding trails

Frame

New Triban EvoG frame made from aluminium 6061 T6, with its new Triban GRVL gravel-specific geometry for a better balance between
comfort and steering.

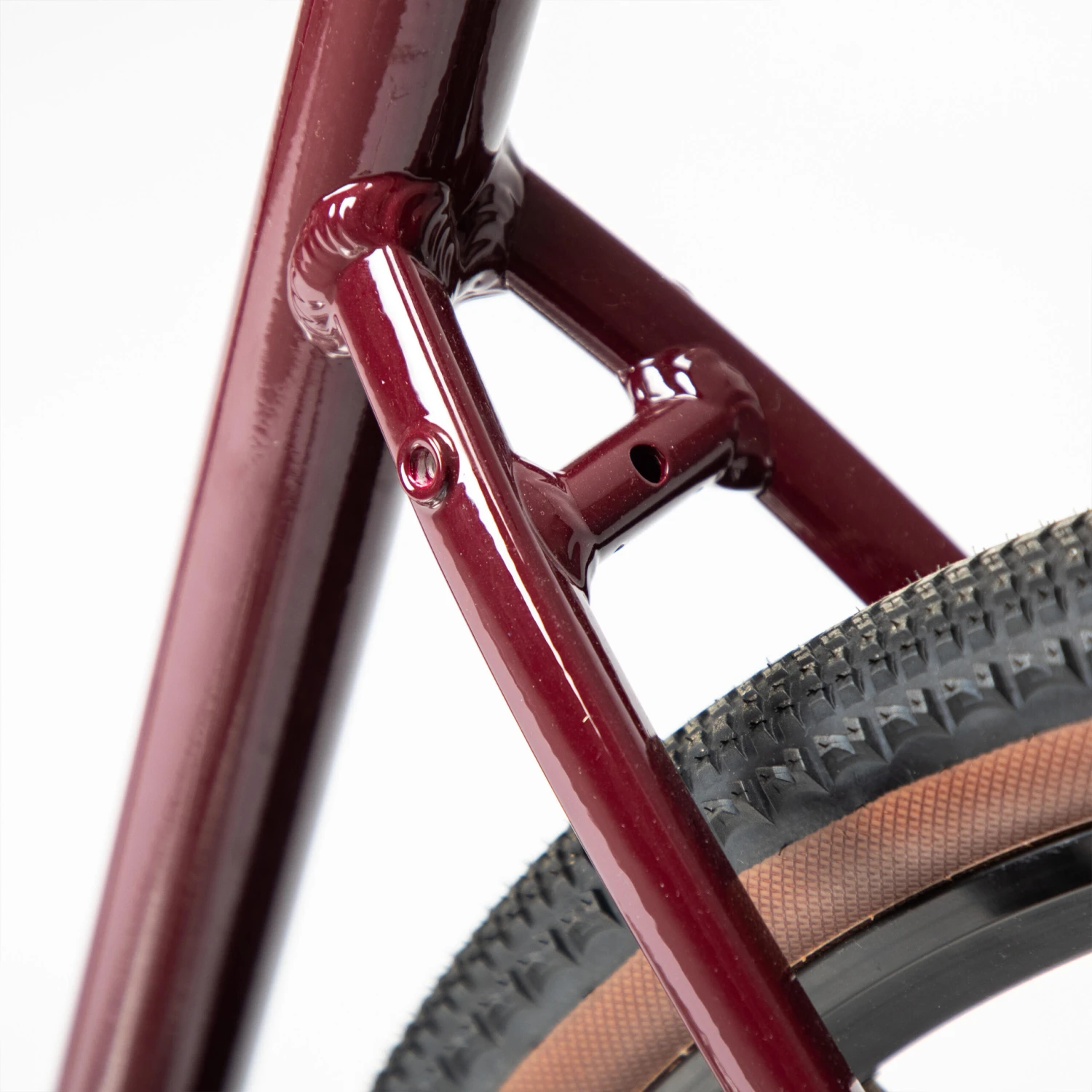

Strong, versatile frame: can accommodate a mudguard and pannier rack
Weight: 1750 g in size M.
9×135 axle spacing for a Quick Release QR axle / Flat mount brake calliper
Normative compatibility with tyre cross-sections up to 700.42 and 650.47

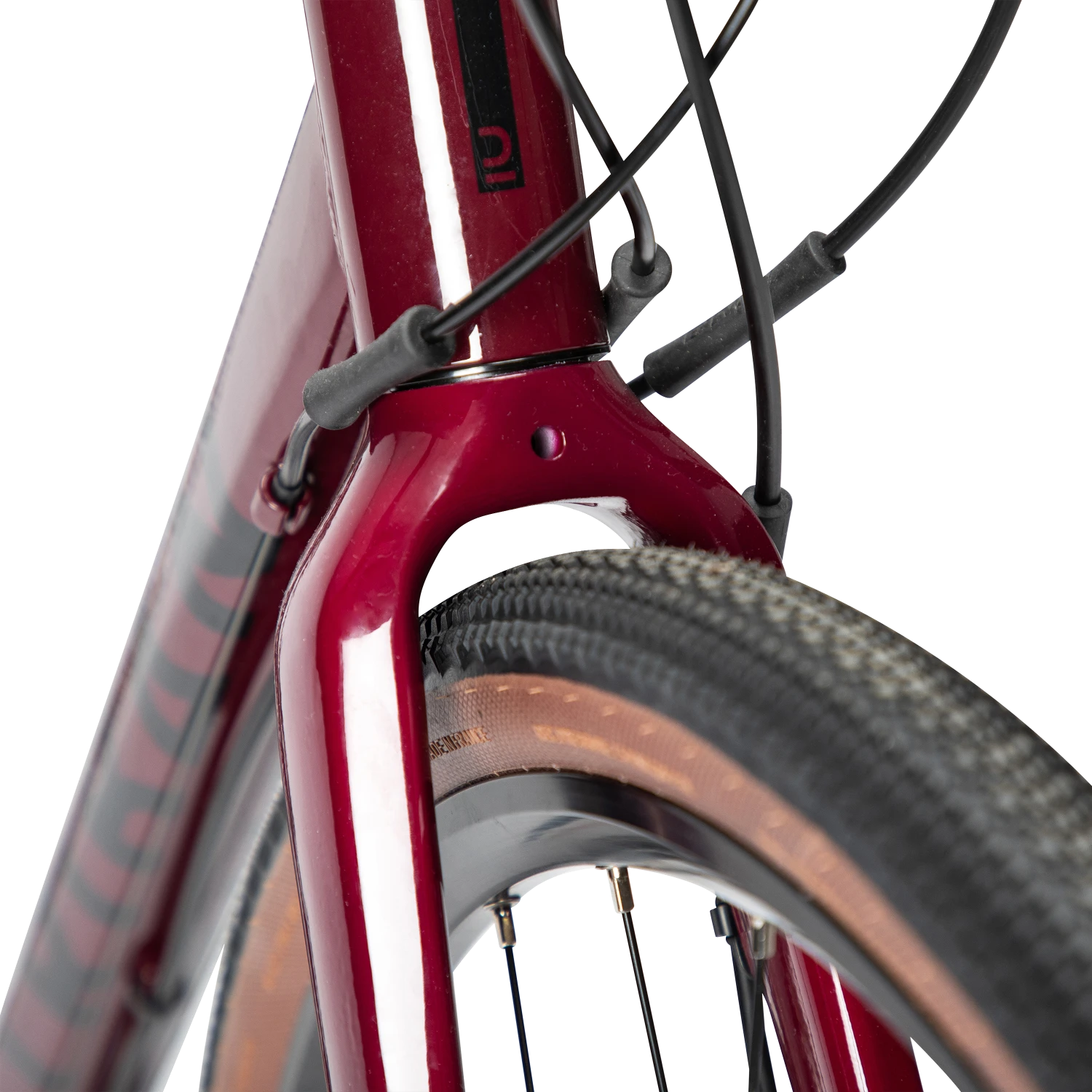

Fork

New Triban EvoG fork with carbon blades and aluminium 1″1/8 Aheadset steerer tube.
This fork combines comfort, low weight, and precision.
The carbon has been designed for good lateral rigidity and good filtering of frontal vibrations.
Flat mount calliper.
2 inserts on each blade for installing a front pannier rack or a bottle cage. Maximum load on the fork: 10 kg
Compatible with tyres up to 700.42 / 650.47

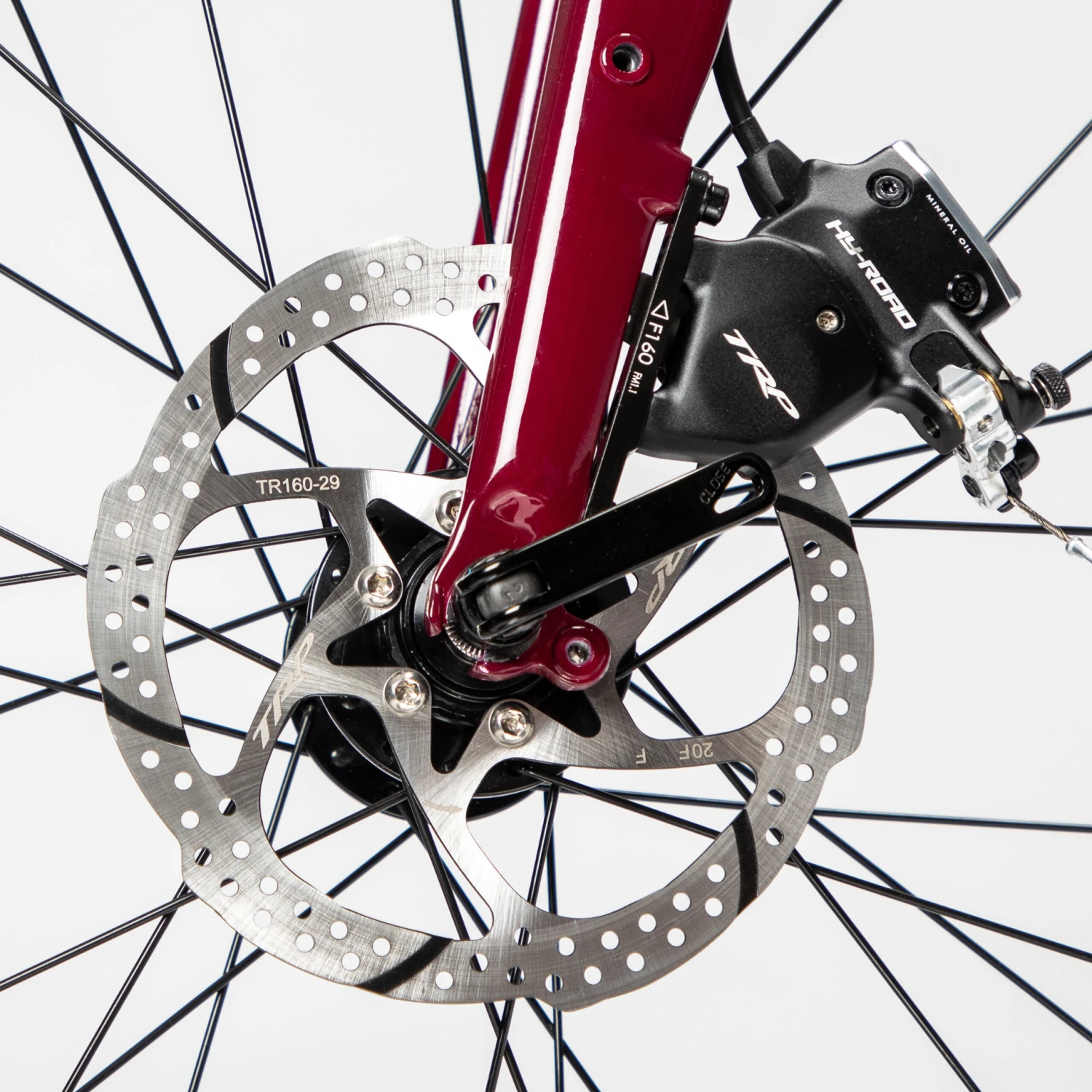

Brakes

TRP HY/RD disc brakes.
Cable-operated hydraulic pistons, ensuring reliability and efficiency
160mm disc at the front and rear. Flat Mount assembly.
Jagwire anti-compression sleeve to guarantee precision and efficiency
Semi-metal brake pad TRP (M515/M525)

Adjustment of the TRP/RD brakes is explained in the following video (at 10:20 min )=> https://www.youtube.com/watch?v=BcZKtFI8Els

Drivetrain

Simple and effective with the SRAM APEX1 for winding and uneven trails
SRAM APEX 1 shifters
SRAM APEX 1 rear derailleur
Rear derailleur weight: 314 g
SRAM PC1110 chain
Chain weight: 273 g

Crankset / cassette

SRAM APEX 1 PG1130 11-42 cassette
(11/13/15/17/19/22/25/28/32/36/42)
Cassette weight: 528 g

SRAM S350-1 APEX 1 40 chainset
Different crank lengths depending on the bike size:
XS, S, M: 170mm.

Saddle/Seat post

Triban ErgoFit saddle.
Hammock design for greater comfort.
Aluminium Triban seat post.
Easy seat adjustment
Diameter: 27.2mm.
Length: 250 mm in size XS, 300 mm in size S, 350 mm in size M.

The natural flex of the seat post (thanks to its 27.2 diameter) filters vibrations and impacts for greater comfort

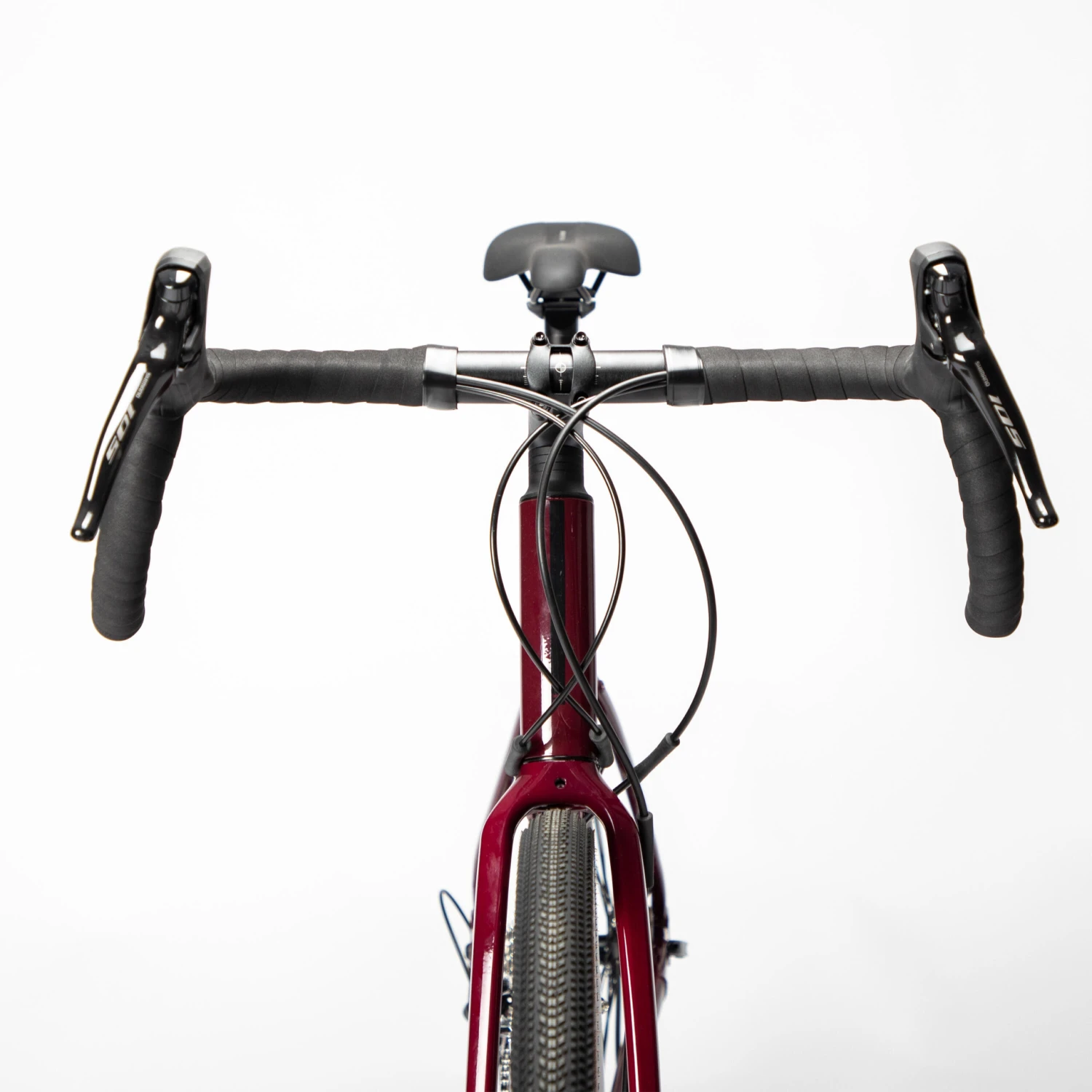

Handlebar / stem / steering

Triban aluminium gravel handlebars with a 16° flare for better grip and excellent comfort.
Handlebar width end to end:
XS / S: 400 mm.
M: 420 mm.

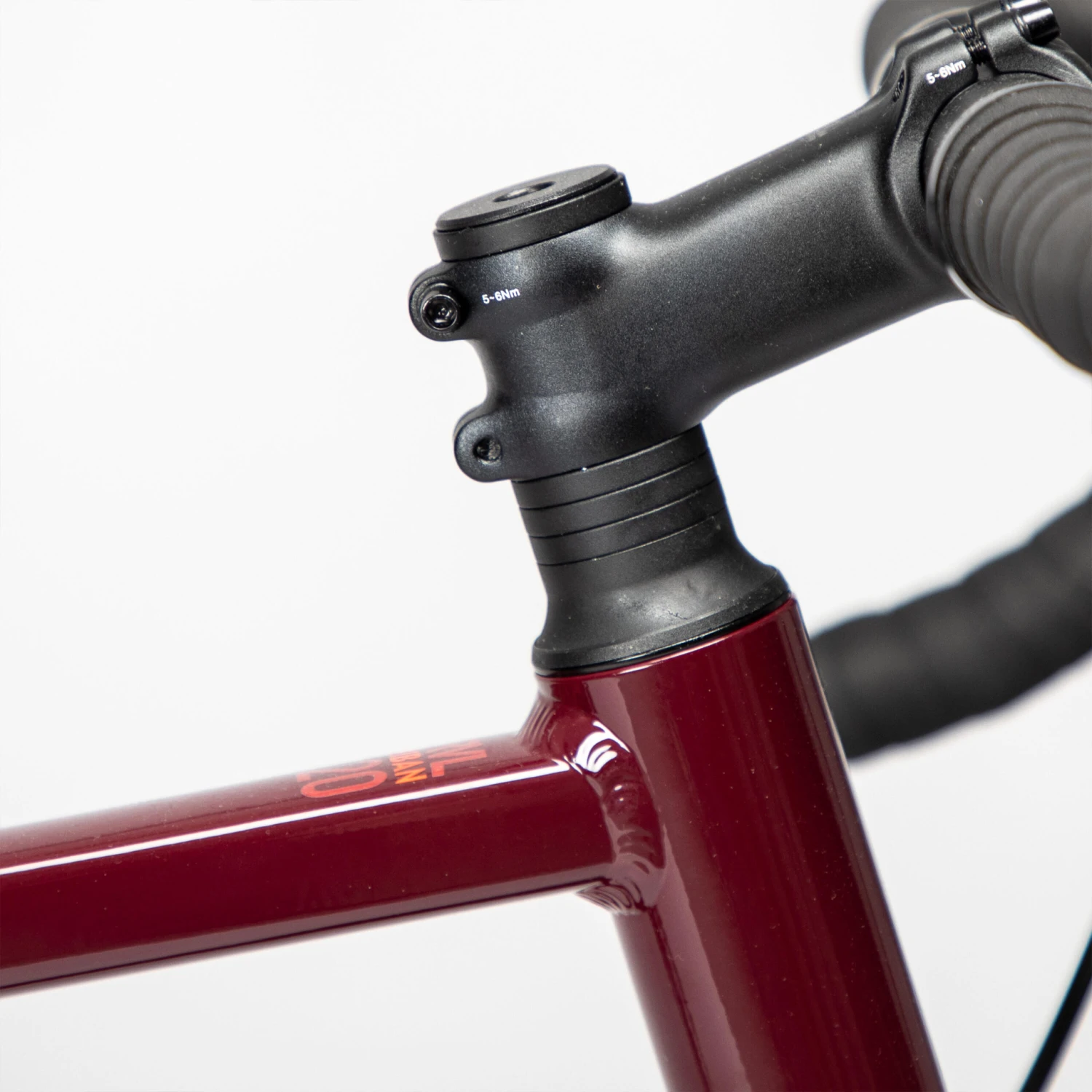

Stem:
XS/S: 60 mm
M: 70mm.

Wheels

Triban Gravel 650x23c Tubeless Ready wheels for effective steering and comfort on winding and uneven trails
6063 T66 aluminium.
ETRTO dimensions: 584 x 23 C.
Height: 19 mm
Crossed steel spokes (28 front and 28 rear).
Sealed cartridge bearings.
9×100 front, 9×135 rear QR axle
Weight per pair (without cassette and QR): 2.15 kg
TESA TLR* rim strip
*For converting to tubeless, add 2 tubeless valves (product ref: 8551979) + tubeless anti-puncture liquid sealant (product ref: 8363393)

Tyre

Hutchinson Touareg 650×47, Tubeless Ready tyres with Hardskin puncture protection
585 g per tyre
Skinwall dual-rubber flex bead
127 TPI carcass
Dimensions: ETRTO 47-584 / 650x47c
Min inner tube pressure: 2.5 bar / 38psi
Max inner tube pressure: 3.5 bar / 51 psi

Tubeless pressure: 2.5 to 3 bar (85 kg rider)

Tyre compatibility

This bike can be equipped with tyres up to 700.42 or 650.47
Minimum compatibility requirements: 23” wheels and tyres with a cross-section of 37

Pedals

Platform pedals included with the bike.
We recommend either platform or SPD pedals

Bike weight

10.9 kg in size M, without pedals;

THE DESIGN OF OUR GRVL520 BIKE

Check out the story of how our bike was designed on Exposure.
From observations to field tests, and all the way through the design process:
https://triban.exposure.co/
