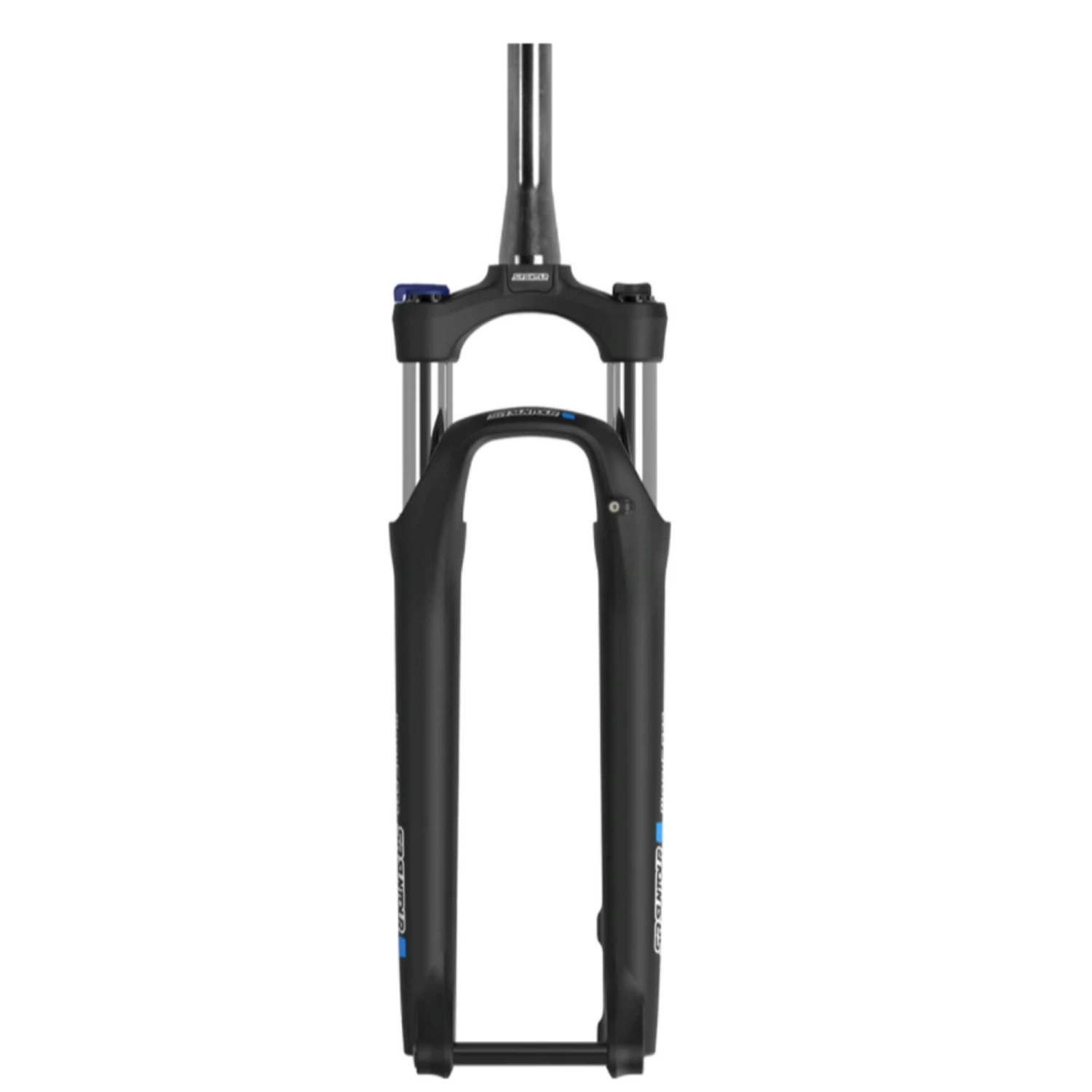

Suspension Fork Suntour SF19-Mobie-A32-DS

Designed for replacing the fork on your Rear Loading Electric Longtail Cargo Bike R500Fork for cargo bike and disc brake

Technical features

75 mm travel
27.5″ wheel size
Helical spring with preload adjustment
Locking mechanism
Aluminium moulding
32mm STKM coated chandeliers
Steel conical steering column 1.5-1-1/8
255 mm long steering column
15×100 bolt axle design
Disc brake only
160 mm direct assembly
180 mm maximum rotor capacity
Full mudguard compatible with direct assemblies
E-Bike A1 and A2 specially designed to carry extreme loads

Care tips

In the interest of performance, safety, and keeping your fork working for as long as possible, we recommend regularly checking it over, making sure the axle and wheel are screwed on tightly, and servicing it as recommended by the manufacturer. If you need help, our workshops are at your service and offer great prices on all bike servicing jobs.

Assembly instructions

The technicians at your Decathlon store workshop are available to help you replace the parts of your bike. Feel free to ask them for help!
