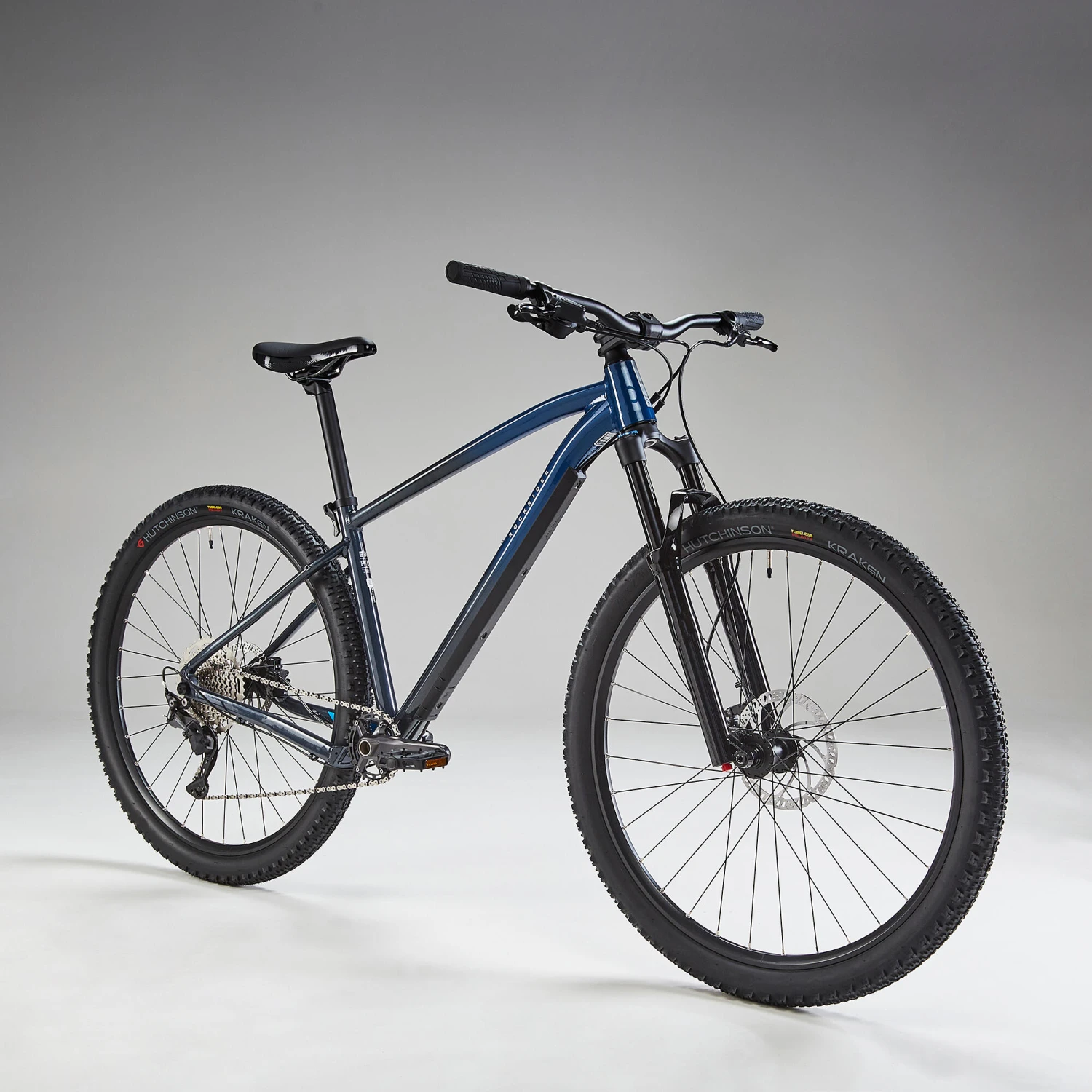

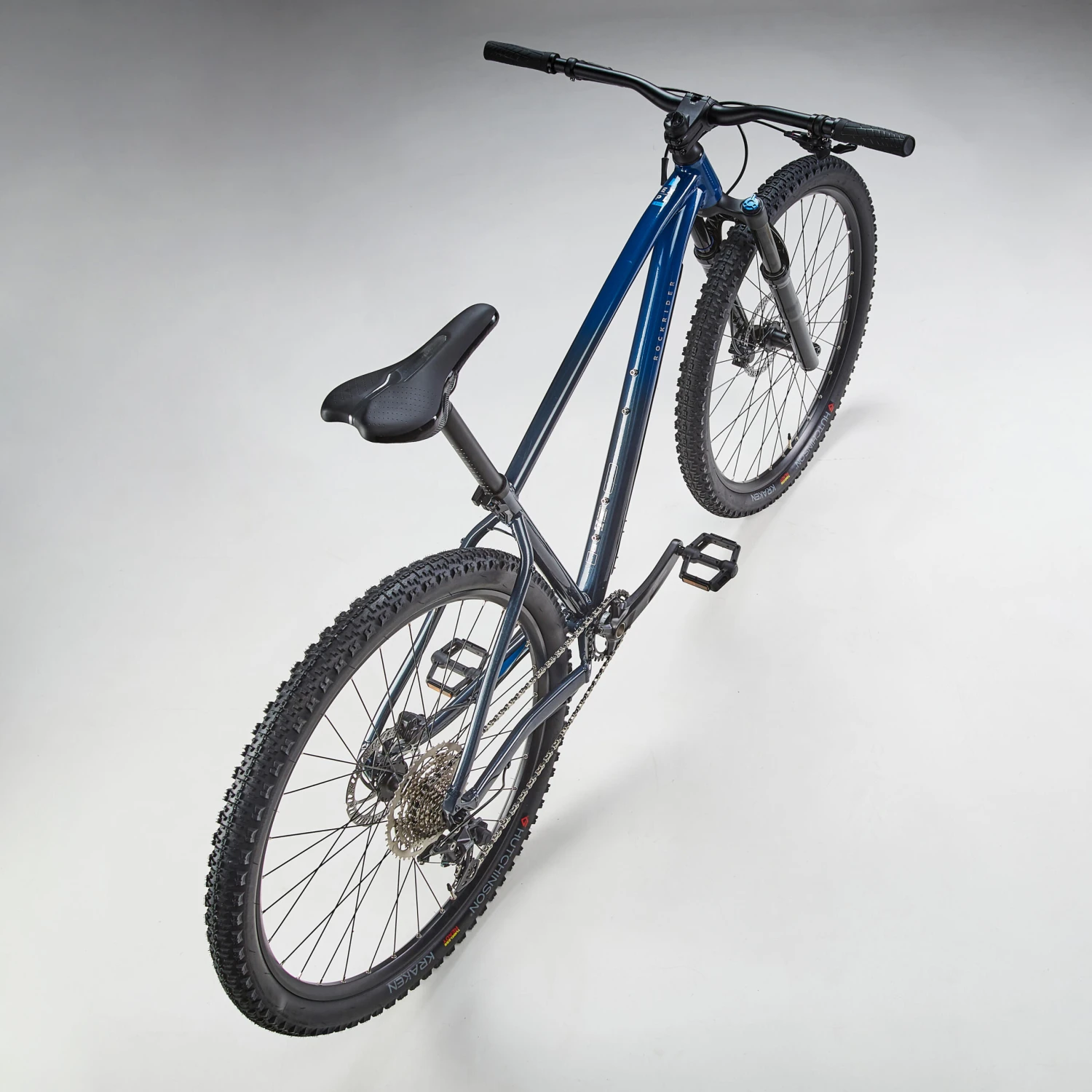

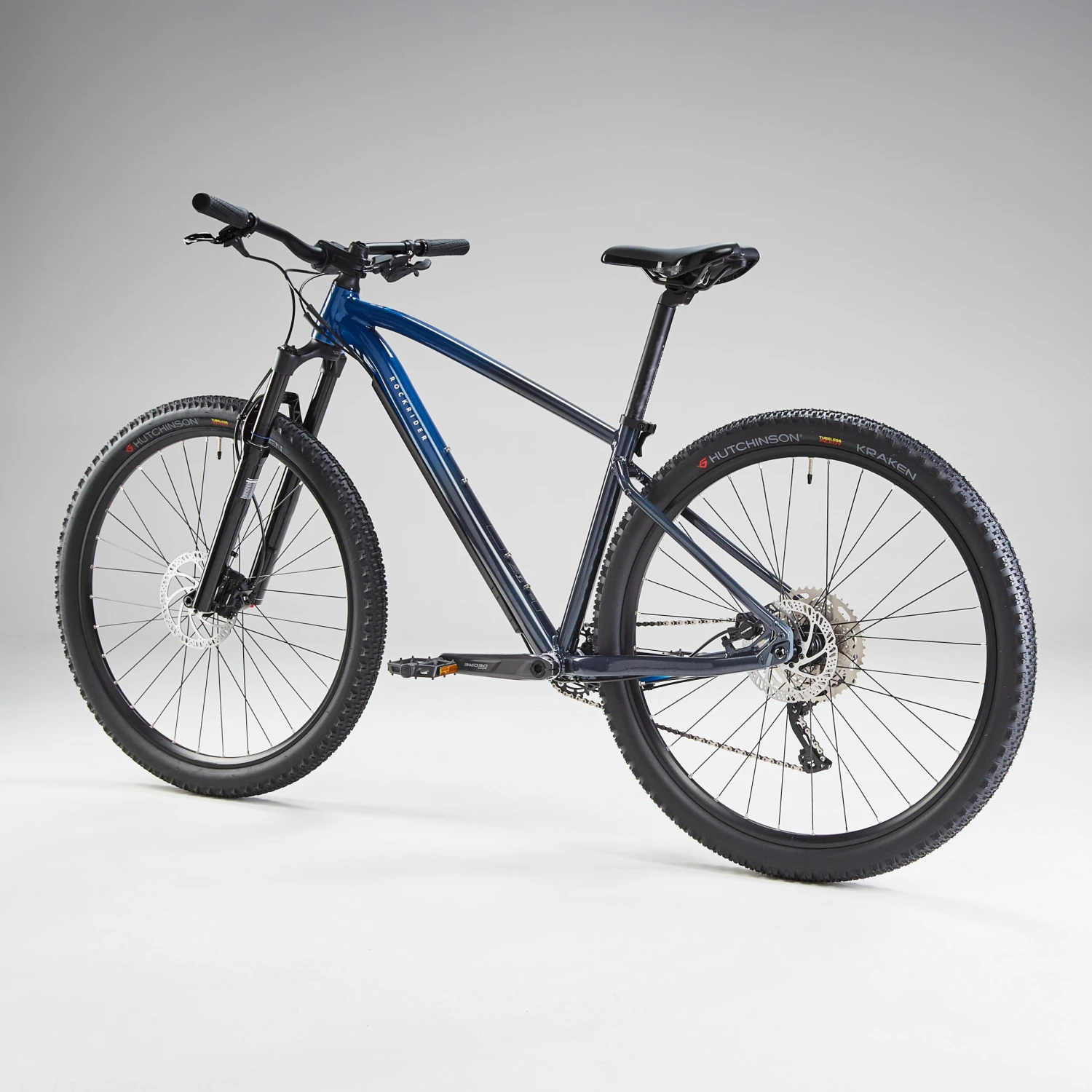

Rockrider 29″ Touring Mountain Bike Explore 540

This 29″ mountain bike is designed for rides lasting over 3 hours, all year round.Comfortable, stable and great control: fly over bumps with the Explore 540 mountain bike’s 29″ BOOST wheels (27.5″ in size S), Shimano drivetrain and AIR fork!

In a nutshell

Weight: 12.8 kg in size M (without pedals)
Frame material: Aluminium
Type: Hardtail
Wheel size: 29″ (M / L / XL), 27.5″ (S)
Fork travel: 120 mm
Drivetrain: 1×10
Brakes: Hydraulic
Seat post: Aluminium
Frame, stem and handlebar warranty: lifetime

Weight

S: 12.6 kg
M: 12,8 kg
L: 12,85 kg
XL: 12.95 kg

Net weight without pedals

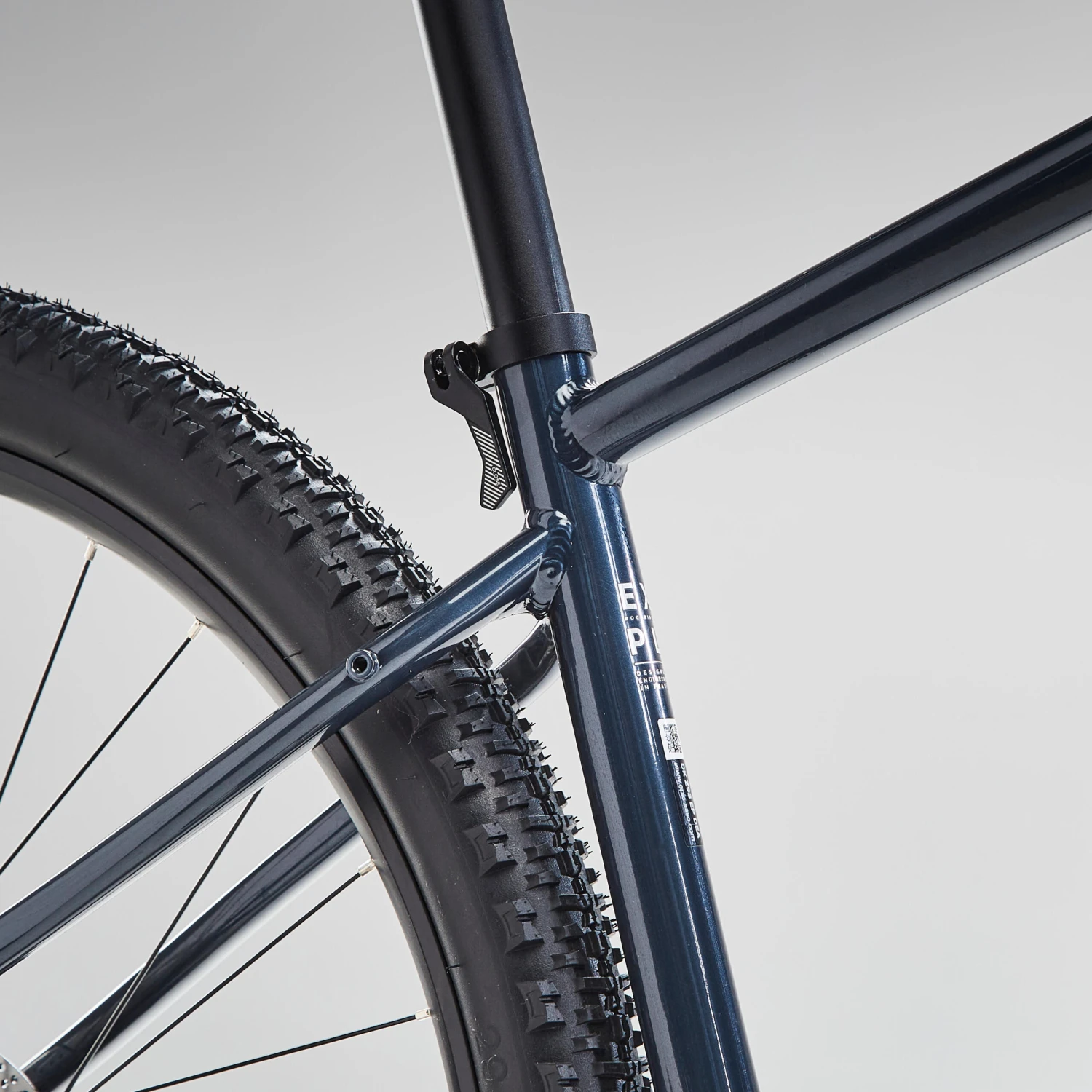

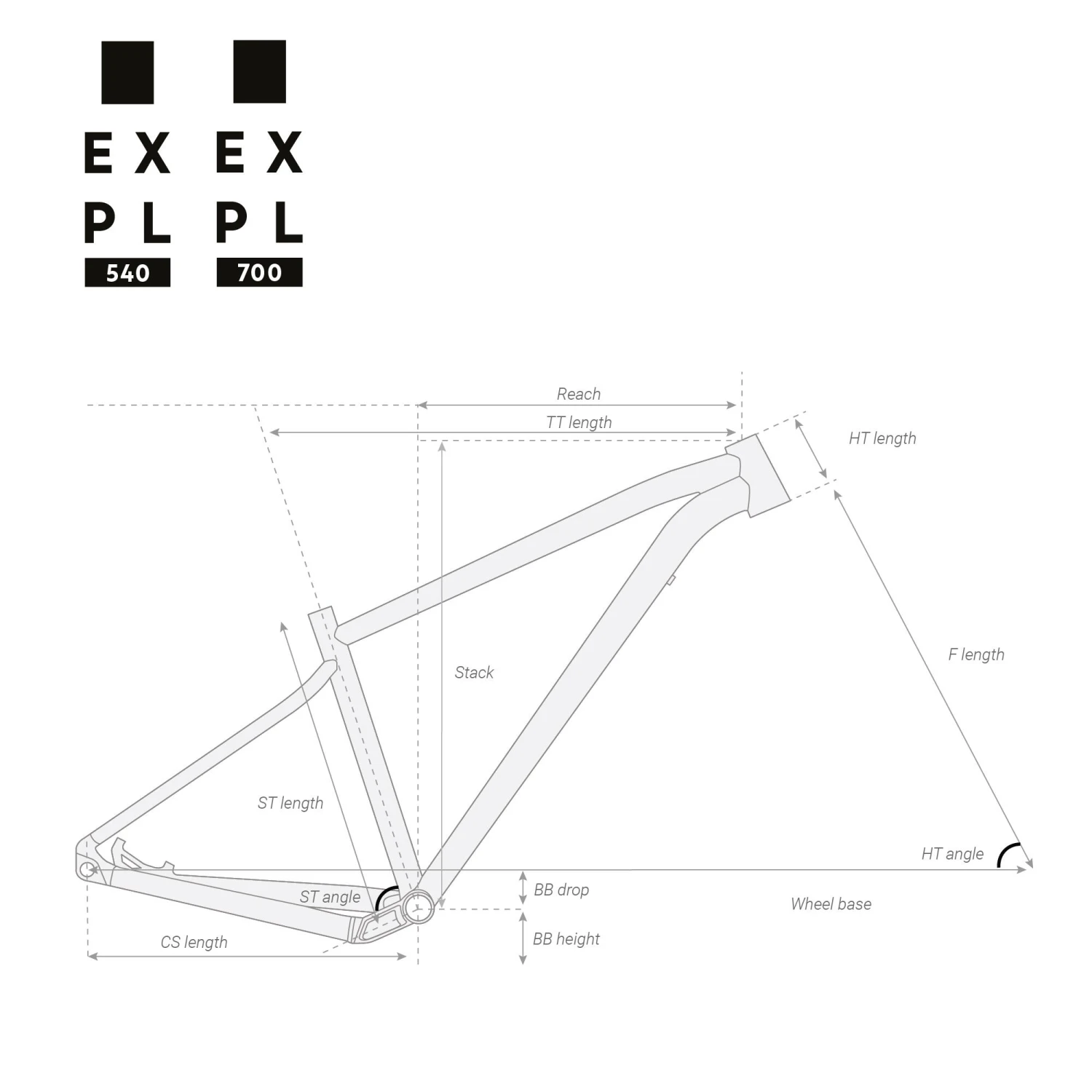

Frame

Composition: 6061 butted aluminium
148 mm x 12 mm Boost rear axle
Bolt through axle
73 mm threaded bottom bracket (BSA)
Protective cover for dropper seat post cable and housing
31.6 mm seat tube
Tapered head tube
2 bottle cage mounts (1 on size S) / Pannier rack mounts

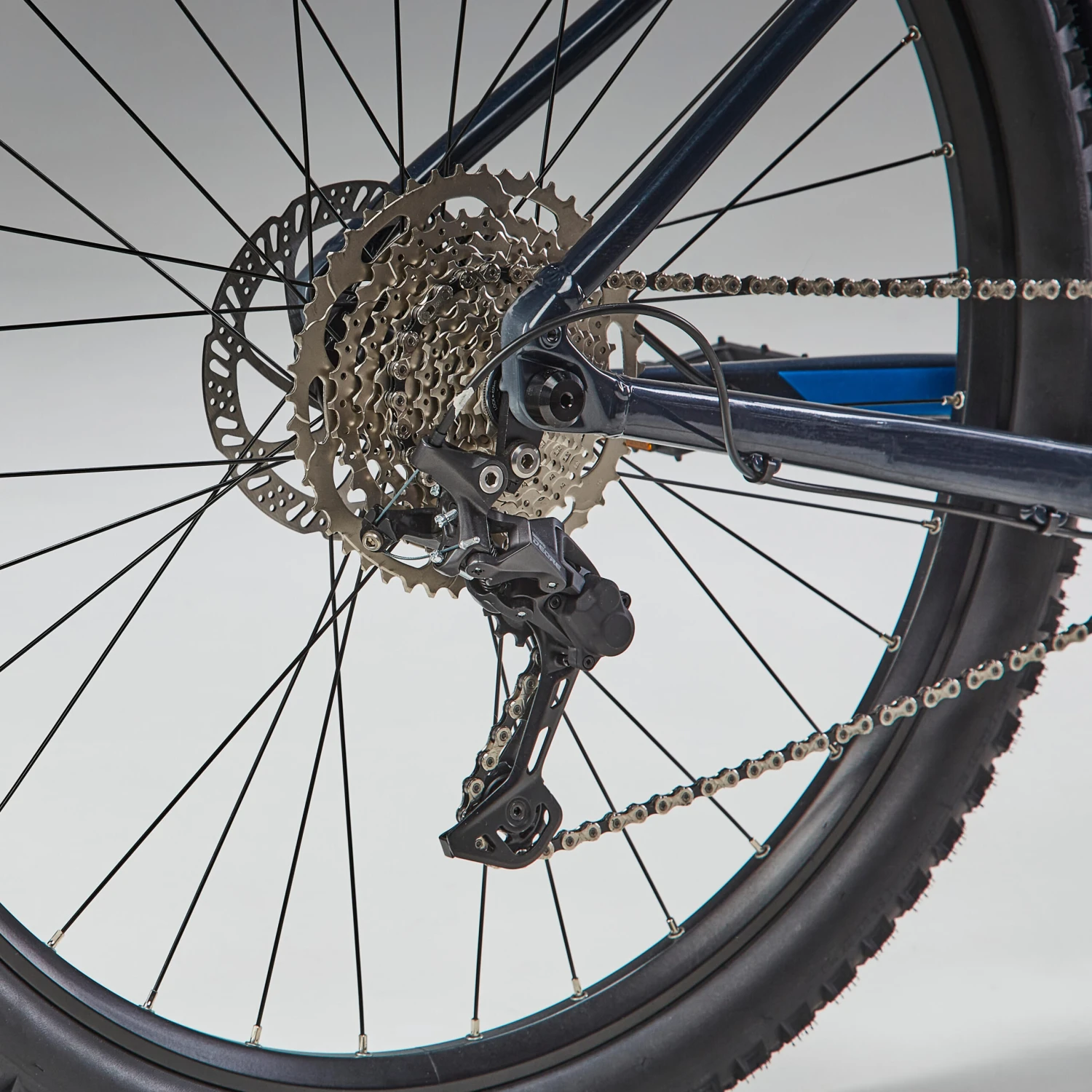

Drivetrain

Shimano Deore
30 T single chainring (compatible with 32 T)
175 mm crank
“Thru axle / external bearing” bottom bracket
10-speed shifter and rear derailleur
11-46 cassette

KMC X10 chain

Suspension

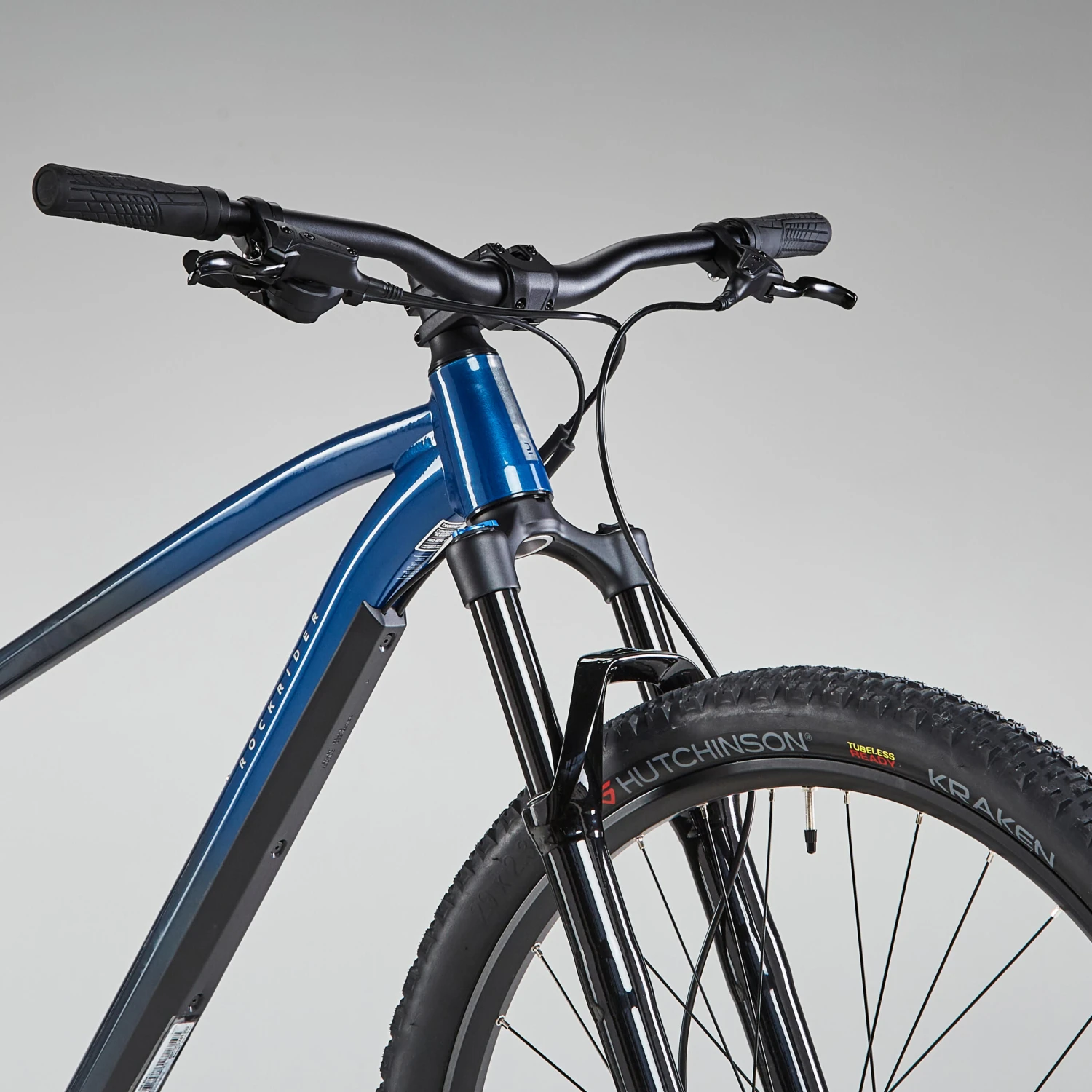

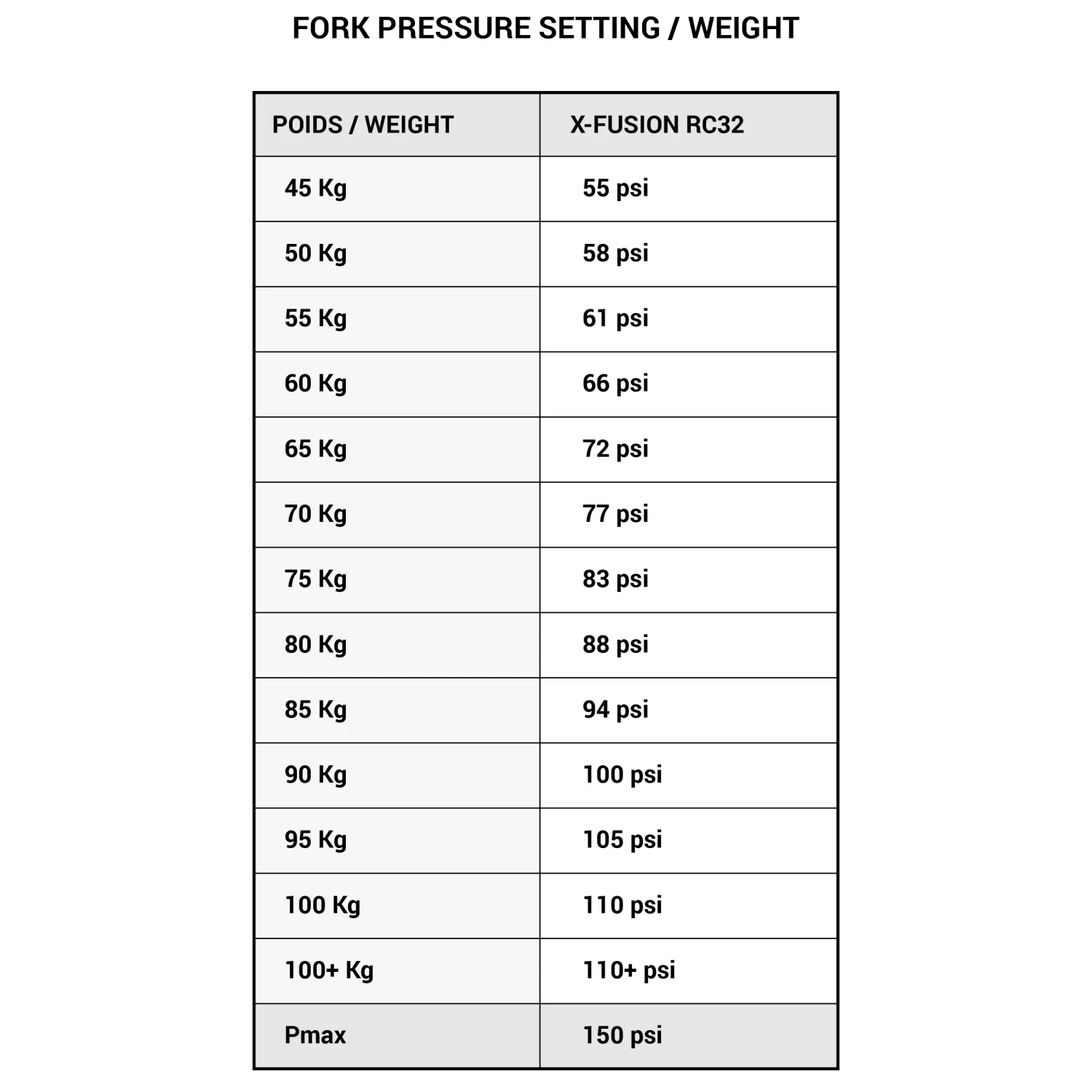

RC32 X-Fusion fork
AIR fork
120 mm travel
Stanchion diameter: 32 mm
6-sided through-axle bolt
15 x 110 mm Boost format
Turnkey lockout on the fork

Wheels

29″ (M / L / XL), 27.5″ (S)
Tubeless ready rims, Presta valve
23 mm inner width (28 mm outer)
32 spokes
Thru axle / Boost format hub
6-bolt disc
Shimano/Sram freehub
Sealed bearings

Brakes

Hydraulic disc brakes
Tektro TK-M276
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm
Adjustable reach: Yes

Riding position

Handlebar: Rockrider Sport
Material: Aluminium
Width: 740 mm (M / L / XL), 700 mm (S)

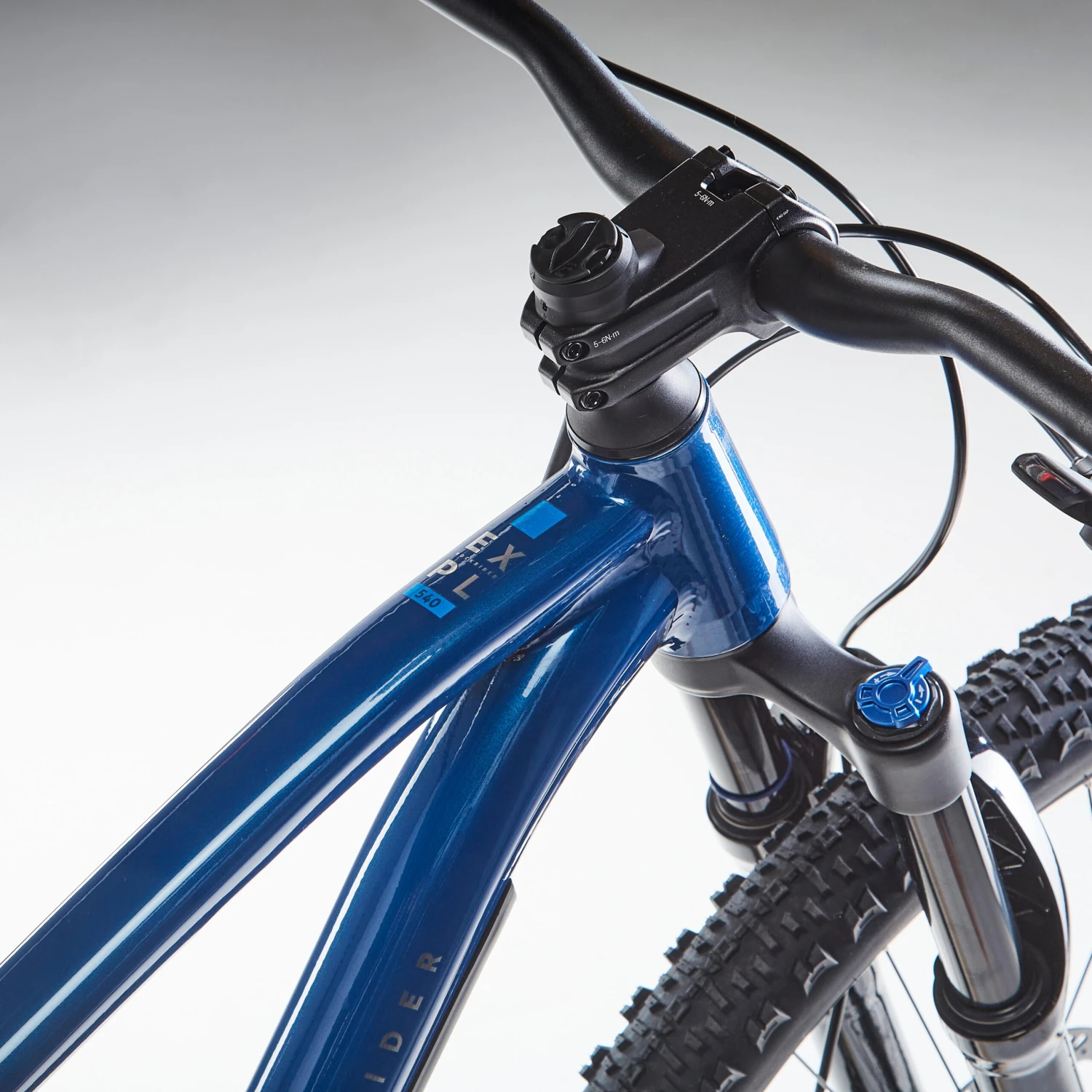

Stem: Rockrider
Material: Aluminium
Size: 60 mm
4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm

Compatible with Garmin, Mio or Bryton bike computer / GPS brackets

Grips: Rockrider Ergonomic

Saddle / Seat post

Rockrider Ergofit PRO saddle

Rockrider Sport seat post
Material: Aluminium
Diameter: 31.6 mm
Length: 400 mm (S / M / L), 450 mm (XL)
With tool holder (4 mm and 6 mm Allen keys included)

Compatible with dropper posts

Tyres

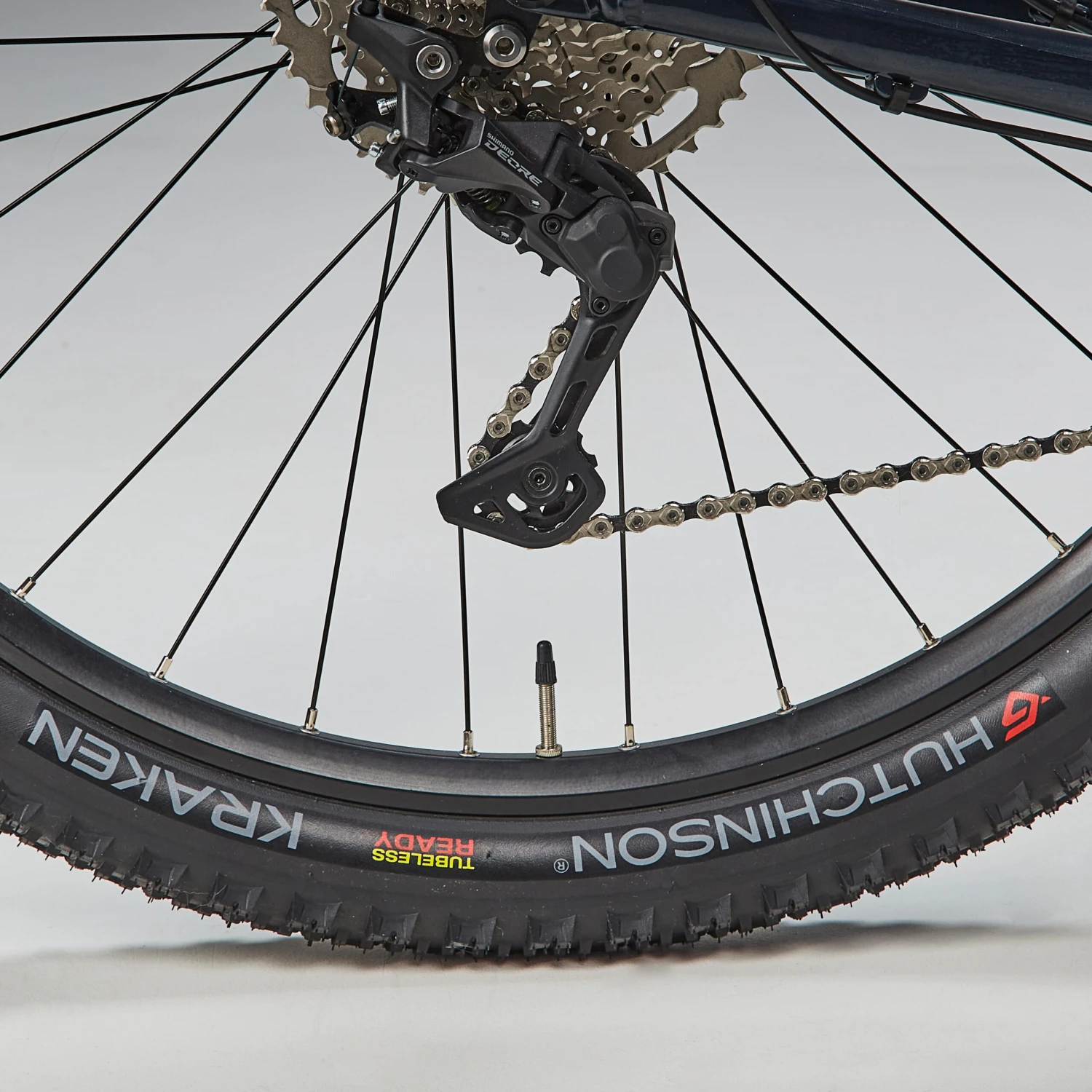

Hutchinson Kraken
29″x2.3″ (M / L / XL), 27.5″x2.3″ (S)
Carcass: 60 TPI
Tubeless ready

Pedals

Rockrider 520 Grip resin flat pedals.

Accessories included

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
