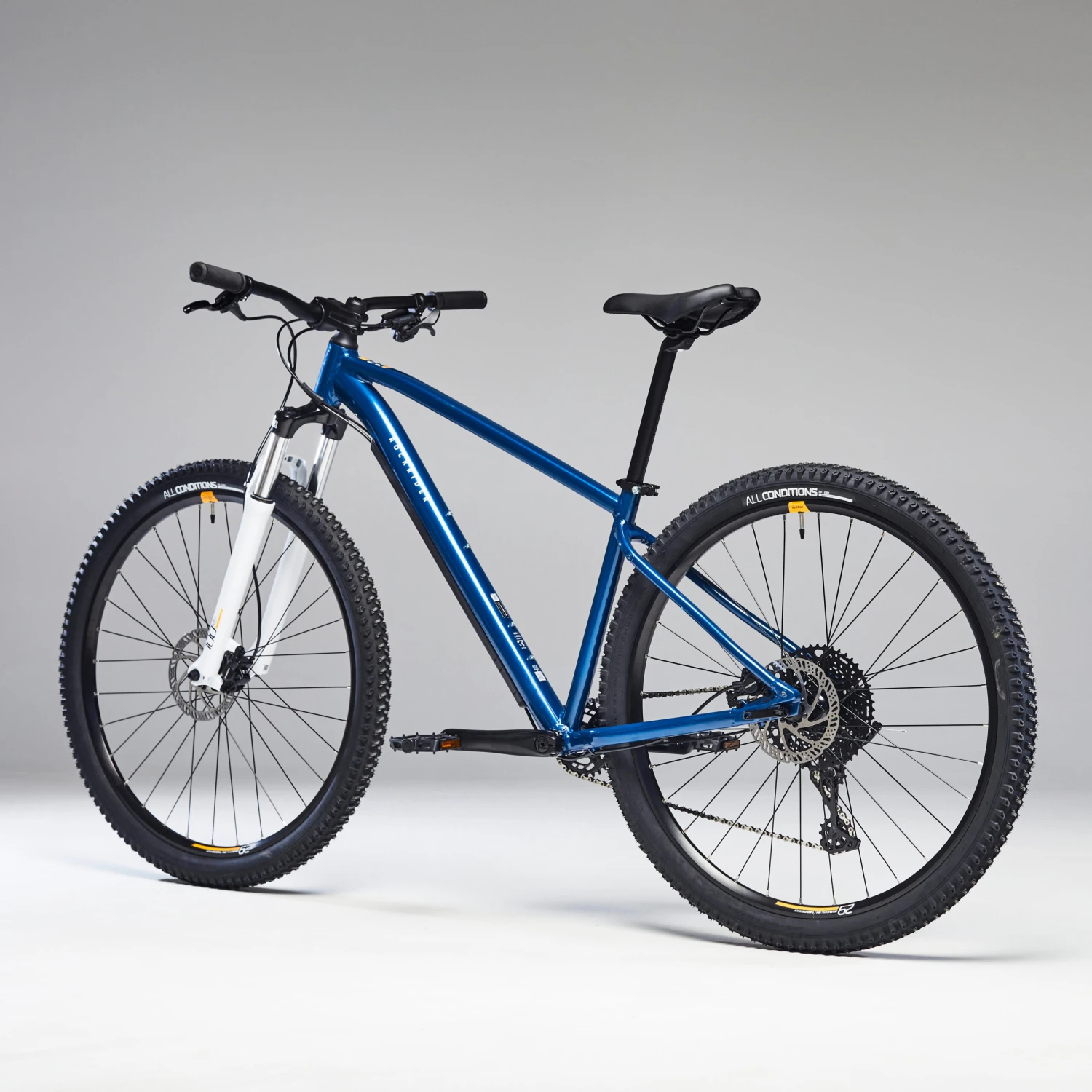

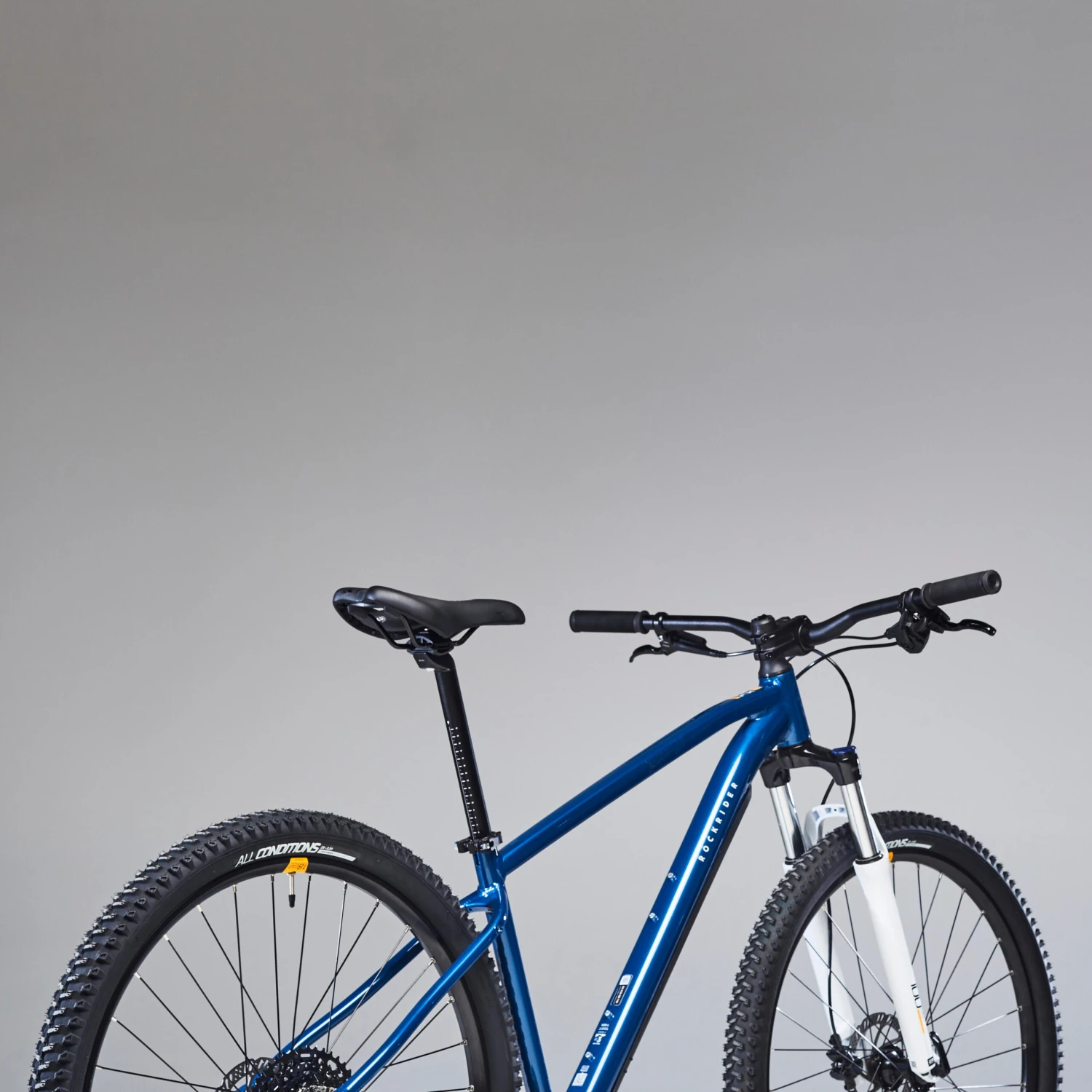

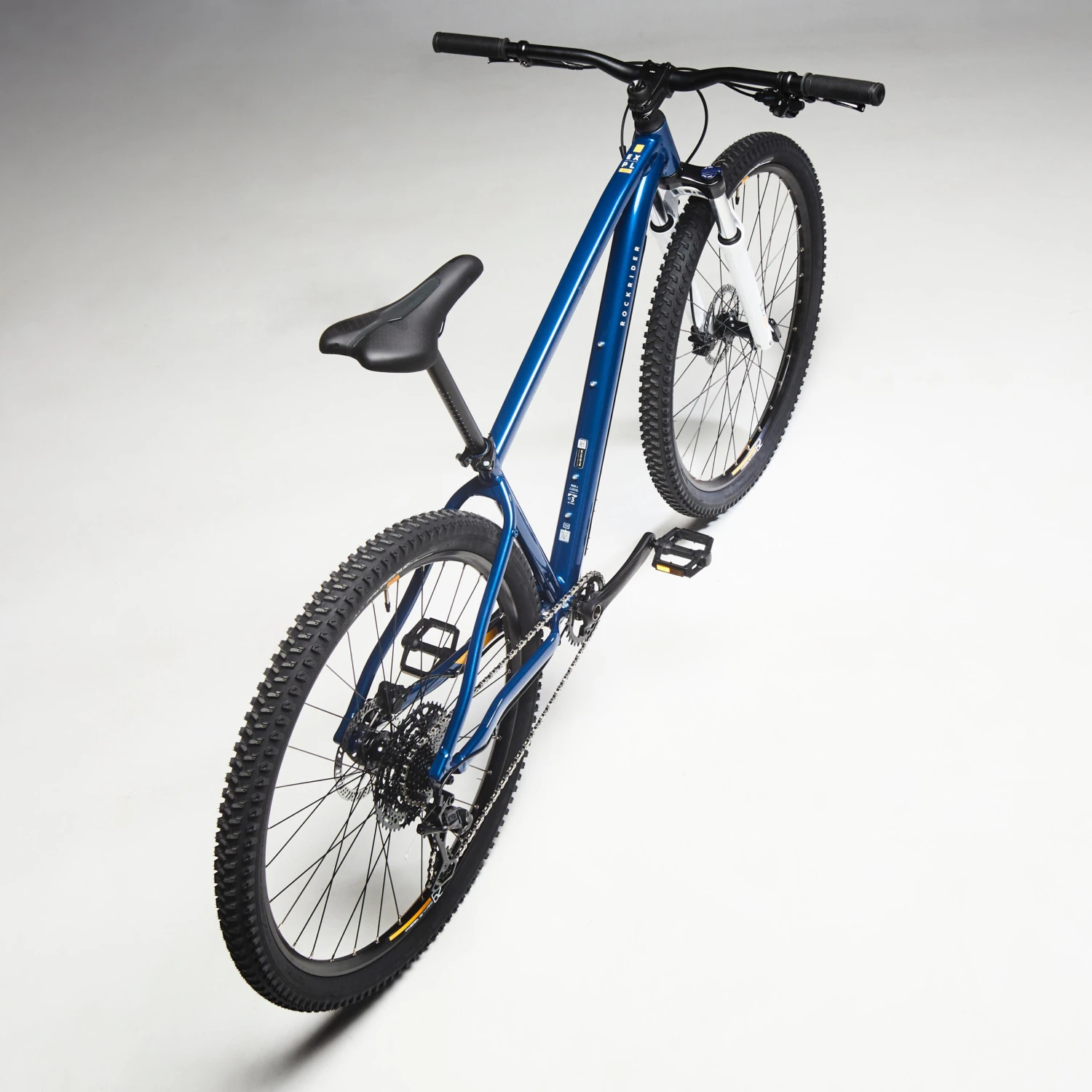

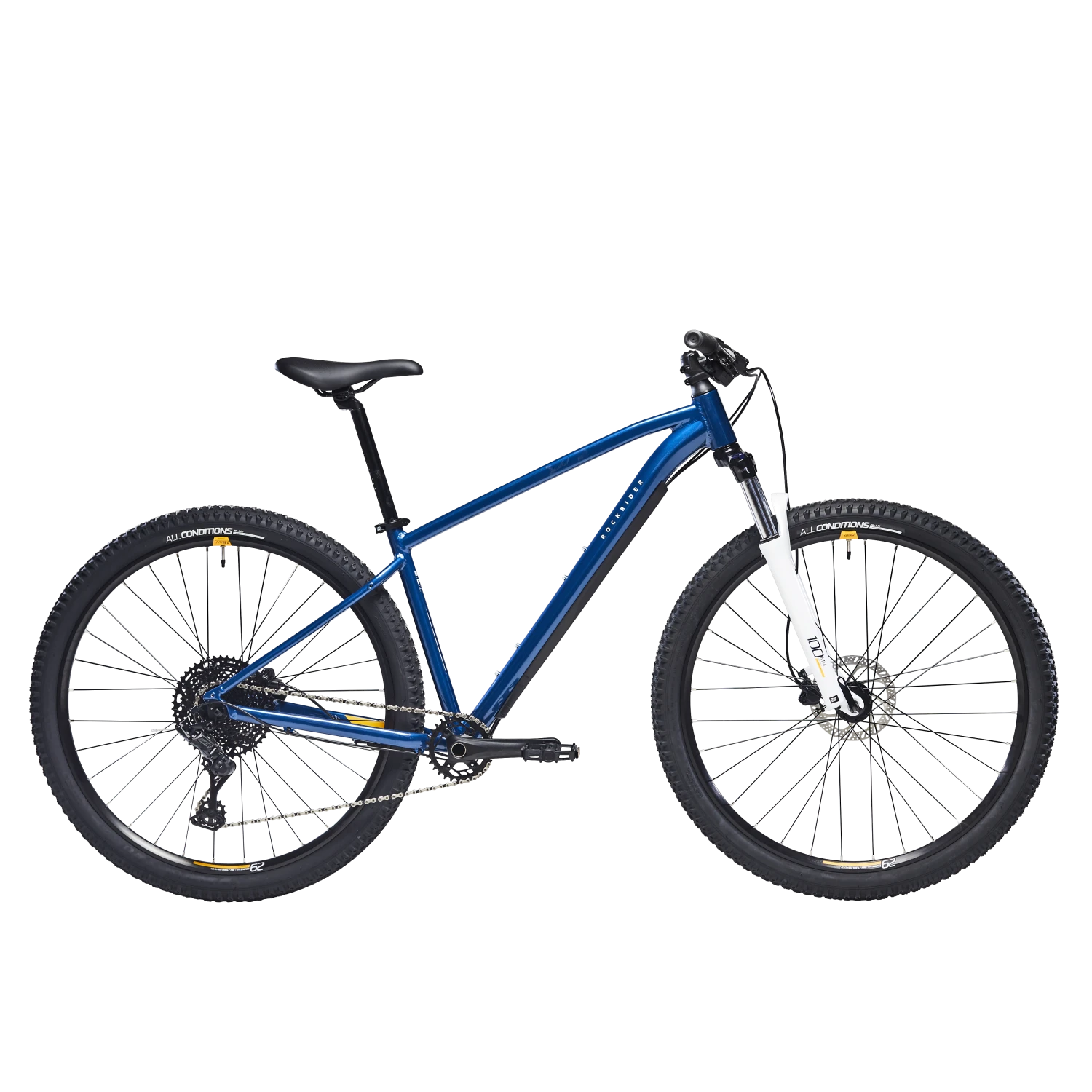

Rockrider 29″ Touring Mountain Bike Explore 520

This mountain bike is designed for regular bike touring.The fork, equipped with a hydraulic cartridge, improves sensitivity to small impacts when mountain biking

In a nutshell

Weight: 14.5 kg in size M (without pedals)
Frame material: Aluminium
Type: Hardtail
Wheel size: 29″ (M / L / XL), 27.5″ (S)
Fork travel: 100 mm
Drivetrain: 1×10
Brakes: Hydraulic
Seat post: Aluminium
Frame, stem and handlebar warranty: lifetime

Weight

S: 14.15 kg
M: 14.5 kg
L: 14.6 kg
XL: 14.7 kg

Net weight without pedals

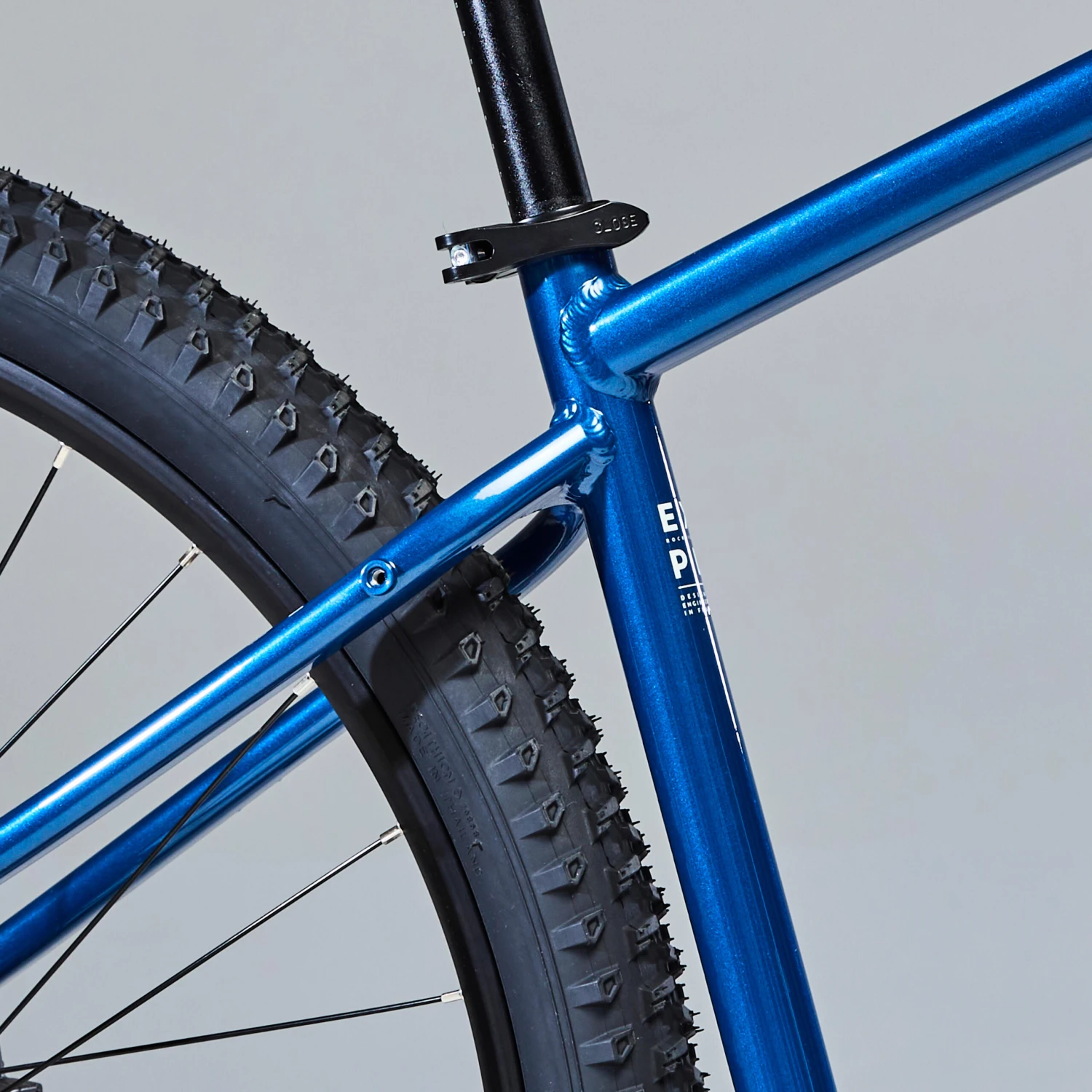

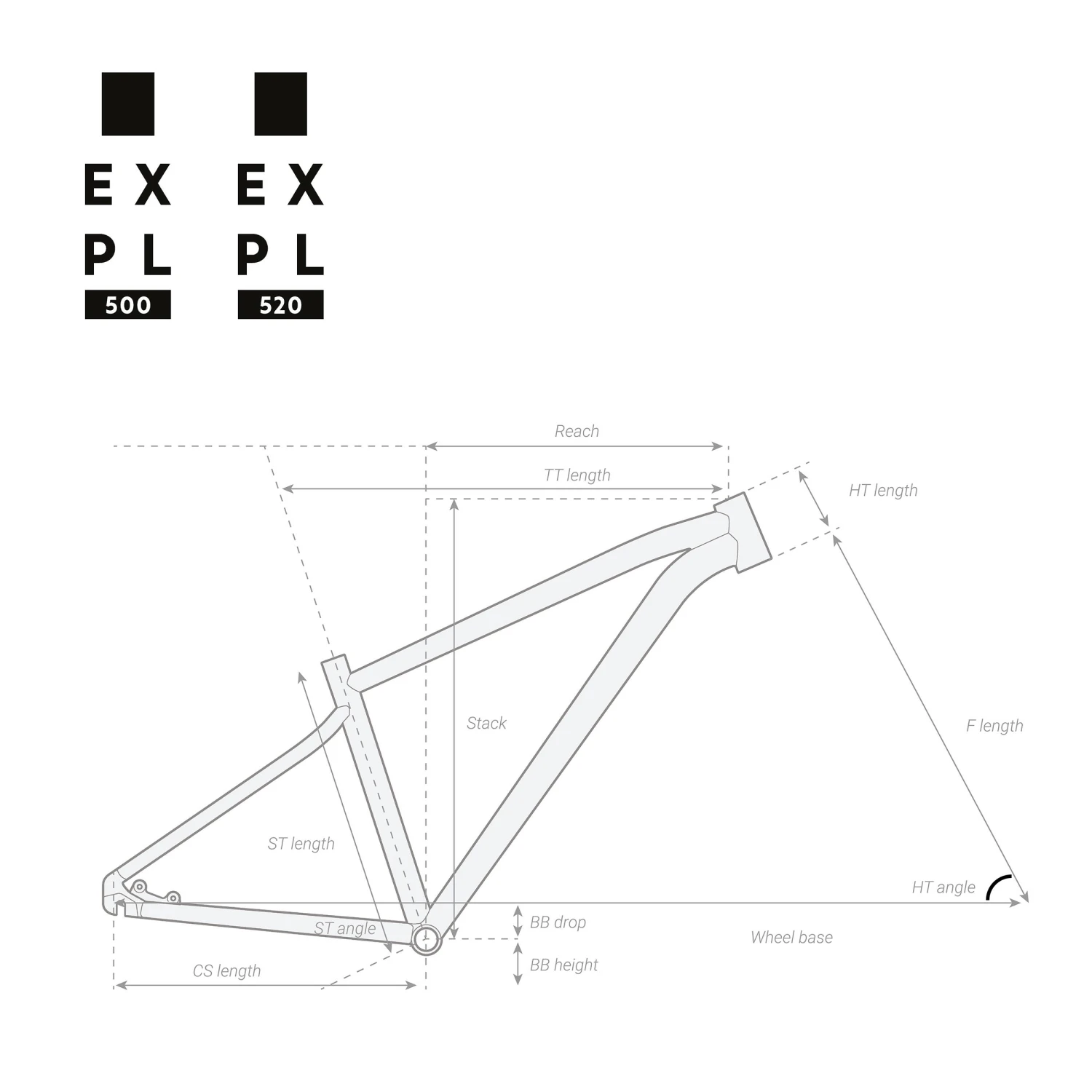

Frame

Composition: 6061 aluminium
135 mm x 9 mm rear axle
QR spindle
73 mm threaded bottom bracket (BSA)
Protective cover for housing
27.2 mm seat tube
Straight head tube
2 bottle cage mounts (1 on size S) / Pannier rack mounts

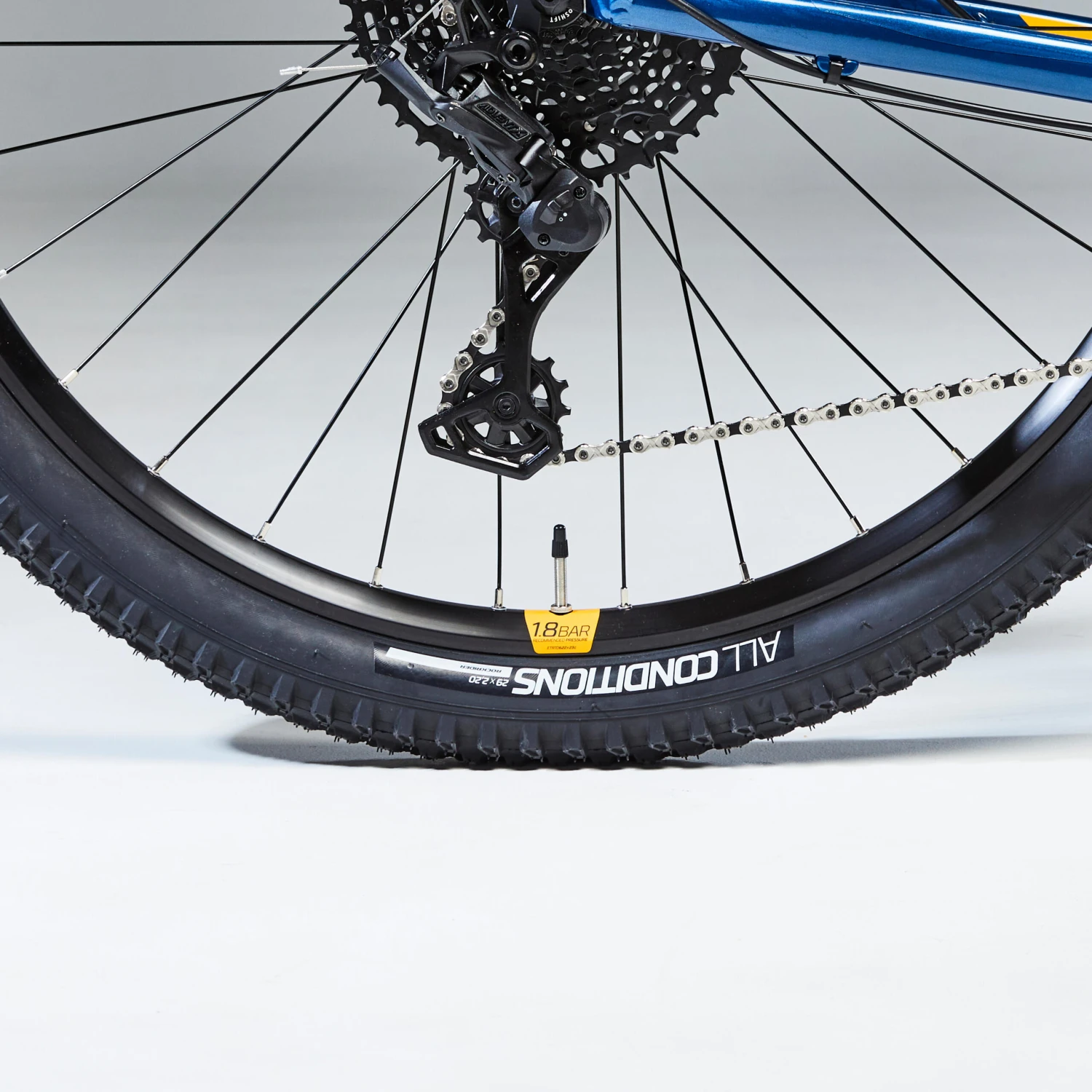

Drivetrain

30 T single chainring (compatible with 32 T)
170 mm crank
“Thru axle / external bearing” bottom bracket

Microshift AdventX
10-speed shifter and rear derailleur
11-48 cassette

KMC X10 chain

Suspension

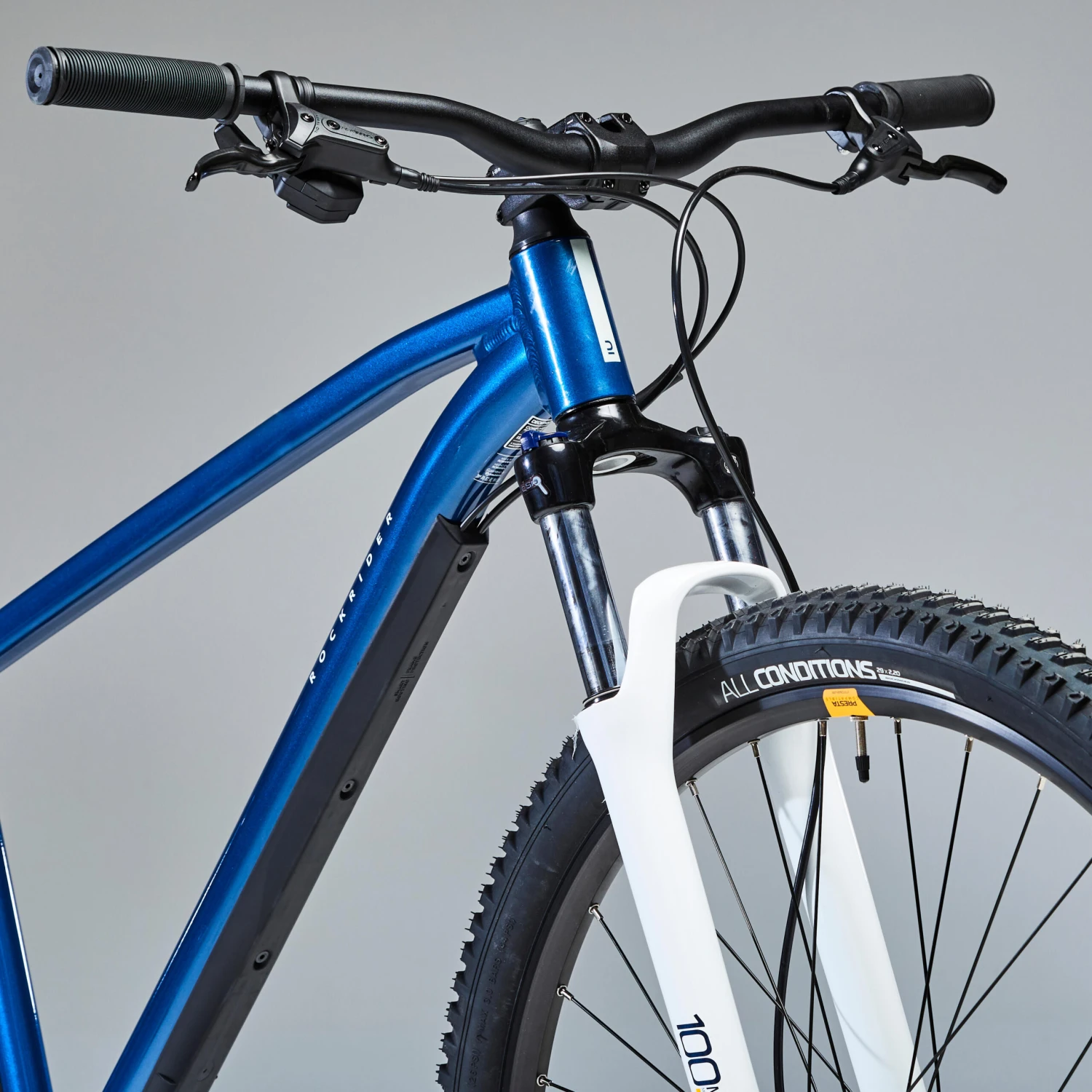

Suntour XCM fork with alu steerer tube
Coil spring with hydraulic cartridge
100 mm travel
30 mm diameter stanchion
QR axle
9 x 100 mm
Turnkey lockout on the fork

Wheels

29″ (M / L / XL), 27.5″ (S)
Tubeless ready rims, Presta valve
23 mm inner width (28 mm outer)
32 spokes (M / L / XL), 28 spokes (S)
6-bolt disc
Shimano/Sram freehub

Brakes

Hydraulic disc brakes
Tektro TK-M276
Number of pistons: 2
Front disc: 160 mm
Rear disc: 160 mm
Adjustable reach: Yes

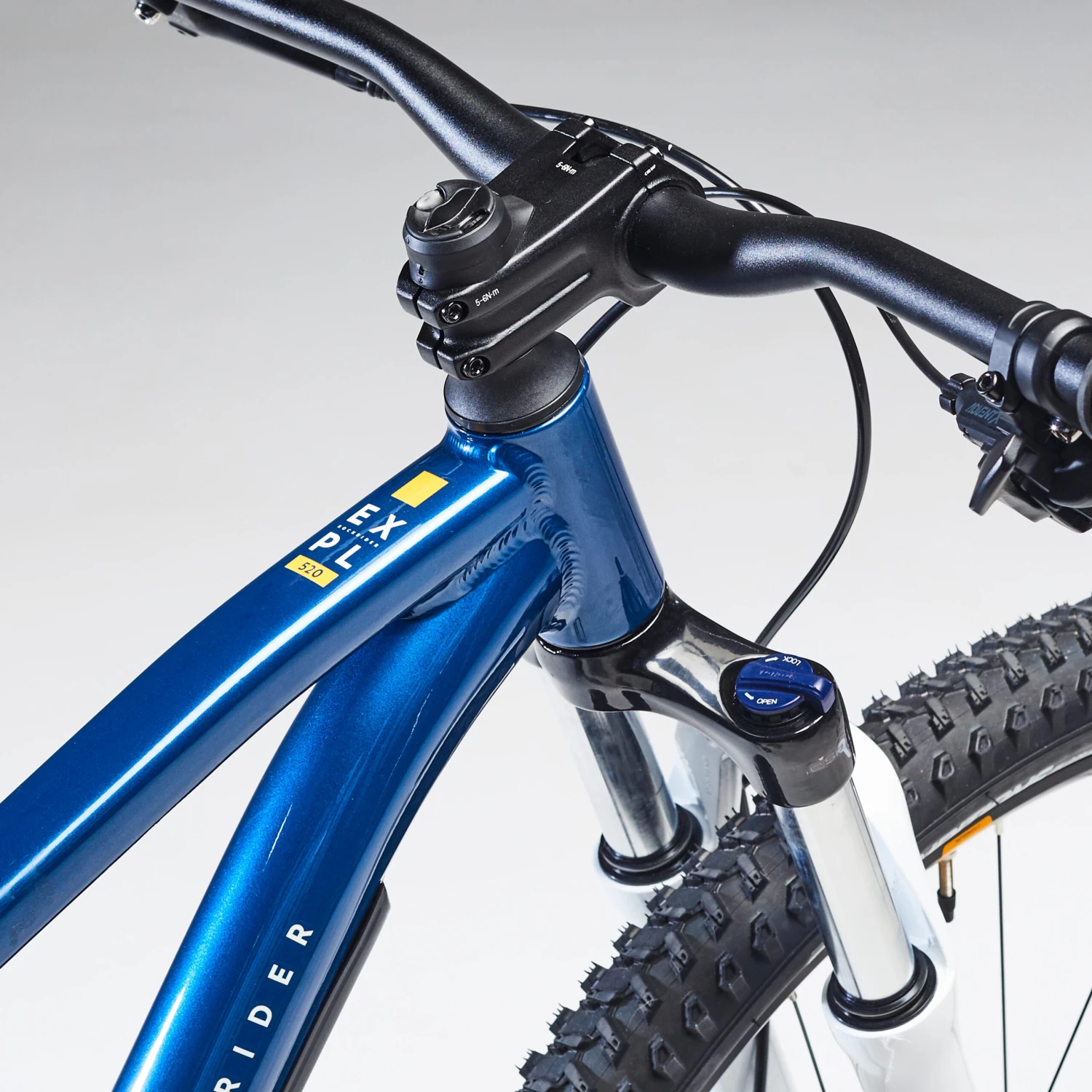

Riding position

Handlebar: Rockrider Sport
Material: Aluminium
Width: 740 mm (M / L / XL), 700 mm (S)

Stem: Rockrider
Material: Aluminium
Size: 60 mm
4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm

Compatible with Garmin, Mio or Bryton bike computer / GPS brackets

Grips: Rockrider SPORT

Saddle and seat post

Rockrider Ergofit EVO saddle

Rockrider Sport seat post
Material: Aluminium
Diameter: 27.2 mm
Length: 350 mm (S / M), 400 mm (L), 450 mm (XL)

Tyre

Rockrider All Conditions
29″x2.2″ (M / L / XL), 27.5″x2.2″ (S)
Carcass: 60 TPI

Pedals

Rockrider 520 Grip resin flat pedals

Accessories included

Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
