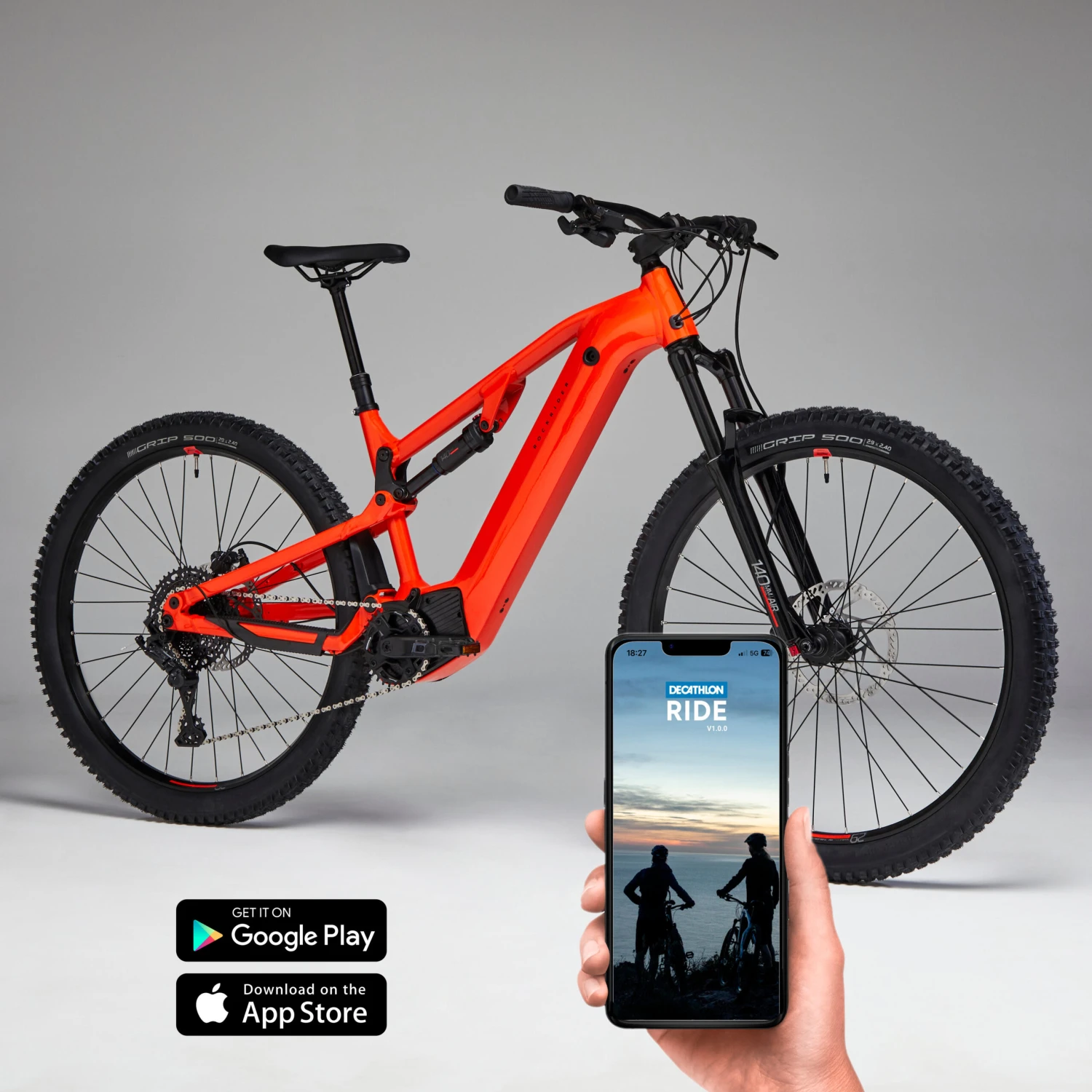

Rockrider 29″ Full Suspension Electric Mountain Bike E-Expl 520 S

This electric mountain bike (EAMTB) is designed for all-terrain rides on rough trails with a moderate amount of climbing (hilly and slightly mountainous routes).This is a very versatile and connected bike. Safe and easy to handle at the same time: this bike and mobile app make trails and gradients more accessible!

In a nutshell

Weight: 24.4 kg (in size M, without pedals)
Mid-drive motor: Brose T aluminium 70 Nm
Battery: 500 Wh
Connectivity: Decathlon Ride mobile application
Frame material: Aluminium
Type: Full suspension
Wheel size: 29″
Fork and shock travel: 140 mm / 140 mm
Drive train: 1×10
Brakes: Hydraulic
Seat post: Telescoping
Frame, handlebar and stem warranty: lifetime

Motor

BROSE DRIVE T Aluminium motor
Mid-drive position
70 Nm torque
Torque sensor
Max assistance: 320%
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h

Battery

Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 500 Wh
With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles).
Compatible with a 360 Wh battery extension, sold separately (up to 44 additional km, at a low gradient)

Display

ERGO 900
TFT colour screen,
5 assistance modes: 1,2,3,4
Pedestrian mode assists with walking.

Bluetooth connected.

The control panel is installed on the left side and tilted downwards for better ergonomics when changing modes, and for maximum protection in case of falls and flipping over the bike.

Connectivity

Download the Decathlon Ride app and unleash your bike’s full potential!
The Decathlon Ride application is compatible:
– For Apple devices: iOS 8 and later versions
– For Android telephones: Android 7 and later versions.

Weight

S: 24.3 kg
M: 24.4 kg
L: 24.5 kg
XL: 24.6 kg

Net weight without pedals

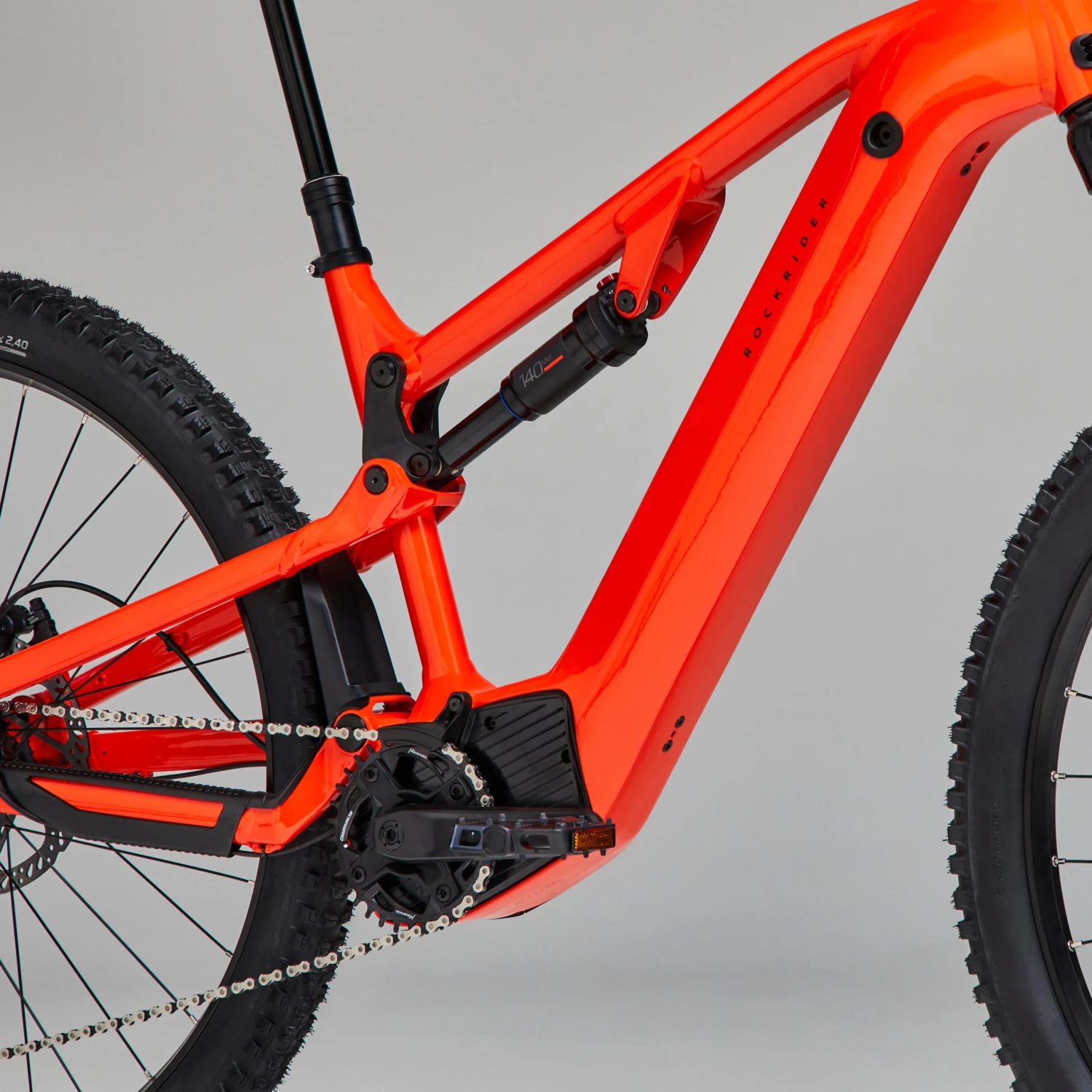

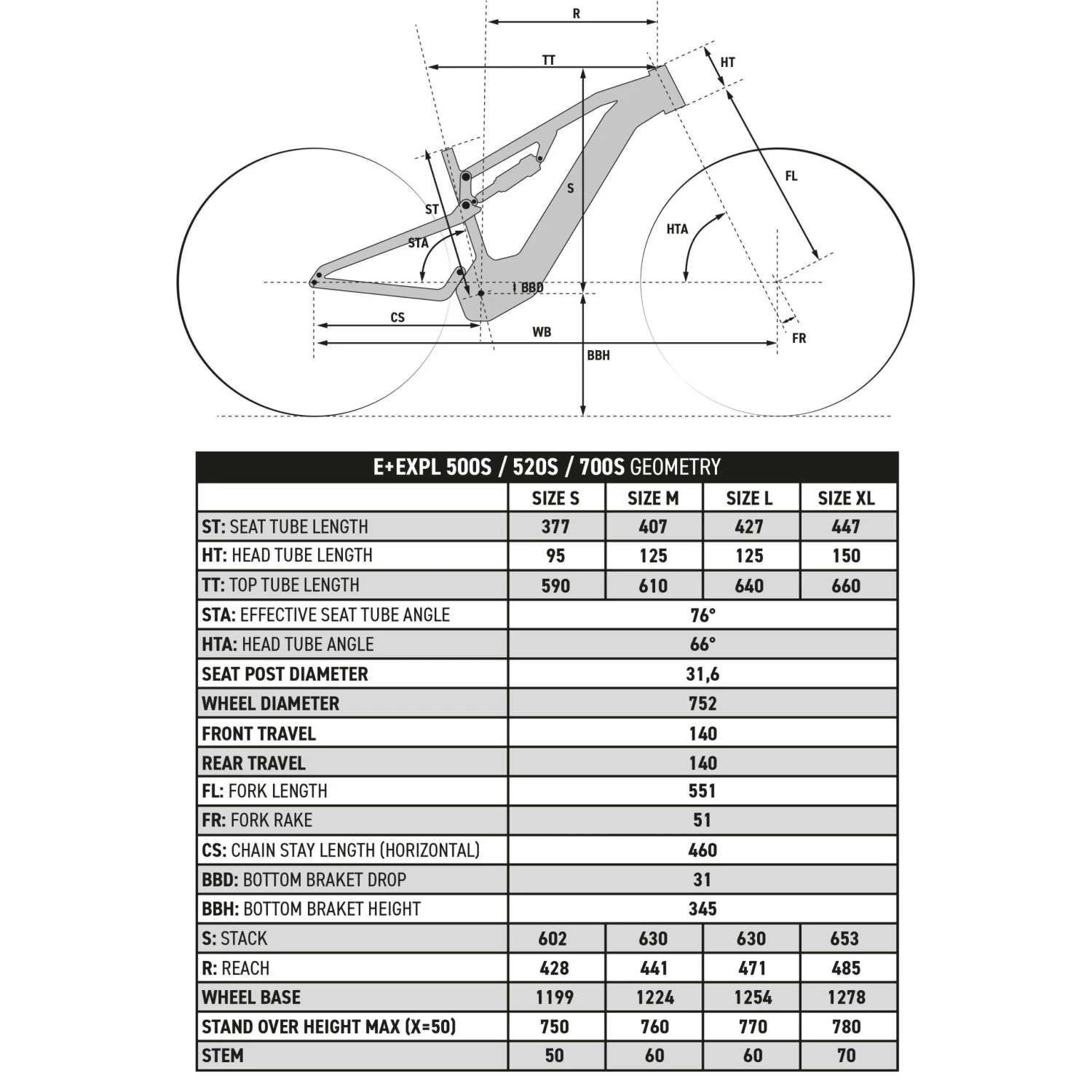

Frame

6061 aluminium suspended frame
Single pivot with tie rod
Max rear travel 140 mm
Fully built-in battery, removes from the side
Conical steering socket
31.6 mm diameter seat tube
Mount for 1 bottle cage

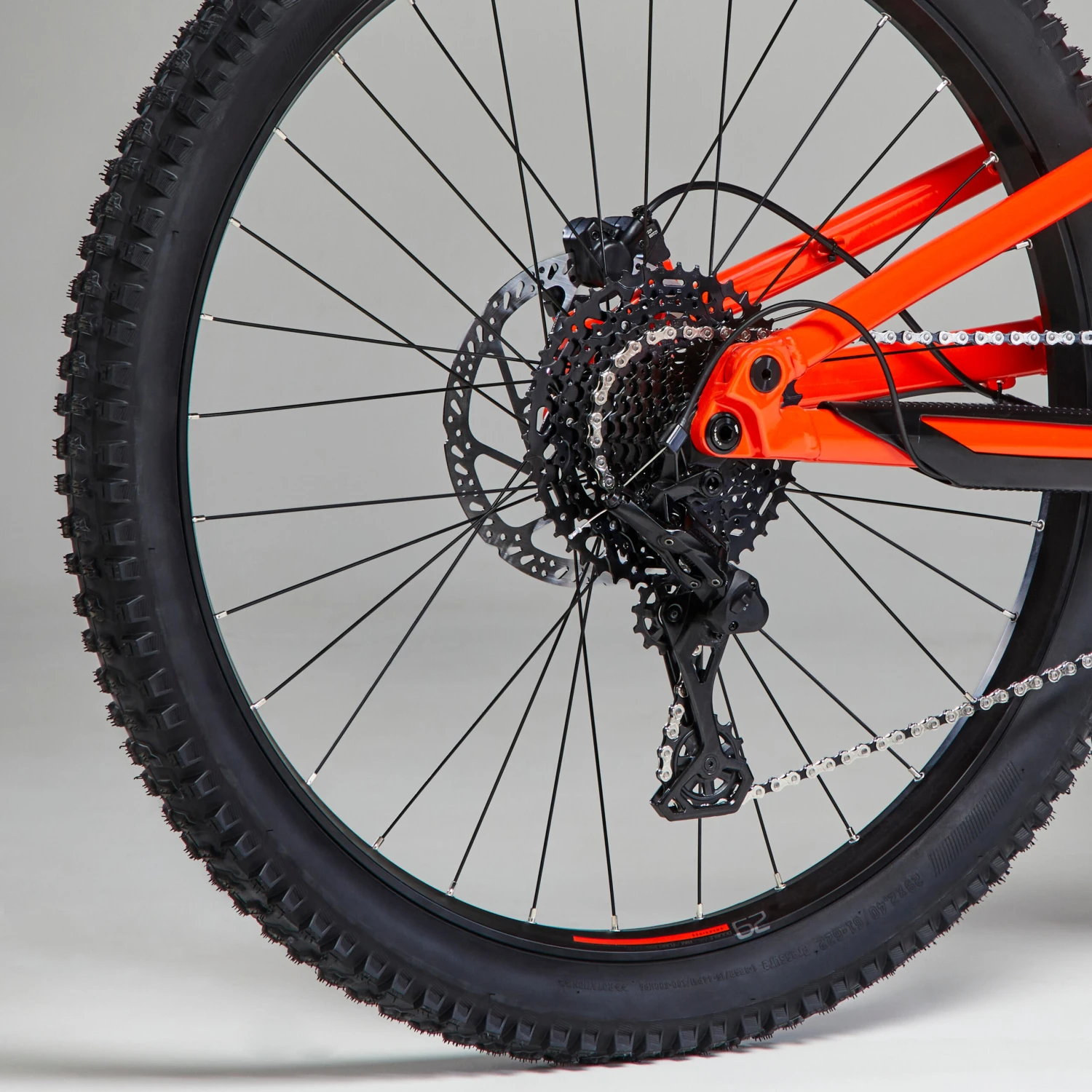

Drive train

Microshift ADVENT X
Chainring: 34 teeth with chain guide
Rear derailleur: Microshift ADVENT X
Crank: 170 mm
Right shifter: Microshift ADVENT X
Cassette: Microshift ADVENT X Series H 11-48 10-speed
Chain: KMC e10S

Suspension

X-Fusion McQueen R fork
Travel: 140 mm
Dampers: 34 mm
Axle: Thru axle
Format : 110 x 15 mm
Offset: 46 mm
Technology: Roughcut Air
Adjustments: Bounce, air pressure

X-Fusion PRO R shock
Dimensions: 210 x 55 mm
Mount: Standard

Wheels

Rockrider 29” 30c wheels

29″ size compatible with fat tyres: up to 2.6″
Internal width between hooks: 30 mm
32 spokes
Format: BOOST
Discs: 6 holes
Freewheel hub: HG
Sealed bearings
Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)

Brakes

Tektro M276 hydraulic disc brakes
Number of pistons: 2
Front disc: 203 mm
Rear disc: 203 mm
6-bolt mount

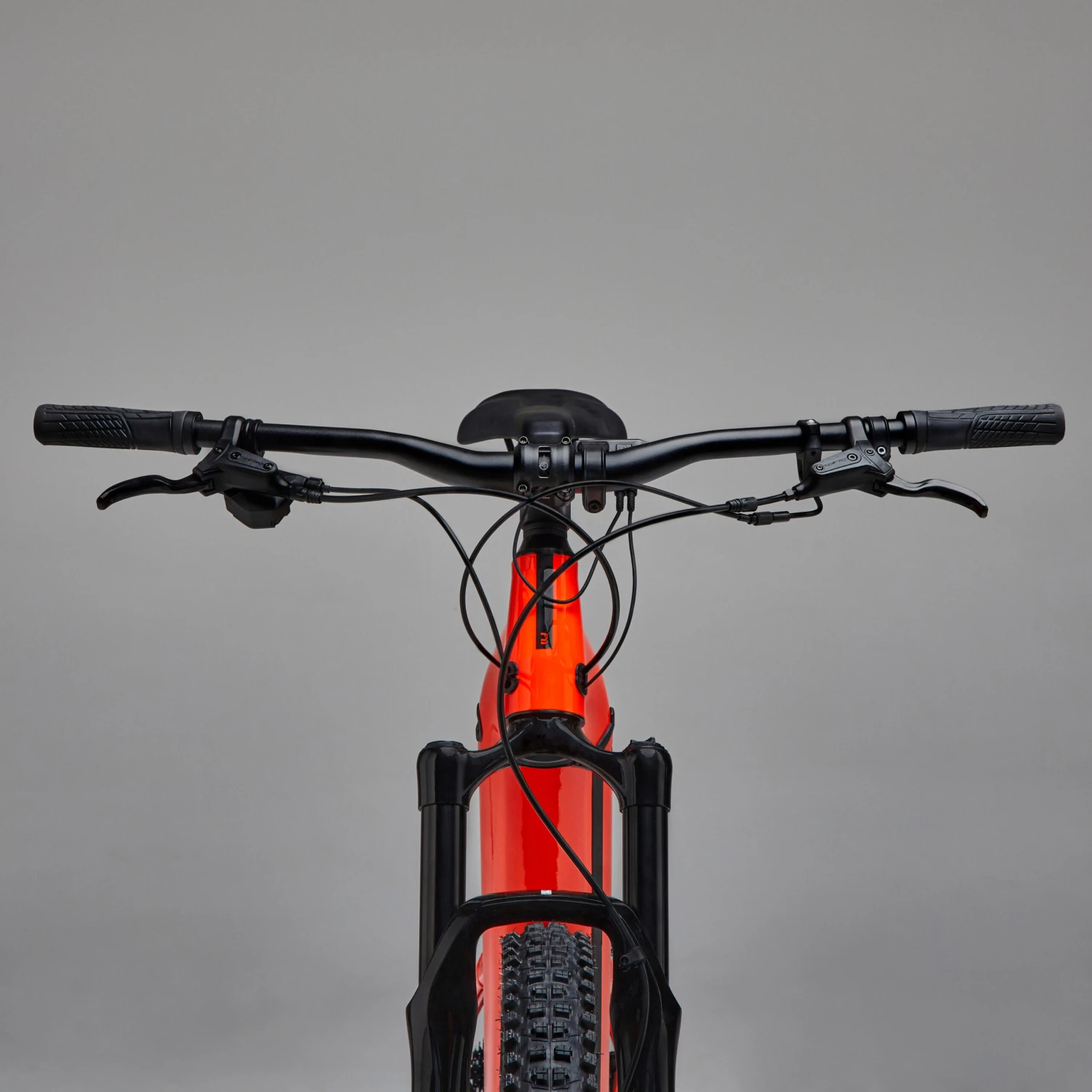

Riding position

Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°

Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)

Grips:
Rockrider Ergo Lock On

Headset
ZS 44/28.6 – 56/40

Saddle / Seat post

Saddle: Decathlon Core 60°
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (Ms/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter

Tyres

Rockrider Grip 500
29″ x 2.4″
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug

Pedals

Rockrider Flat Evo Resin

Accessories included

Your MTB comes with:
2A charger
bell,
lights,
wheel reflectors
and pedals.
