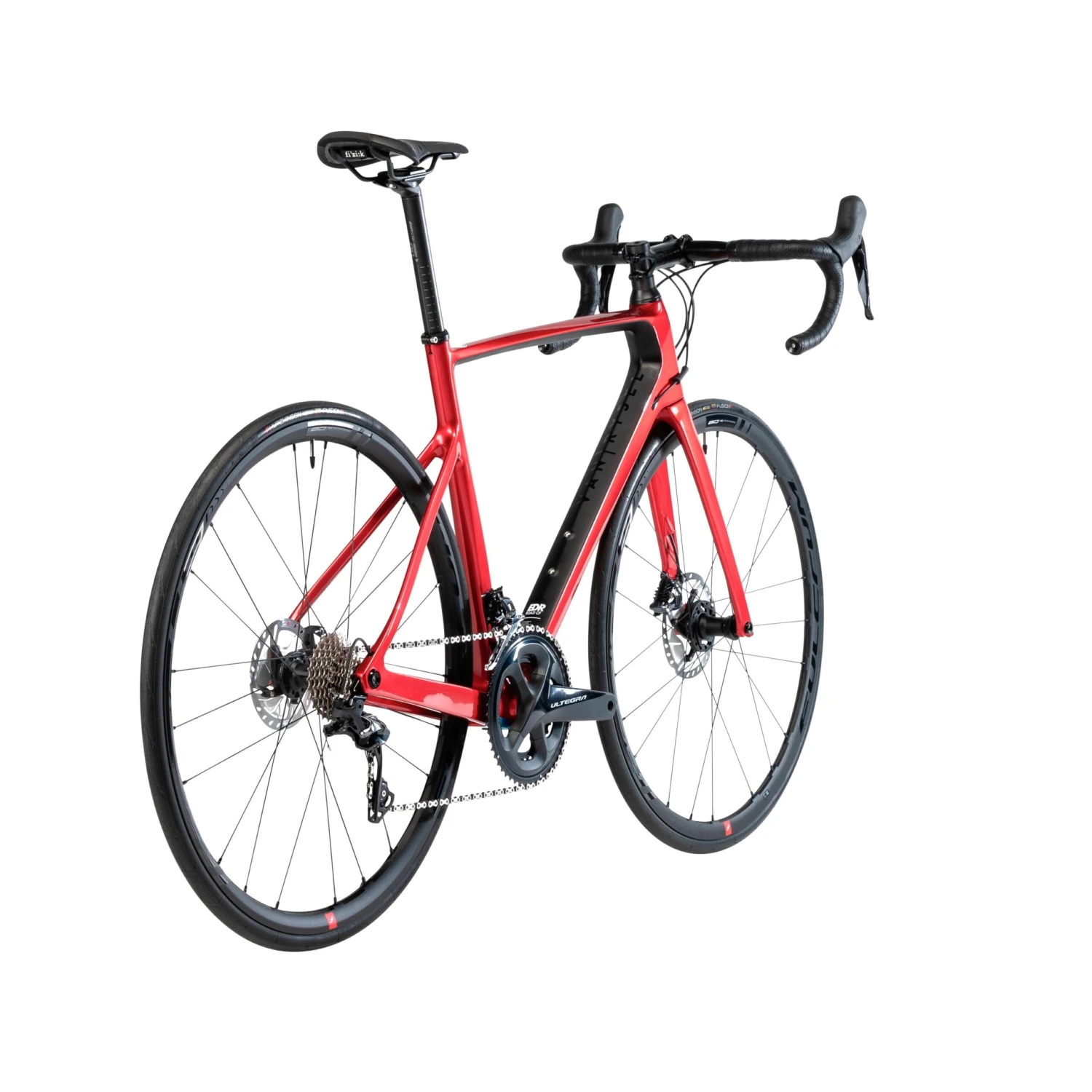

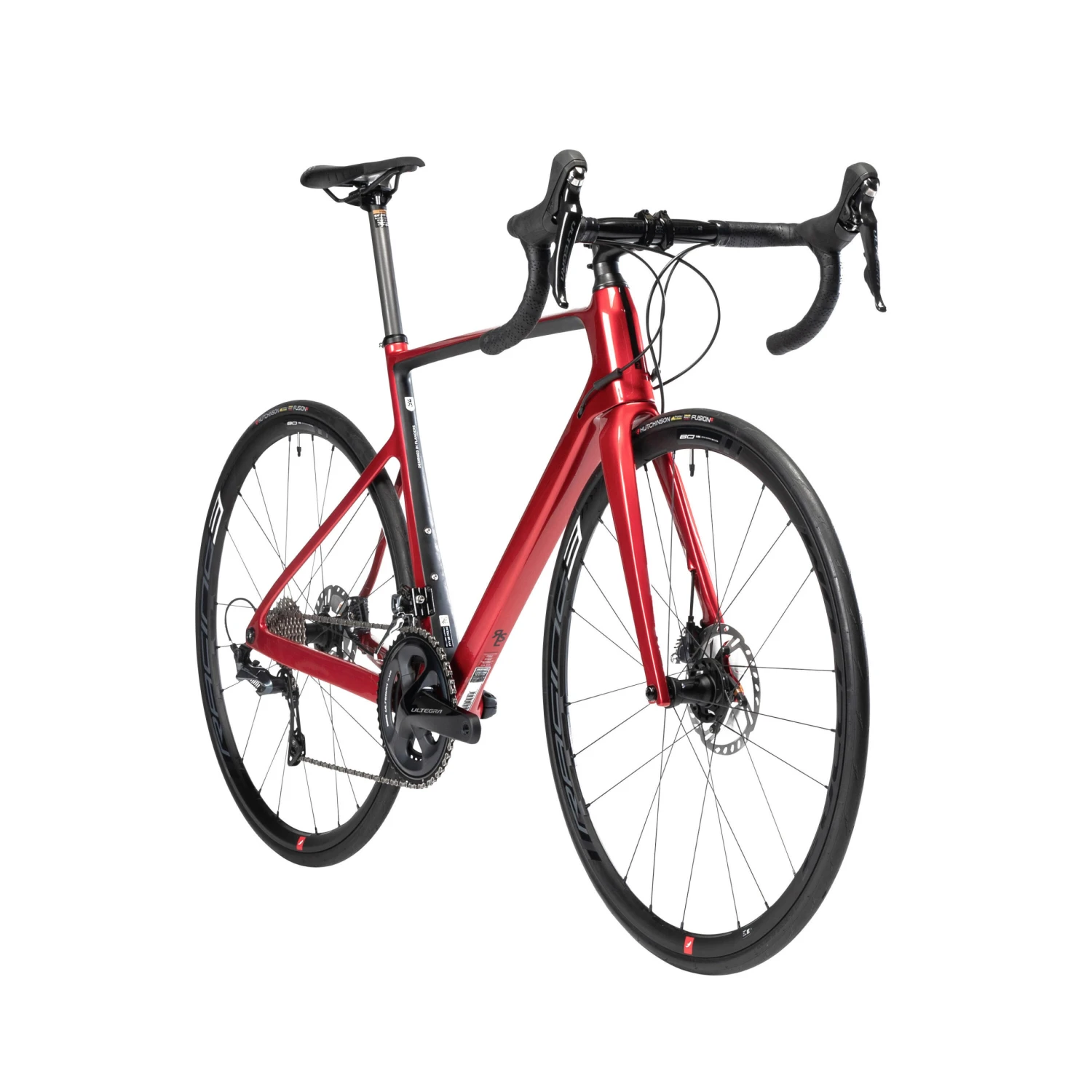

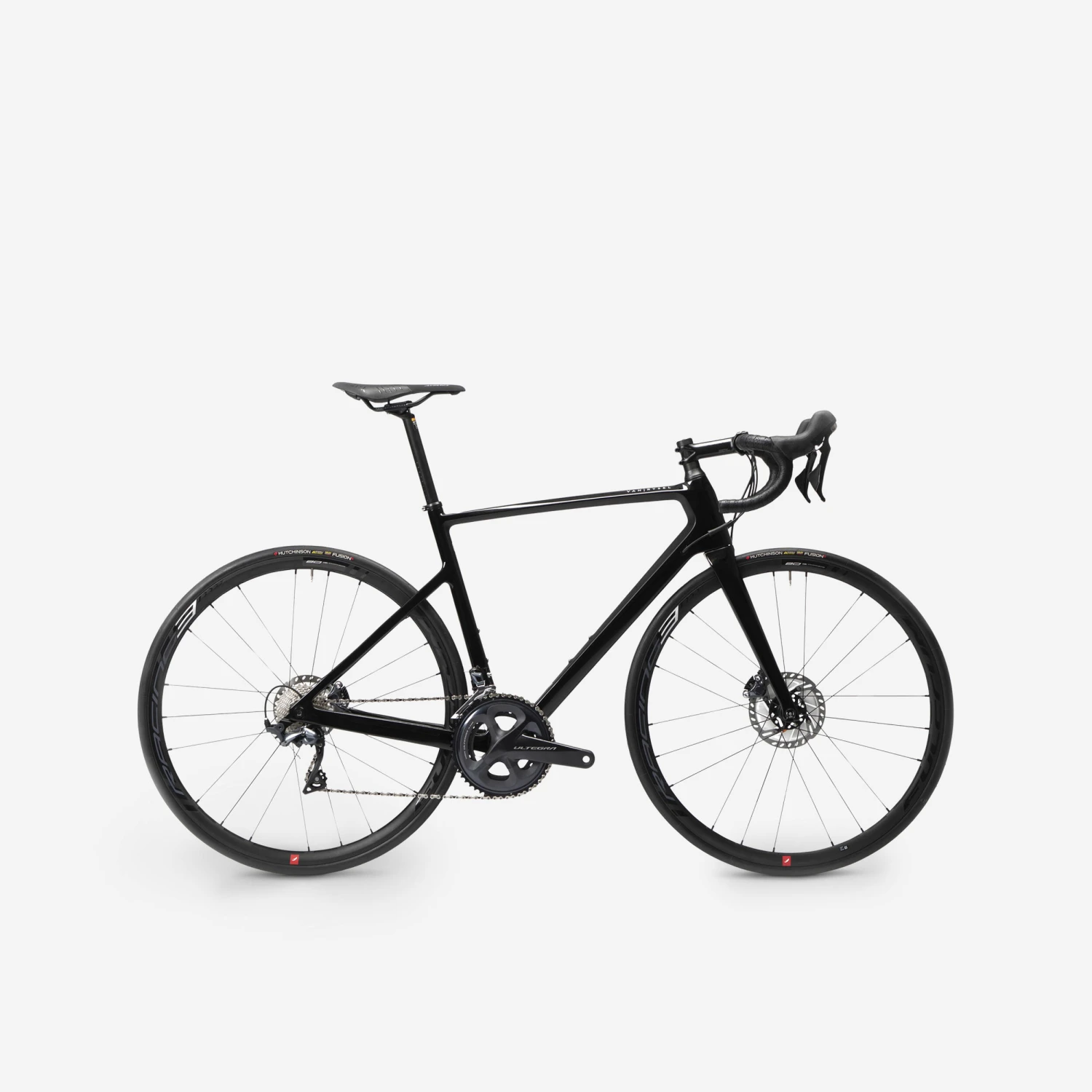

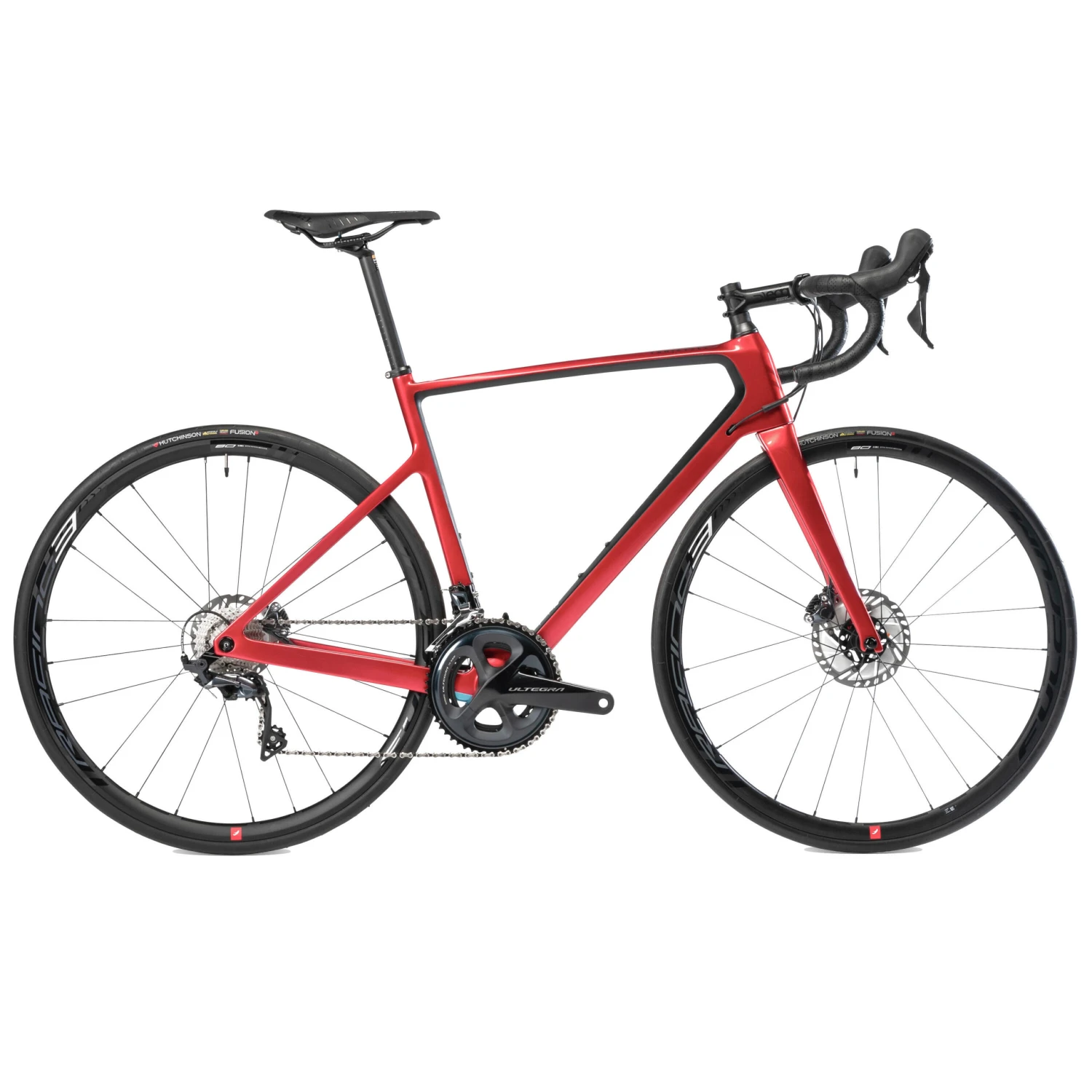

Road Bike EDR CF ULTEGRA Disc

Designed for both endurance and speed, this ultra-high-performance road bike is suited for the most demanding cyclists.As comfortable in the mountains as over mixed terrain, this new frame will surprise you with its reactivity and low weight.

New EDR bikes

EDR, which stands for EnDuRance, is the new line of bikes from Van Rysel dedicated to performance.
But make no mistake, “endurance” and “speed” are not mutually exclusive! That is the challenge that our design team took up in creating this new line.
EDR frames are the perfect answer for competitive riders looking for a bike that is as good in the mountains as it is on bike paths.
The perfect combination of rigidity, low weight and comfort, will allow you to leave your past records in the dust

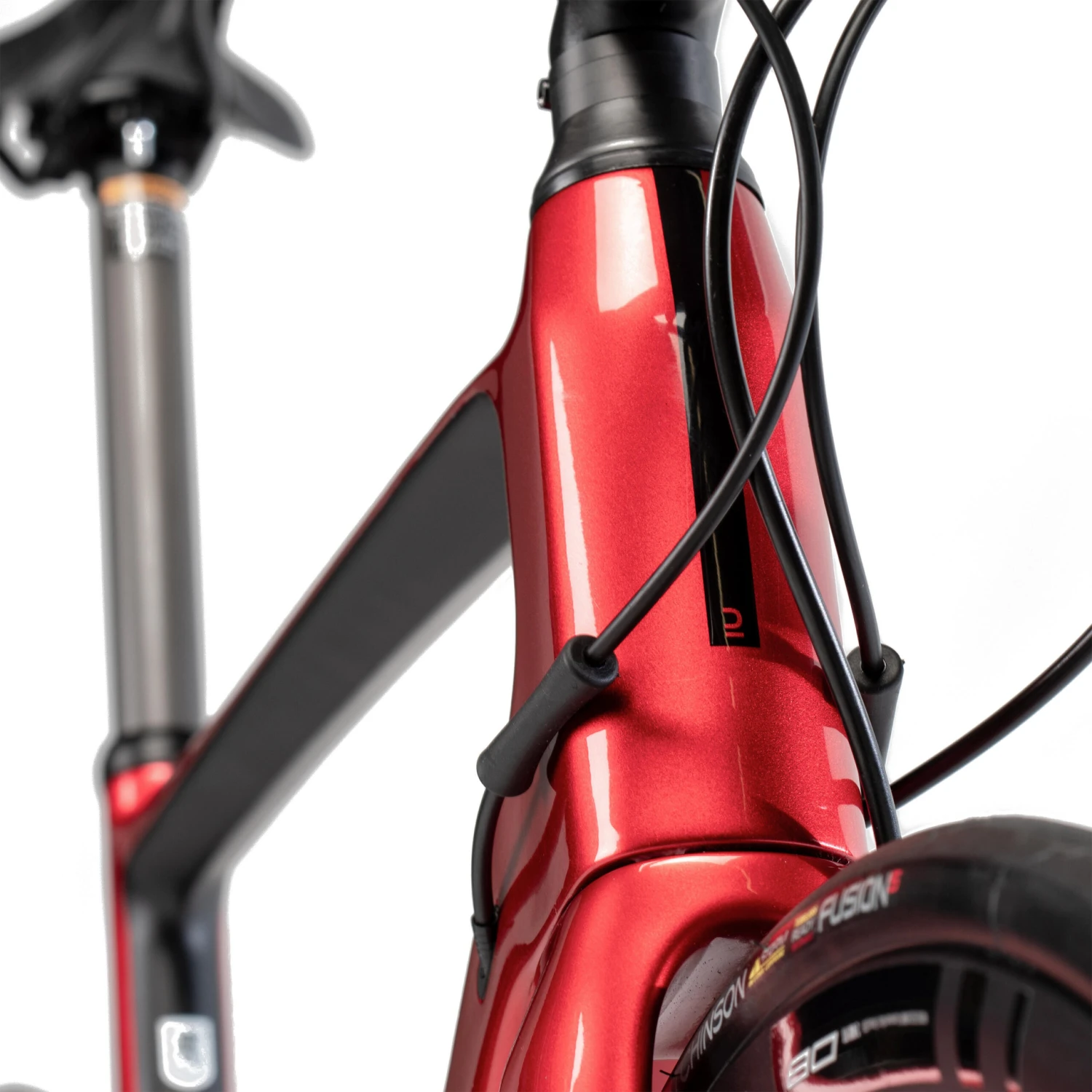

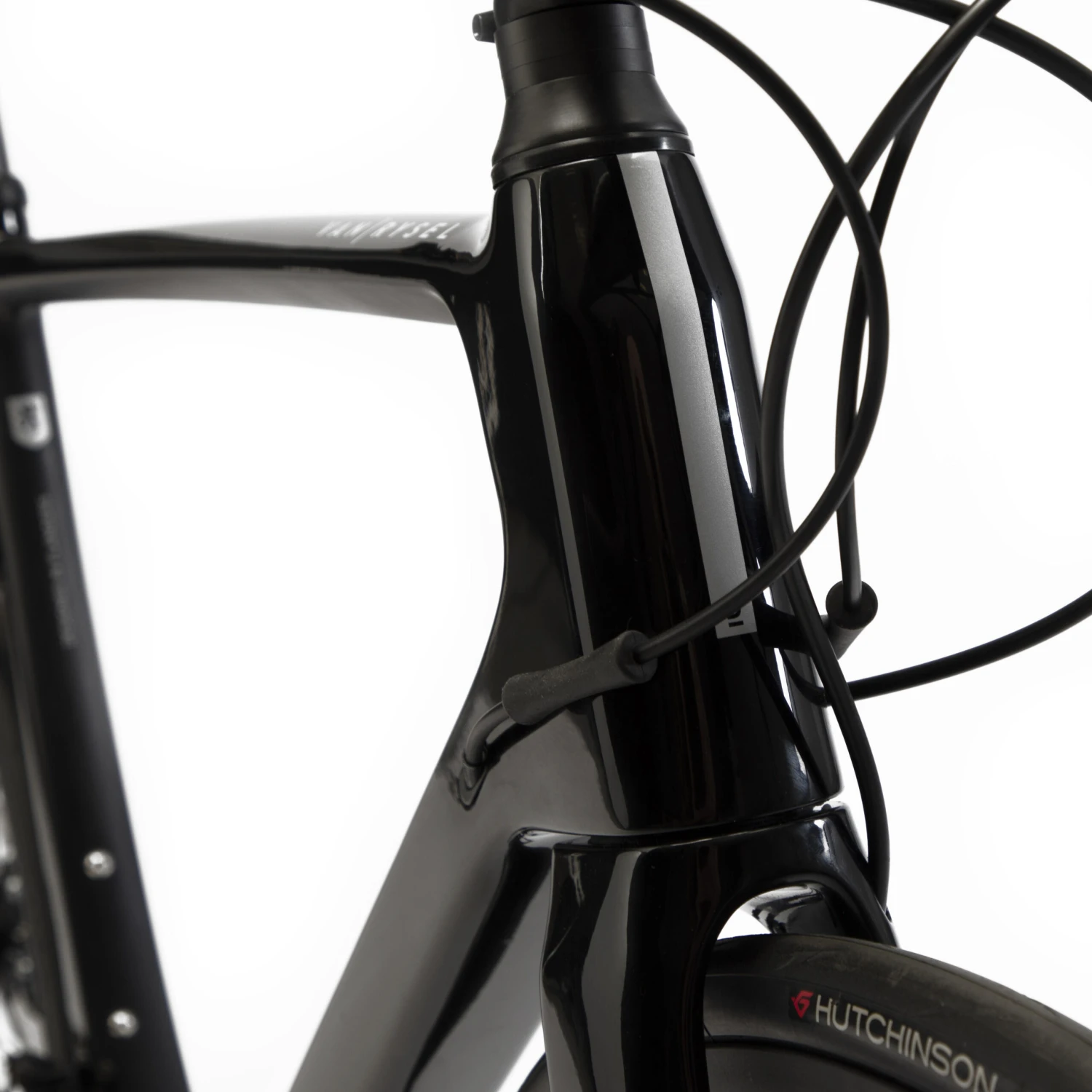

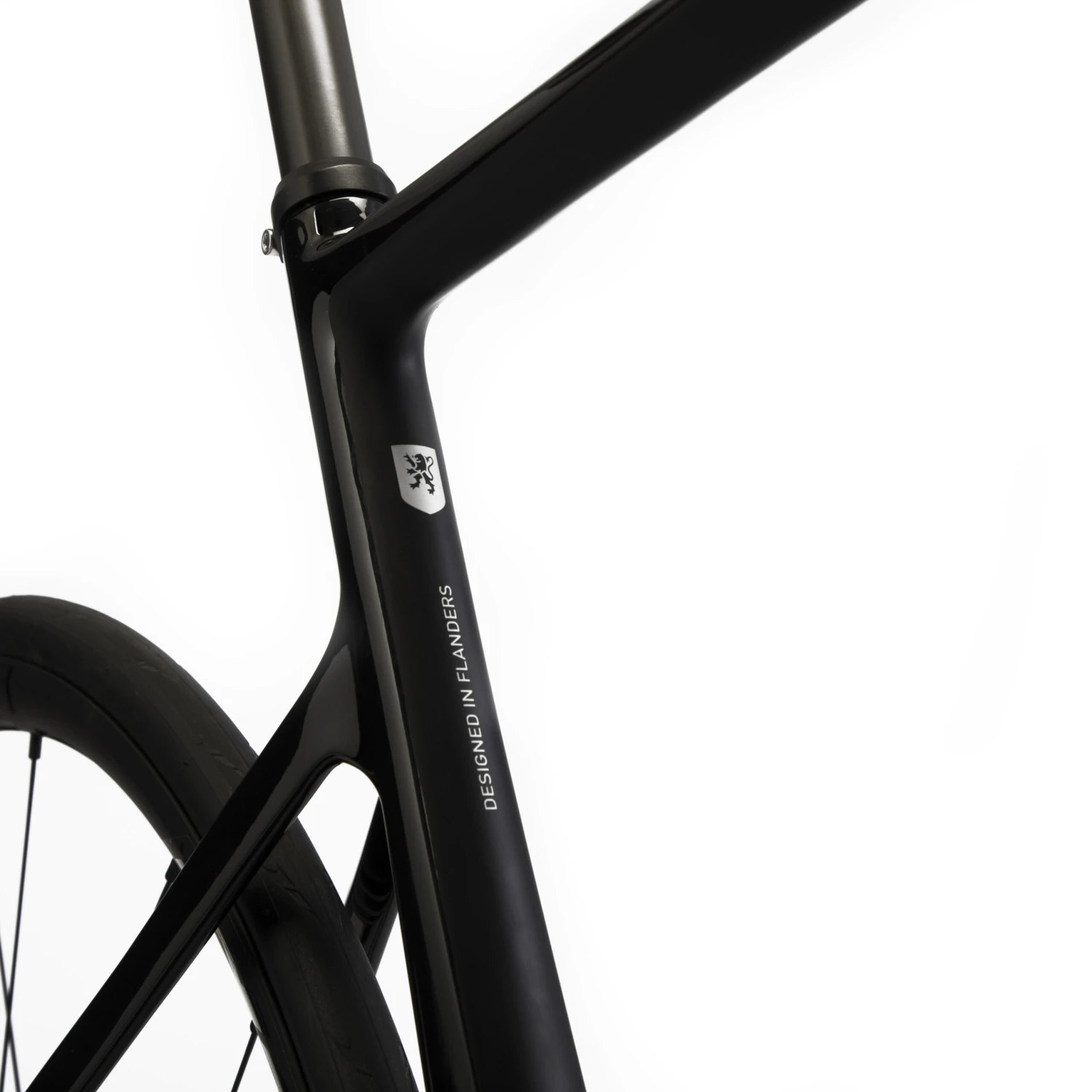

EDR frame and fork

Weighing only 890 grammes (net, size M), the EDR frame and fork are made with high modulus carbon fibre that provides excellent rigidity, making it responsive to every acceleration.
Fork weight: 382g
The fibre design is designed to satisfy the needs of the most demanding climbers and racers both in the mountains and on the flats. It meets all the requirements of high level amateur and pro riders.
Press-fit 86 bottom bracket and Di2 compatible frame.

DEDA ZERO 2 Handlebar and Stem

DEDA ZERO 2 handlebar
The Zero 2 handlebar features DEDA’s patented compact RHM (rapid hand movement) geometry and an aerodynamic cross-section, making it easy and comfortable to hold.
The DEDA Zero 2 is made from a lightweight 6061 alloy for reliability and durability.
End-end width: XS, S: 400 mm; M, L, XL: 420 mm.
Deda Zero 2 stem

Length: XS:90 mm, S: 100 mm, M: 110 mm, L: 120 mm, XL: 130 mm

ULTEGRA R8000 drivetrain

Shimano ULTEGRA R8000 groupset.

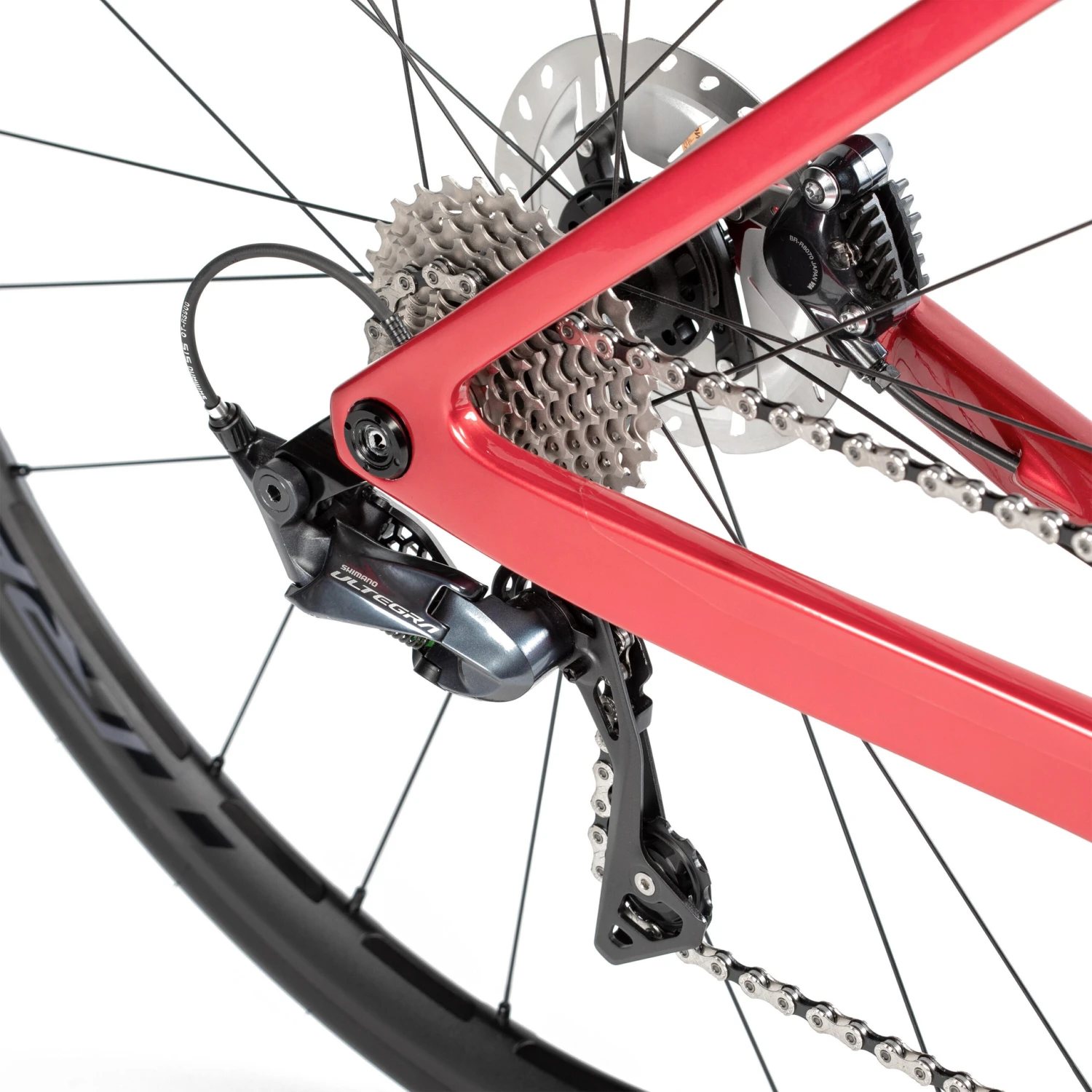

The ULTEGRA R8000 11-speed rear derailleur is now lighter and responds quicker thanks to the polymer-coated low friction cables. (28 min and 34 t max) Weight: 232 g
Shimano ULTEGRA R8000 front derailleur
Weight: 106 g

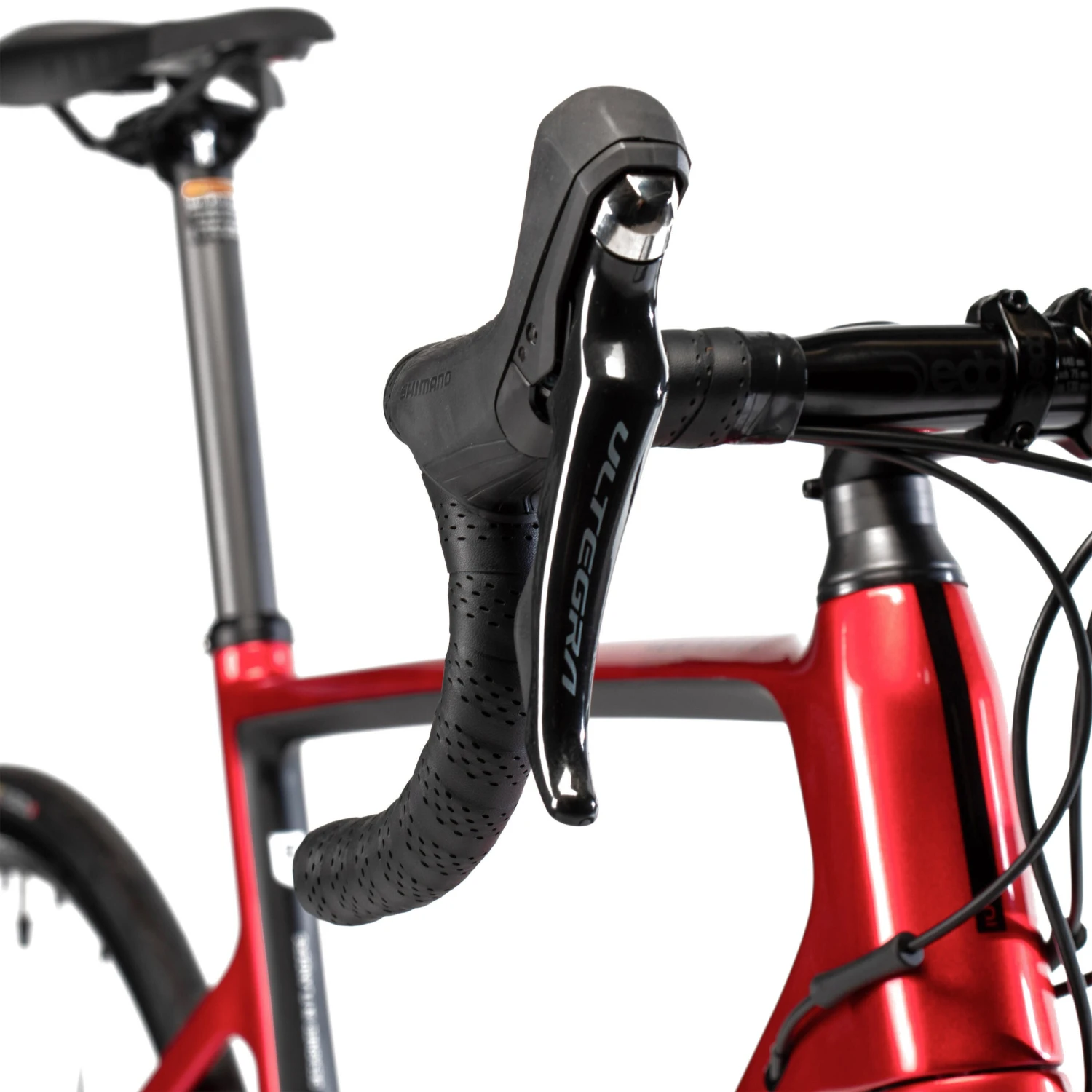

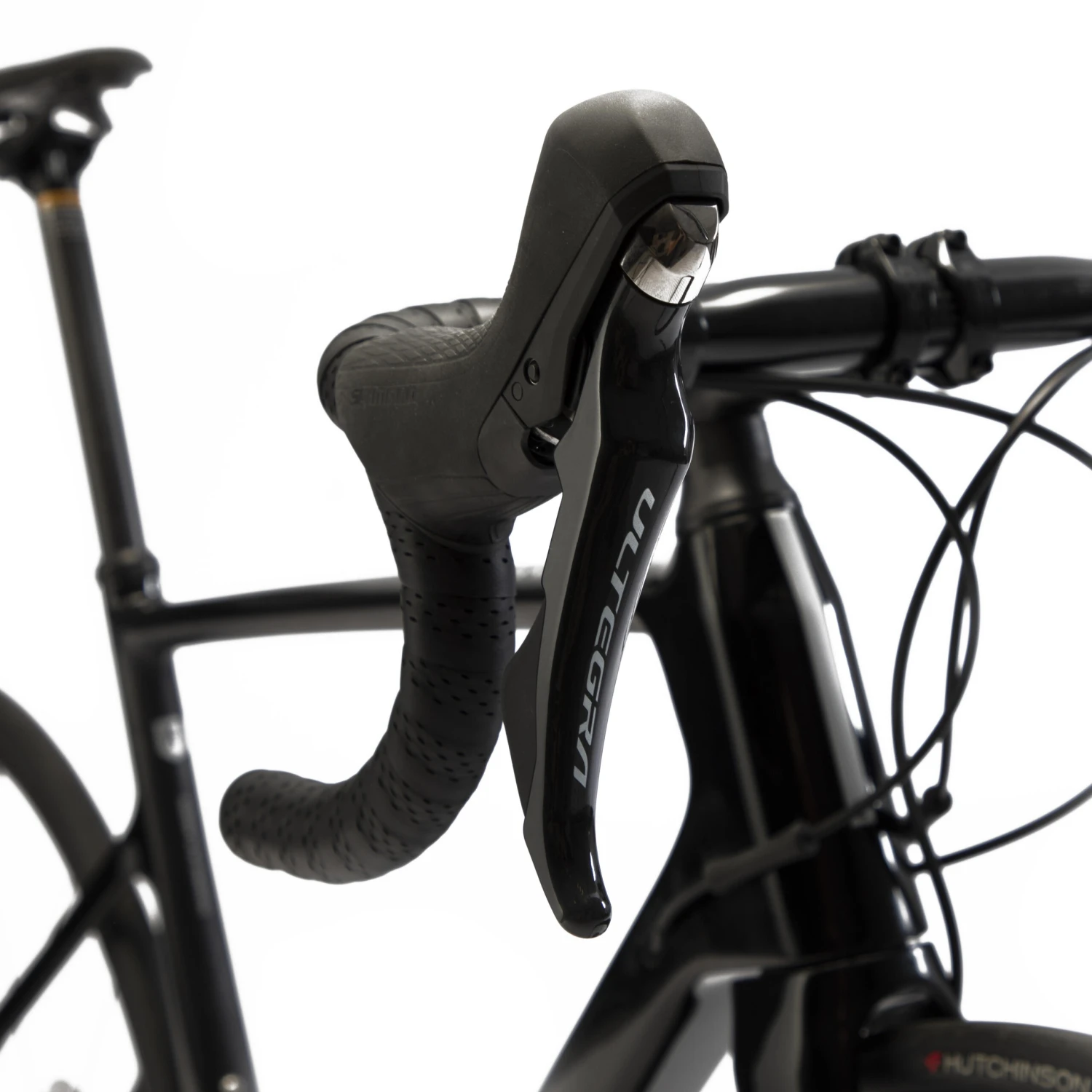

Shimano ULTEGRA R8000 levers
Weight: 438 g

ULTEGRA R8000 chainring/cassette

Compact 52 x 36 Shimano Ultegra R8000 double chainset
Crank length:
S: 170 mm
M: 172.5 mm
L/XL: 175 mm

Cassette: SHIMANO ULTEGRA R8000 11 x 28
11/12/13/14/15/17/19/21/23/25/28

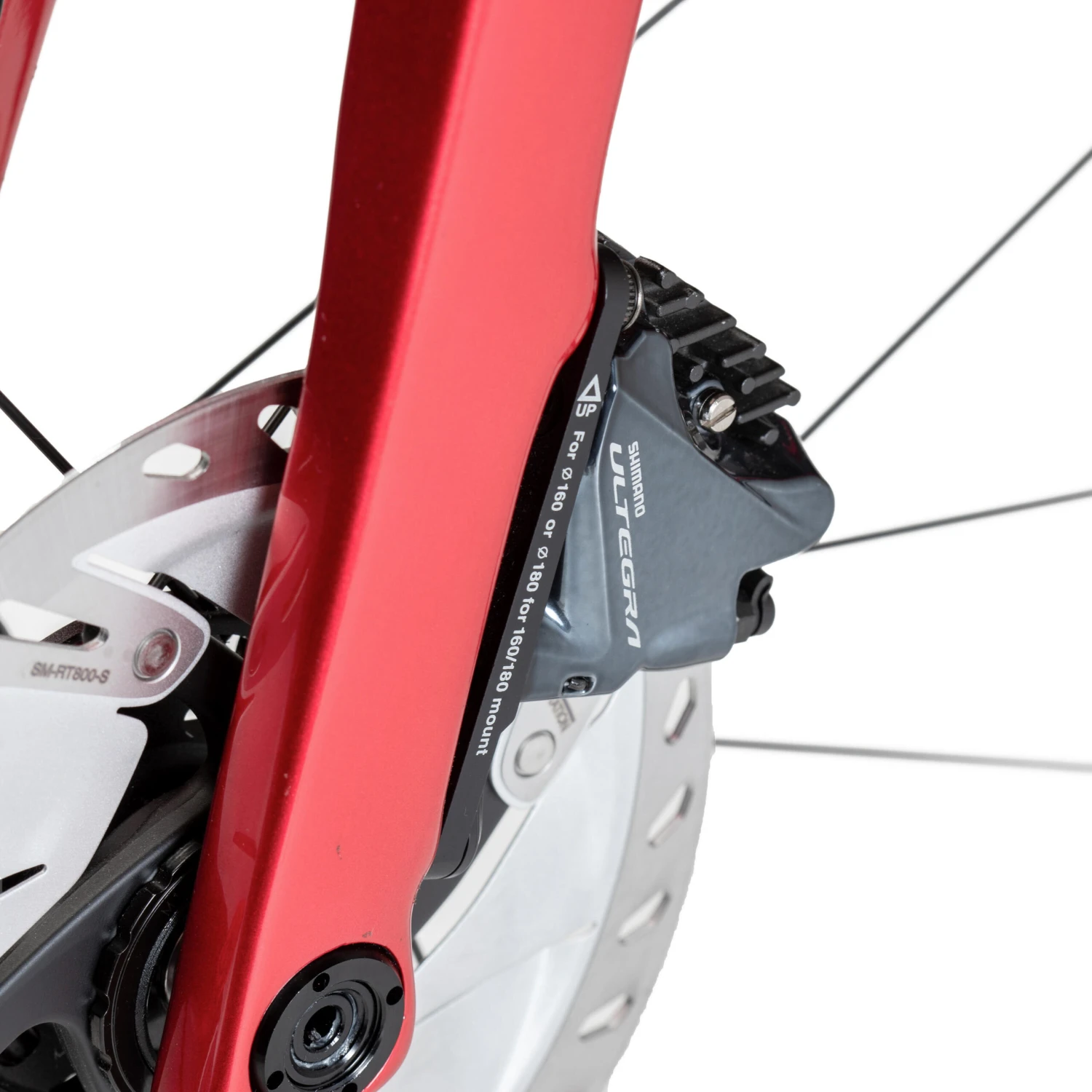

ULTEGRA R8000 disc brakes (1)

The Ultegra R8070 calipers are equipped with the latest Shimano technologies for powerful, fluid braking. Have peace of mind as you attack descents and undergrowth with these new BR-R8070 calipers!
The calipers have a stiffer, more aerodynamic Flat Mount. Its 2 ceramic pistons and specific design for cooldown help it to provide consistent, progressive performance.

Front disc: 160mm
Rear disc: 140 mm

ULTEGRA R8000 disc brakes (2)

Technical features:
– Brake calliper: BR-R8070 Flat Mount, 2 ceramic pistons with automatic adjustment of the pad return
– Consistent braking performance in dry and humid conditions
– Compatible with grips: ST-R9170, ST-R9070, ST-R8020 and ST-R8070
– Brake pads included: L04C Resin with cooling fin
– Disc compatibility: 140mm to 160mm
– Recommended disc: SM-RT800
– Recommended brake oil: Shimano mineral oil

FULCRUM RACING3 DB Tubeless Wheels (1)

The Racing 3 DB is packed with technology, designed to improve performance in the widest variety of situations, successfully defining a new standard of satisfaction and reliability.
It provides extreme rolling efficiency thanks to its cone and basin bearings, while remaining comfortable thanks to the steel spokes ensuring over 25% more absorption capacity compared to the Racing Zero.

FULCRUM RACING3 DB Tubeless Wheels (2)

Rim width: Front: 23,8 mm
Type of wheel: tyre
Rim height: 28 mm
Weight (per pair): 1660 g
Front spokes: 21 (7 left – 14 right)
Rear spokes: 21 (14 left – 7 right)
Bearings: Cone/basin system, adjustable
Hub: Aluminium, flange with aluminium
Freewheel body: Shimano/SRAM 10/11 speeds
Max rider weight: 109 kg

Hutchinson Fusion 5 Performance tyres

Size: 700 x 25 C
Two years of R&D by the Hutchinson product teams has given birth to a new ElevenSTORM® rubber that meets the five main performance criteria for a high-end tyre: Grip, rolling performance, durability, puncture resistance, comfort.
This version offers the perfect balance for all cyclists who want to go faster and further. When combined with a Kevlar® strip under the tread, it lets you ride with peace of mind and is rated to last for over 4000 km. Tubeless ready.

Cross section

The frame is compatible with tyres with a max cross section of 28mm

Saddle/Seat post

FIZIK ANTARES R5 BLACK
VR carbon 27.2 seat post

Pedals

Clipless pedals not included.
