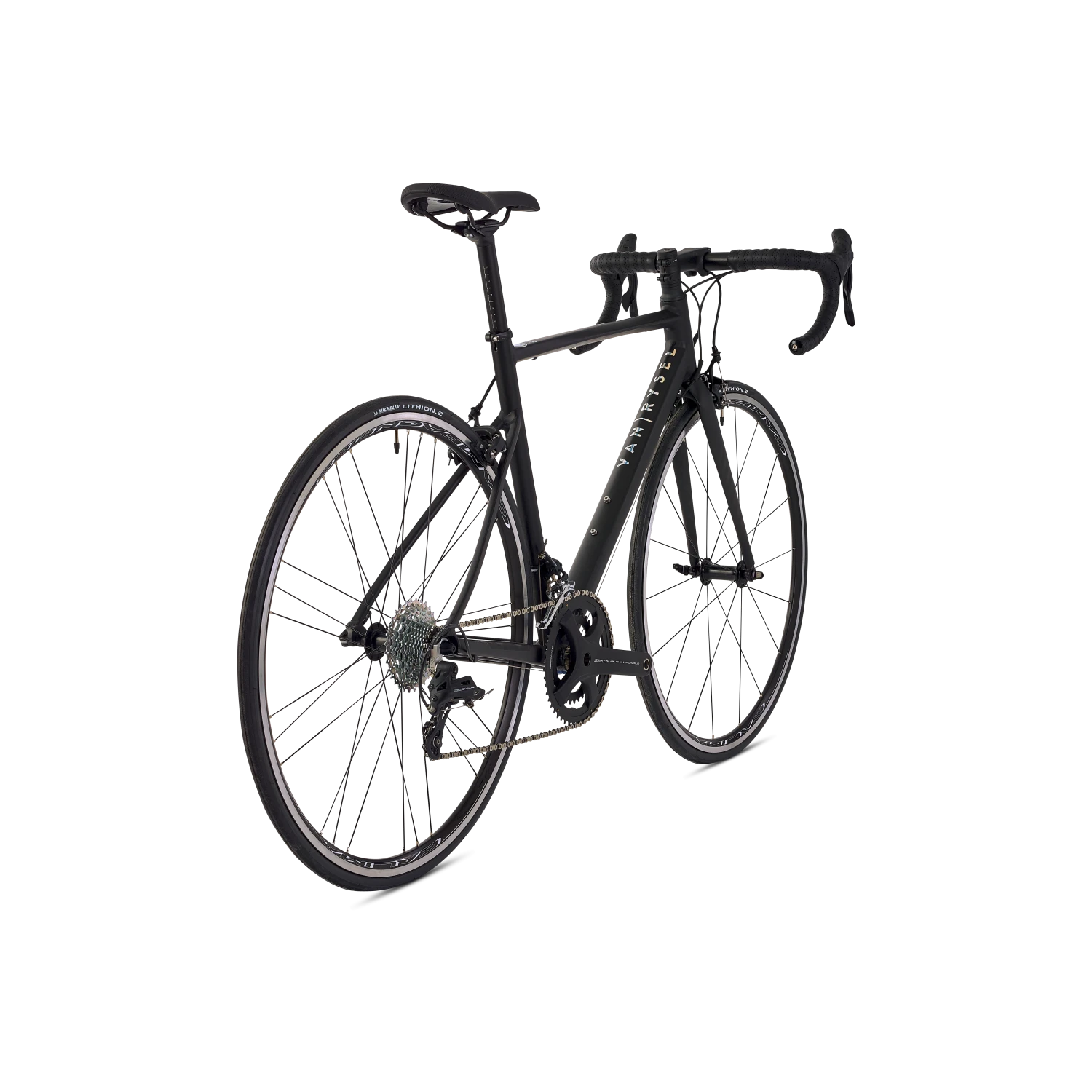

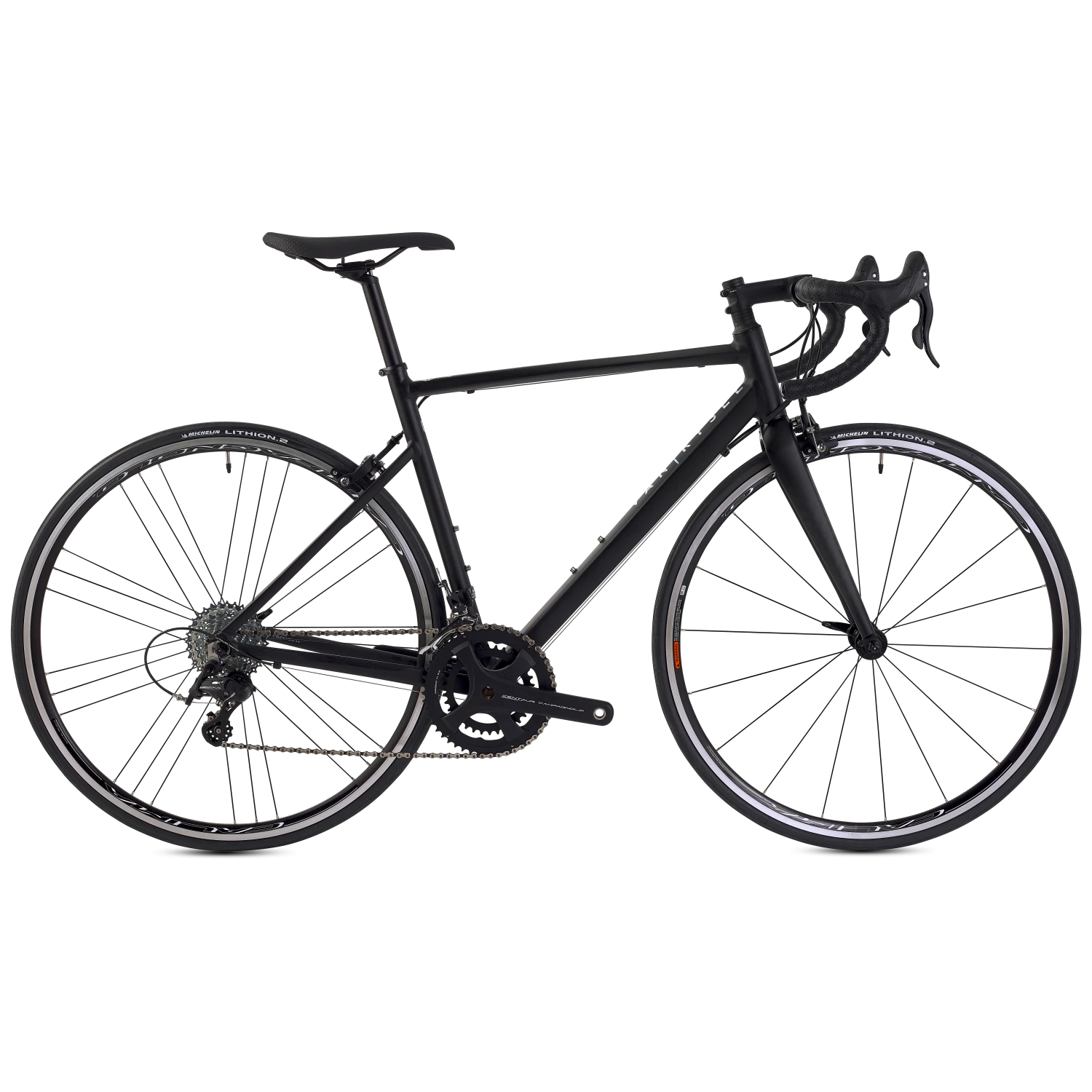

Road Bike EDR AF Centaur – Black

Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF is a subtle balance of handling and comfort.Van Rysel is driven by performance – this lightweight (8.9kg) bike is made for speed. Aluminium frame, carbon/alu fork, Campagnolo groupset and wheels, the best of Italy and Flanders

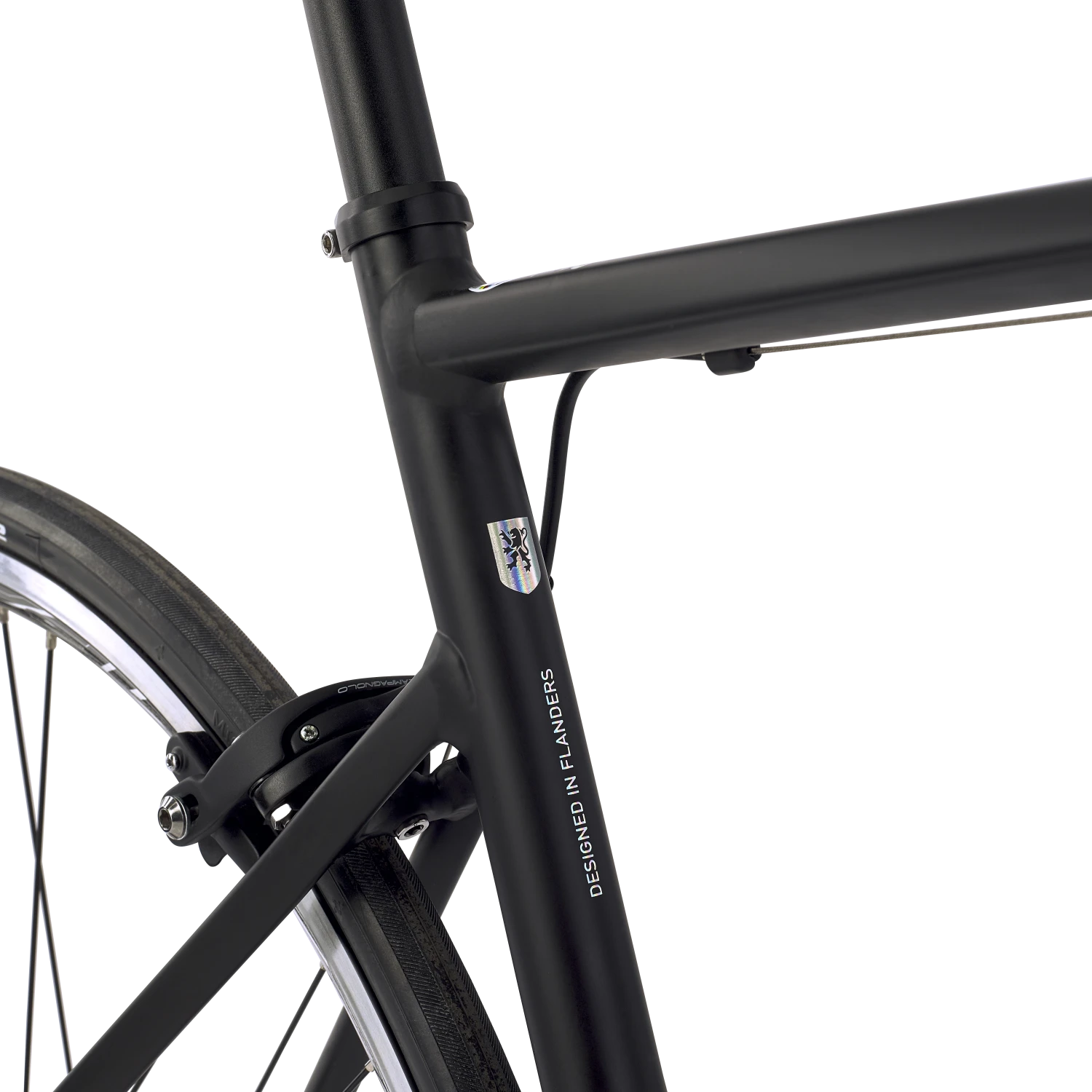

Frame

New Van Rysel aluminium frame (AF) with variable thickness to lighten the frame as much as possible.
Aluminium is the perfect material for getting a good balance of propulsion and comfort.

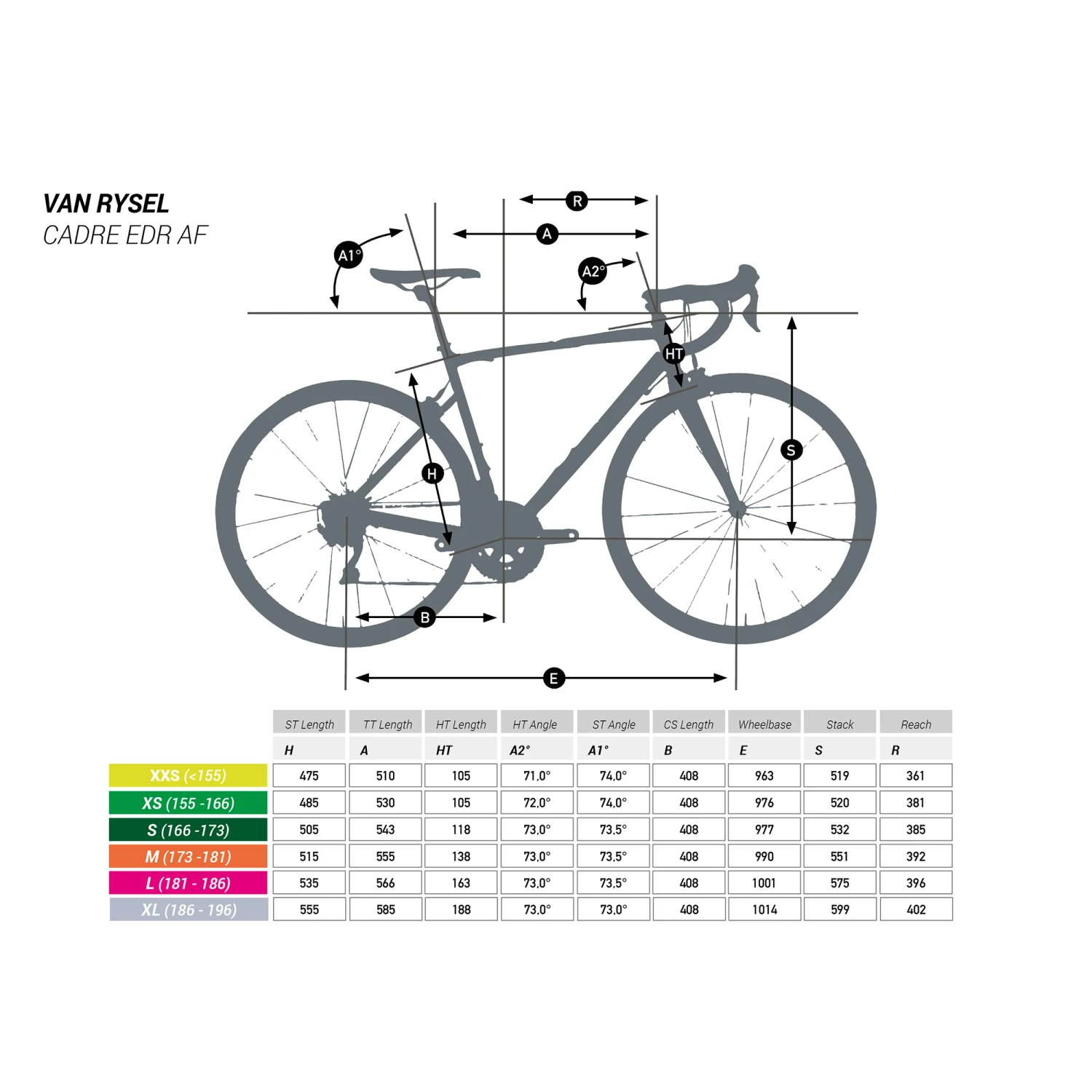

The frame has an endurance geometry (EDR) which allows you to tackle long distances with maximum comfort.

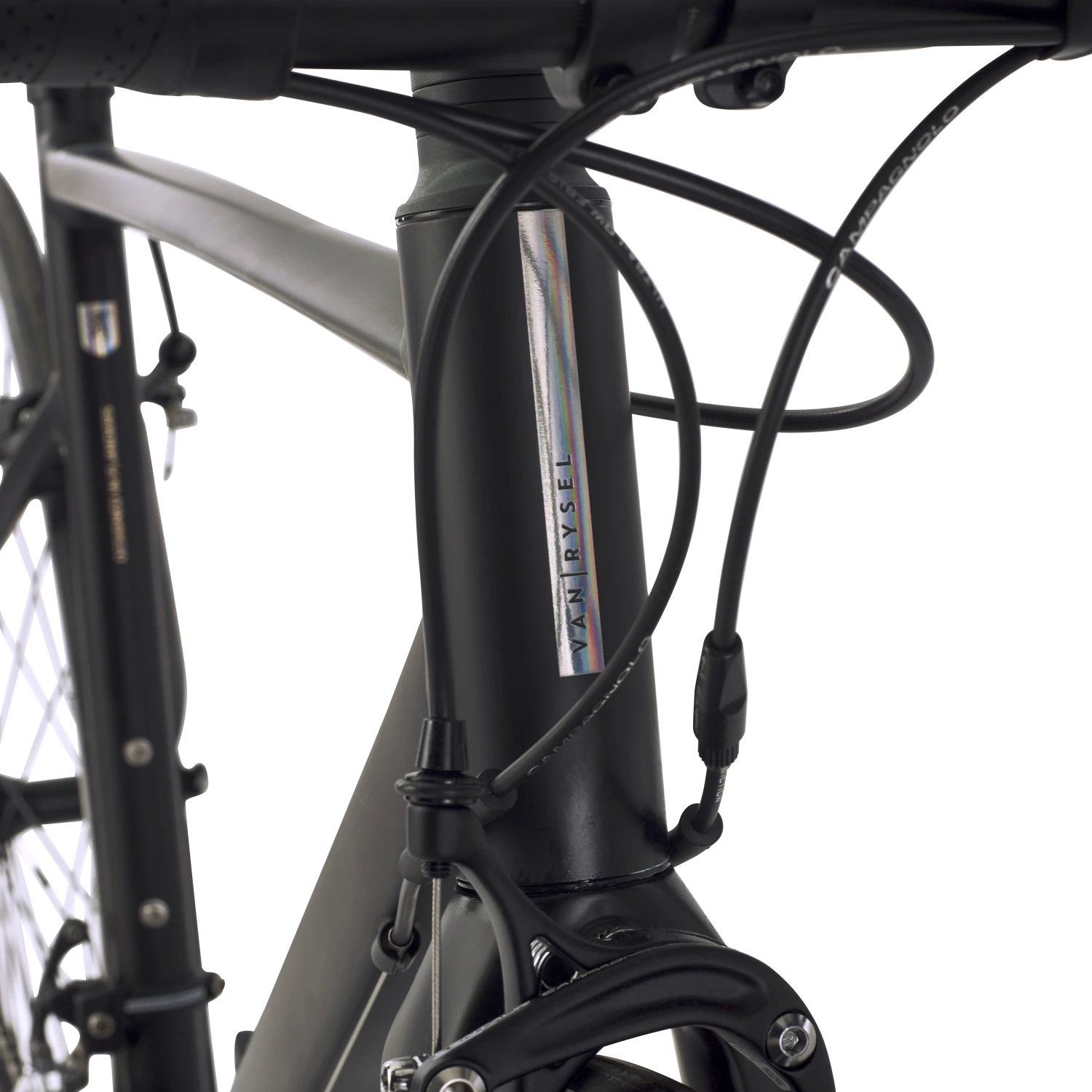

We have chosen to leave the cables on the outside of the frame for easier maintenance and replacement of cables and housings.
The frame is UCI-approved

Fork

Carbon and aluminium Van Rysel fork.
A perfect choice for precision steering and performance at a reasonable price.
Simple pivot brake for a biting brake.
Frame weight: 1450 to 1470g in size M
Fork weight: 640g in size M

Drive train

KMC chain
Campagnolo Centaur double front derailleur.

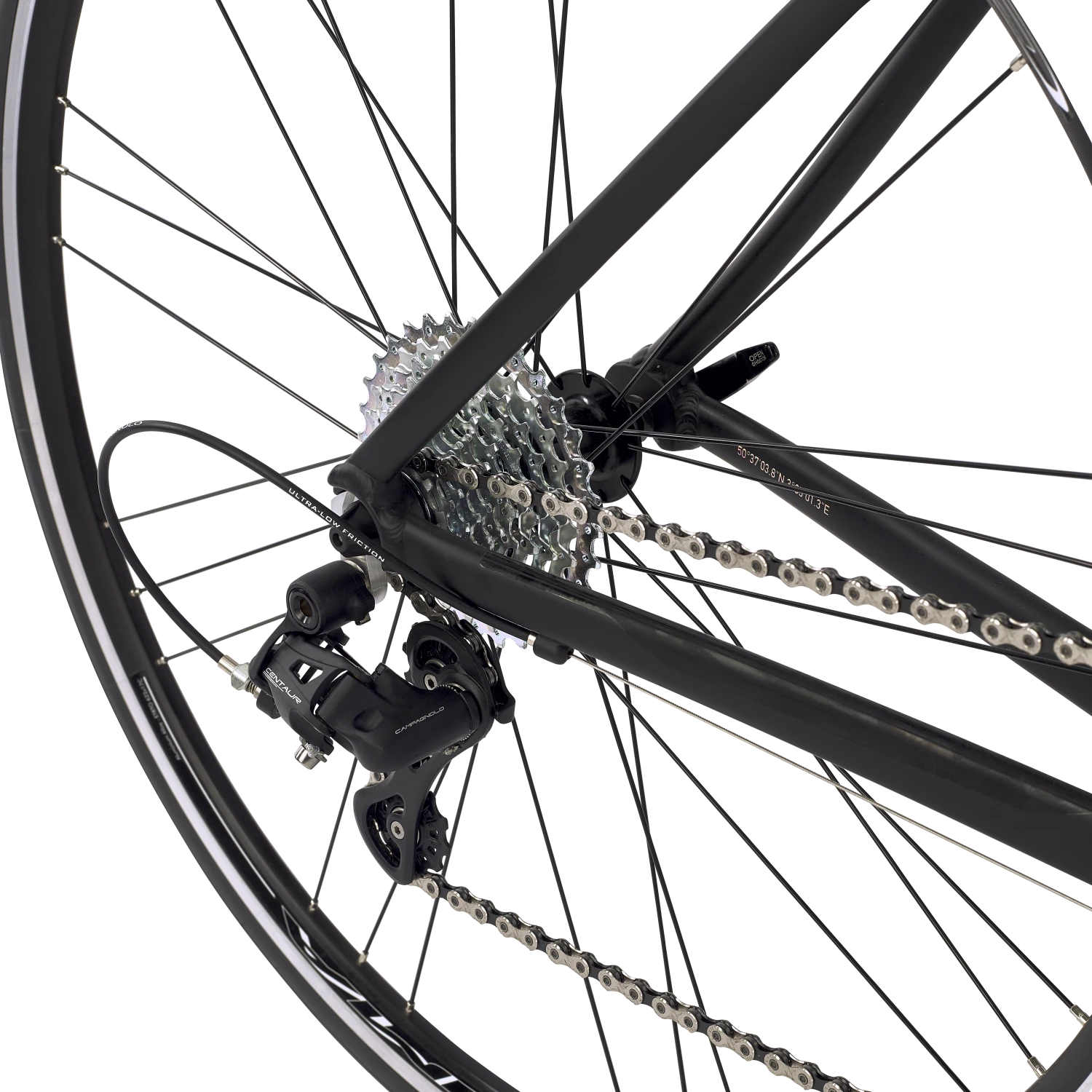

Campagnolo Centaur 11-speed rear derailleur.

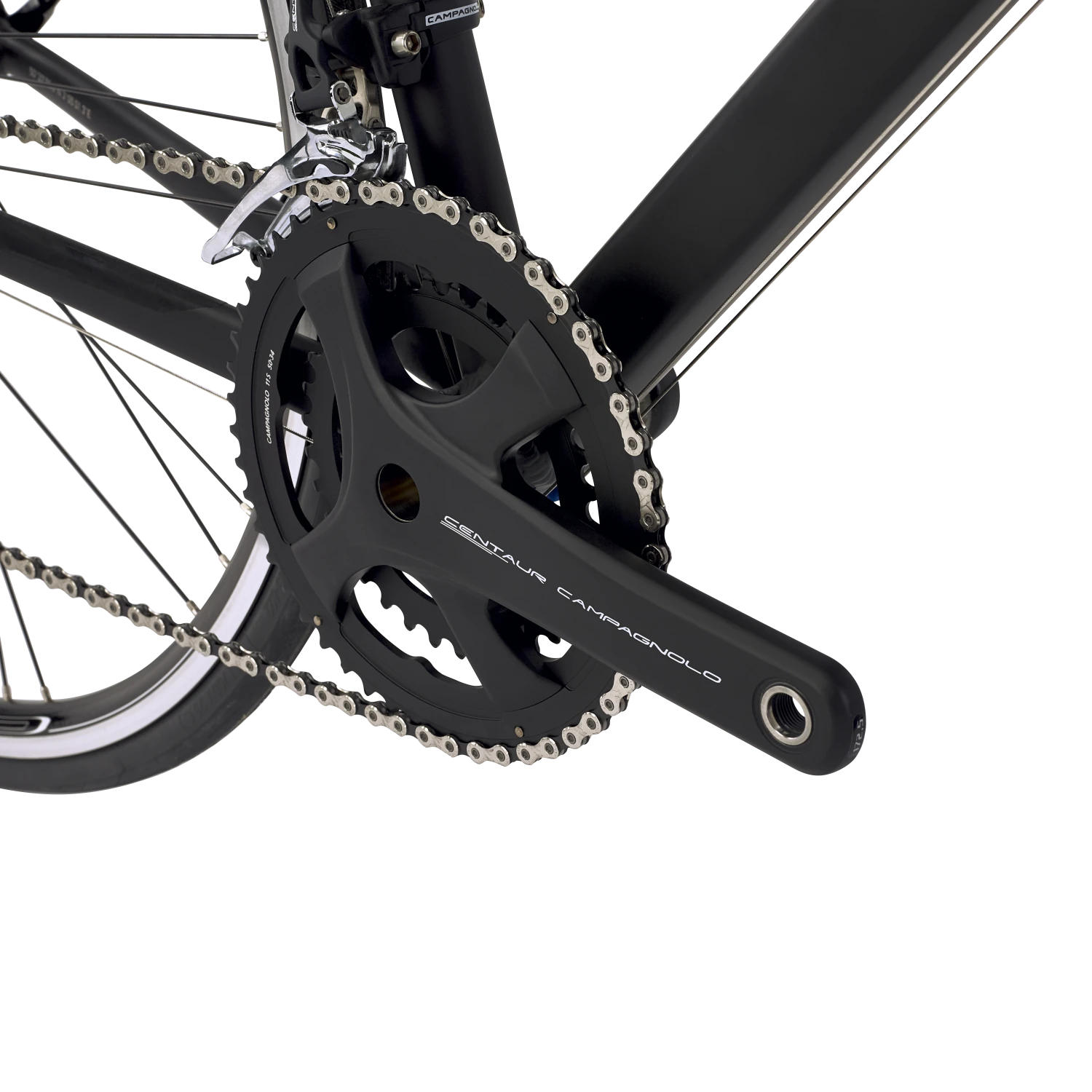

Campagnolo Centaur crankset

Crankset / cassette

Campagnolo Centaur 50 x 34 crankset.
Crank length varies according to size of bike: S: 170mm
M: 172.5mm
L: 175 mm
Campagnolo Centaur 12 x 32 cassette
(12-13-14-15-16-17-19-22-25-28-32)

WHEELS

Campagnolo Calima aluminium wheels, 1826 g the pair.
Profile height: 24 mm
Profile width: 22 mm
The frame is approved for tyres measuring 28 mm maximum.
Aluminium hub / steel bearing

18 steel front radial spokes. 27 steel spokes with doubled lacing on the side of the cog cassette
Exclusive G3 lacing at rear
Thinned steel aero spokes

TYRES

Michelin lithion 2 in 25 mm for maximum comfort.
This model is known for its longevity and good puncture resistance.
Excellent grip and high performance, this flexible bead tyre is versatile and efficient.

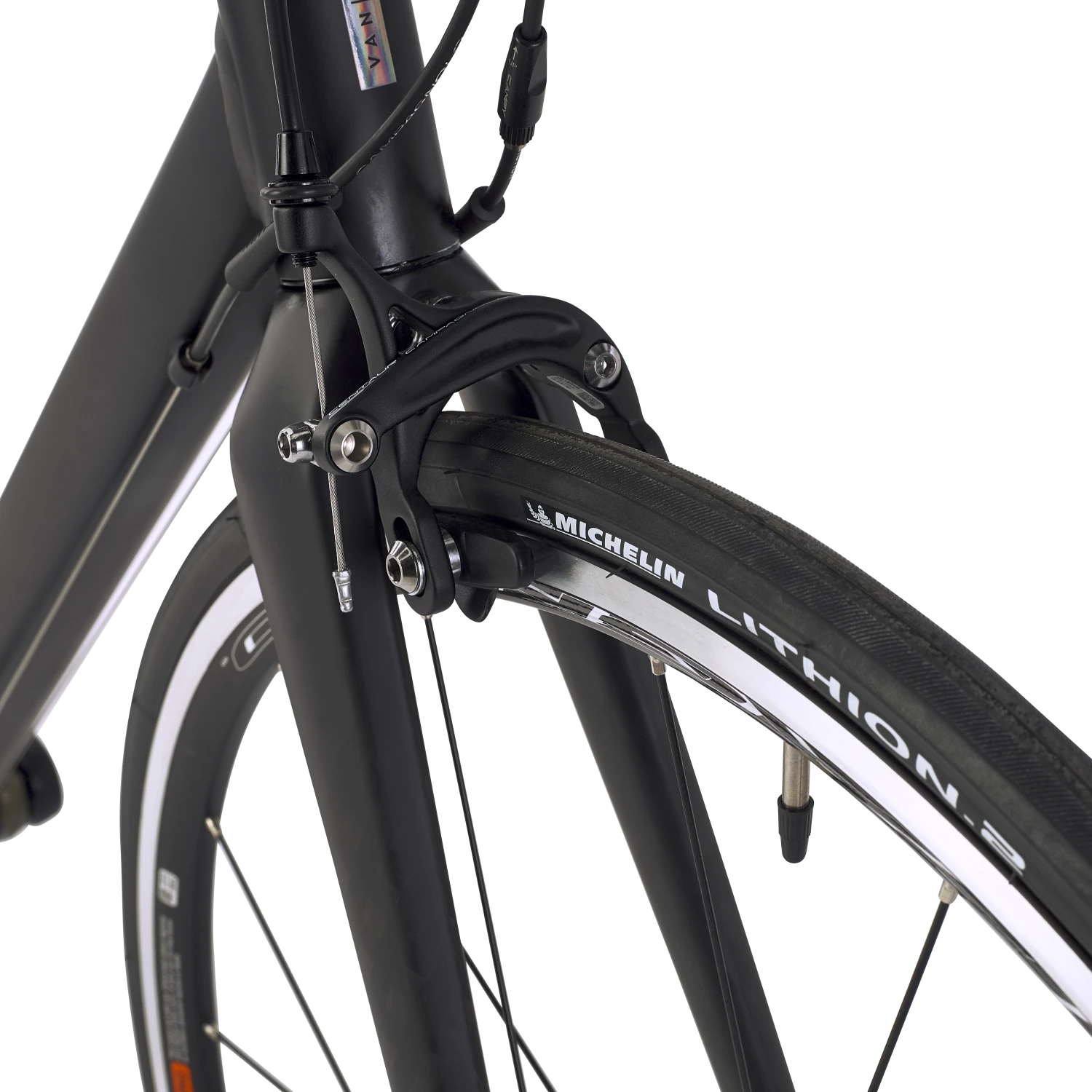

BRAKES

CAMPAGNOLO CENTAUR brakes

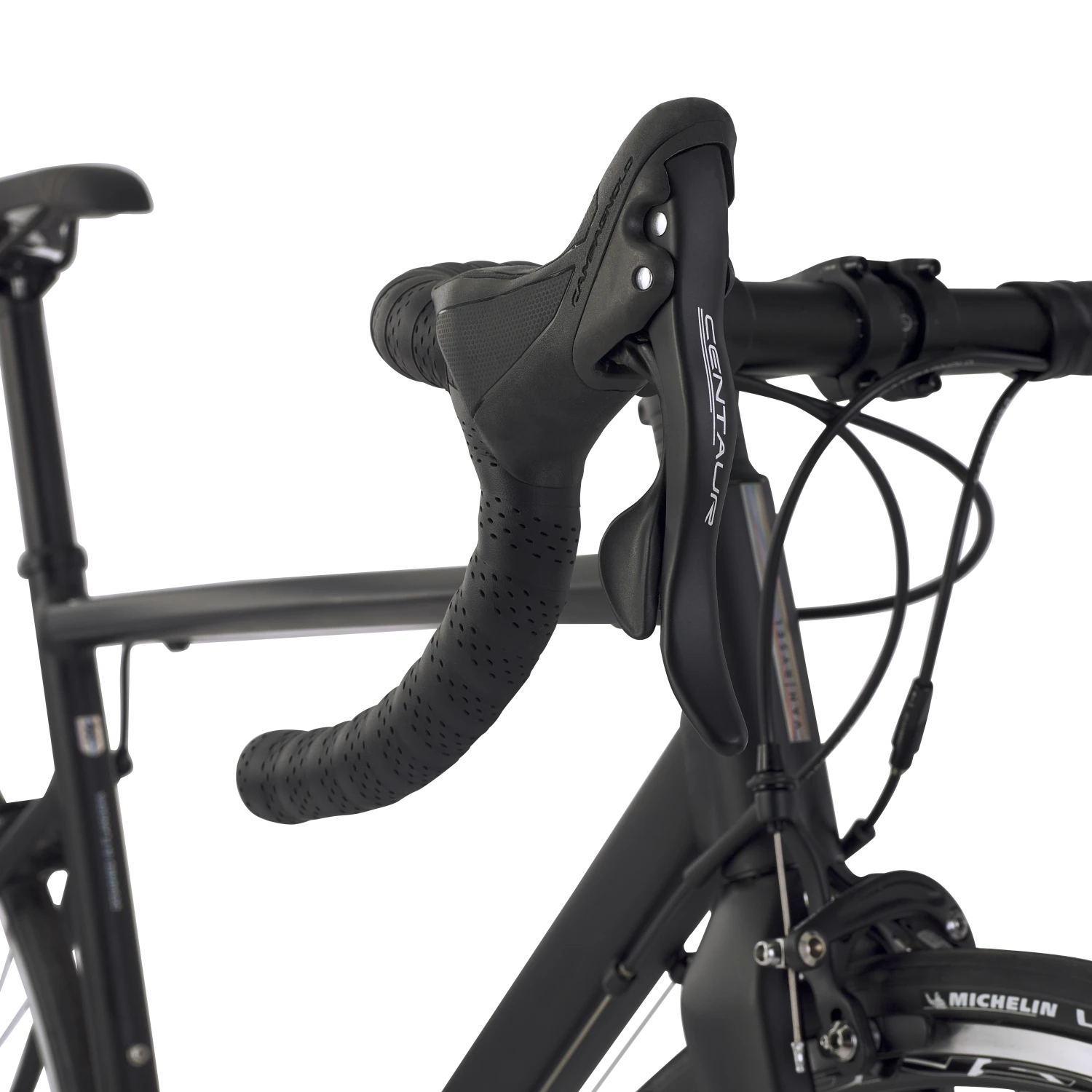

Handlebar / stem / steering

The compact 6061 T6 aluminium VanRysel handlebar is sized to the bike.
The handlebar weighs 320 g in size 420 mm.
End-end width: XS, S 400mm.
M, L 420mm.
XL 440mm.
VR oversize aluminium stem
Weight of 140g in size 110mm.
Length
XS 80mm
S 90mm
M 100mm
L 110mm
XL 120mm

Sealed bearings; diameter is 1 1/8″ at the top and 1 1/4″ at the bottom.

Saddles / Seat Post

VanRysel Sport 900 saddle, chosen for its comfort and efficiency.
Weight: 257g.

VanRysel racing aluminium seat post.
Diameter: 27.2mm.
Length: 350mm.Weight: 240g.

PEDALS

Pedals not included.

Accessories

Comes with front and rear-lighting kit and bell.Comes with a torque spanner to ensure the recommended torques and adjustments

Weight

8.900 kg in size M, without pedals.

Warranty

Lifetime warranty on the frame, 2 years on the fork, 2 years on peripheral components.

WHAT IS THE MAXIMUM TYRE SIZE YOU CAN FIT?

The frame and fork are compatible with tyres with a maximum size of 700 x 28mm
