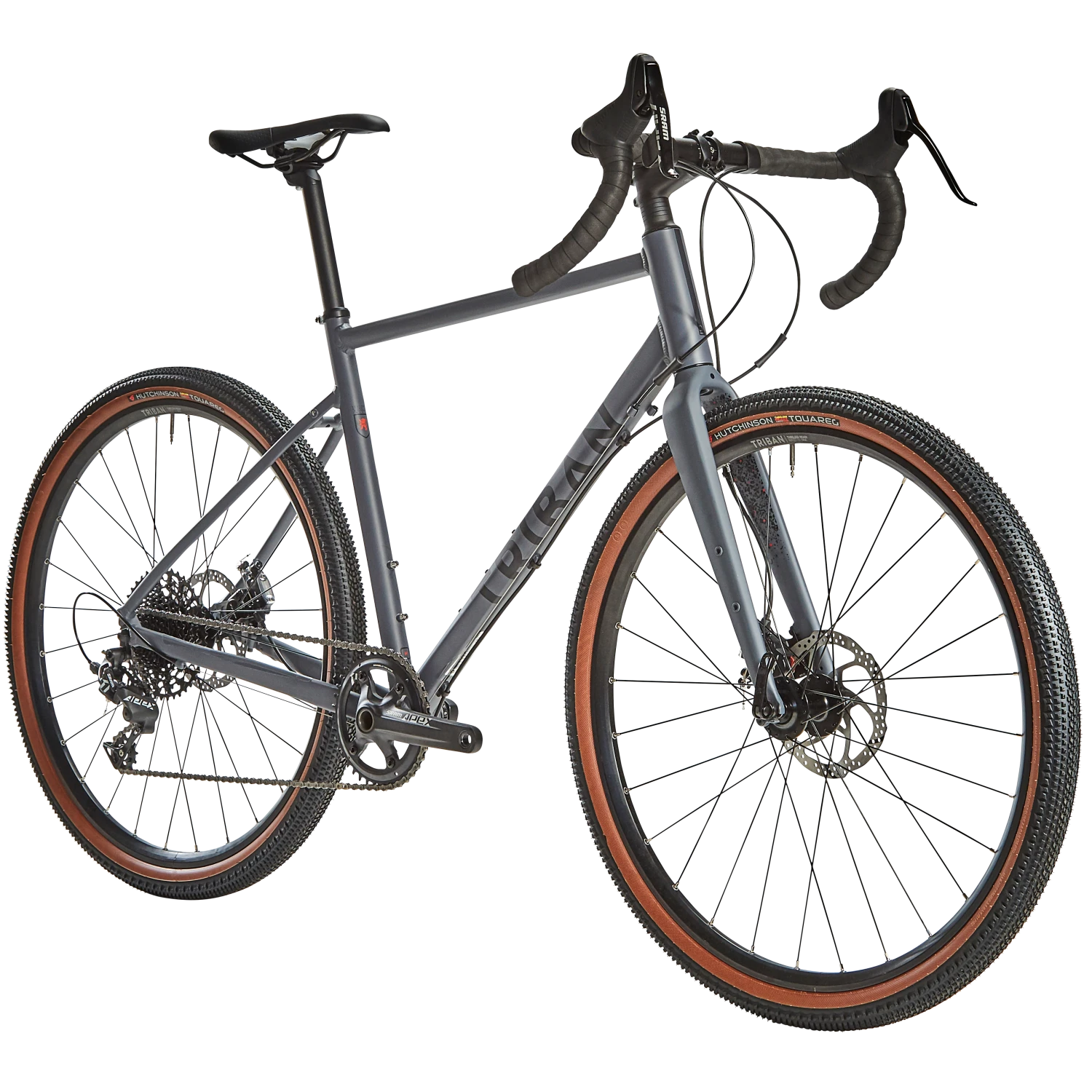

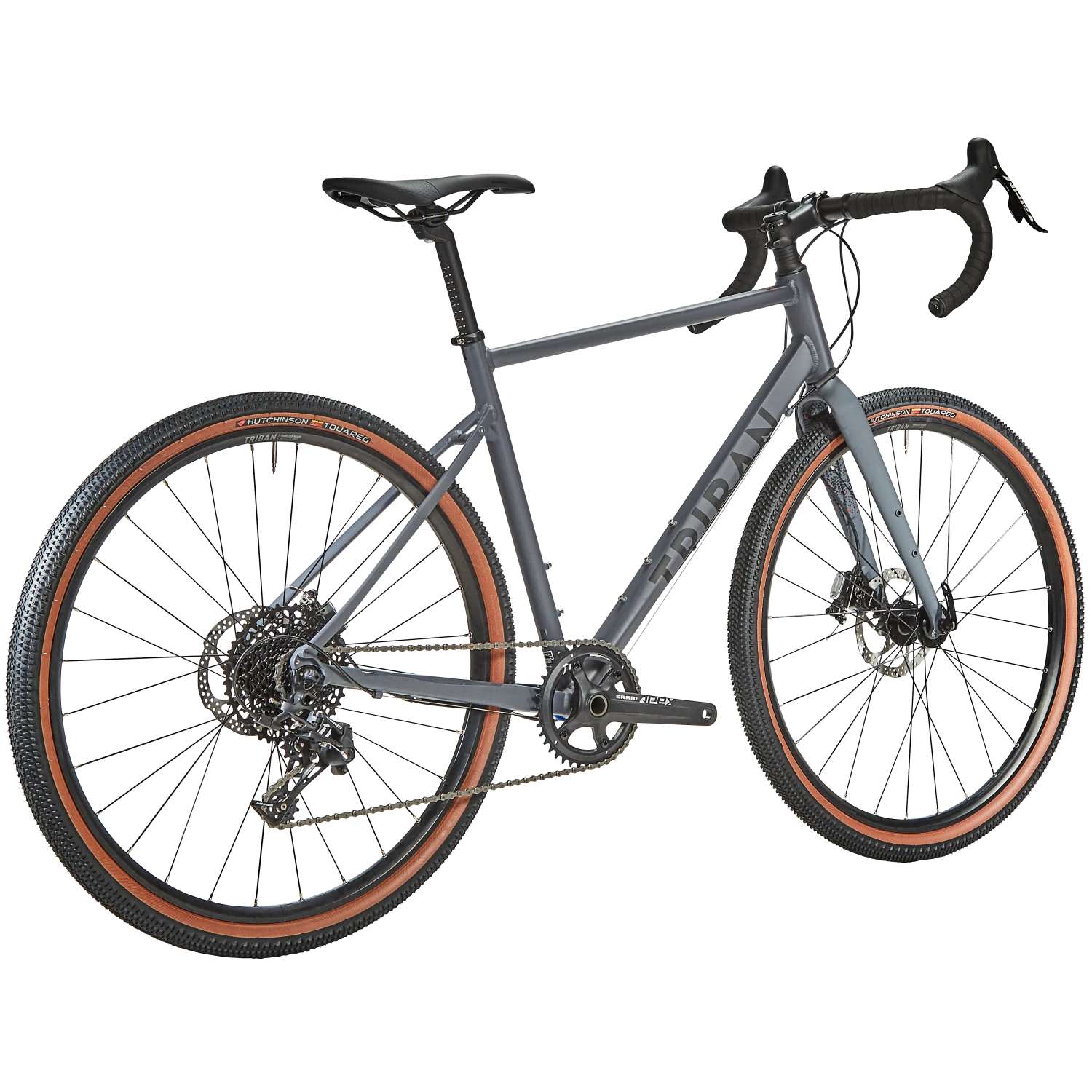

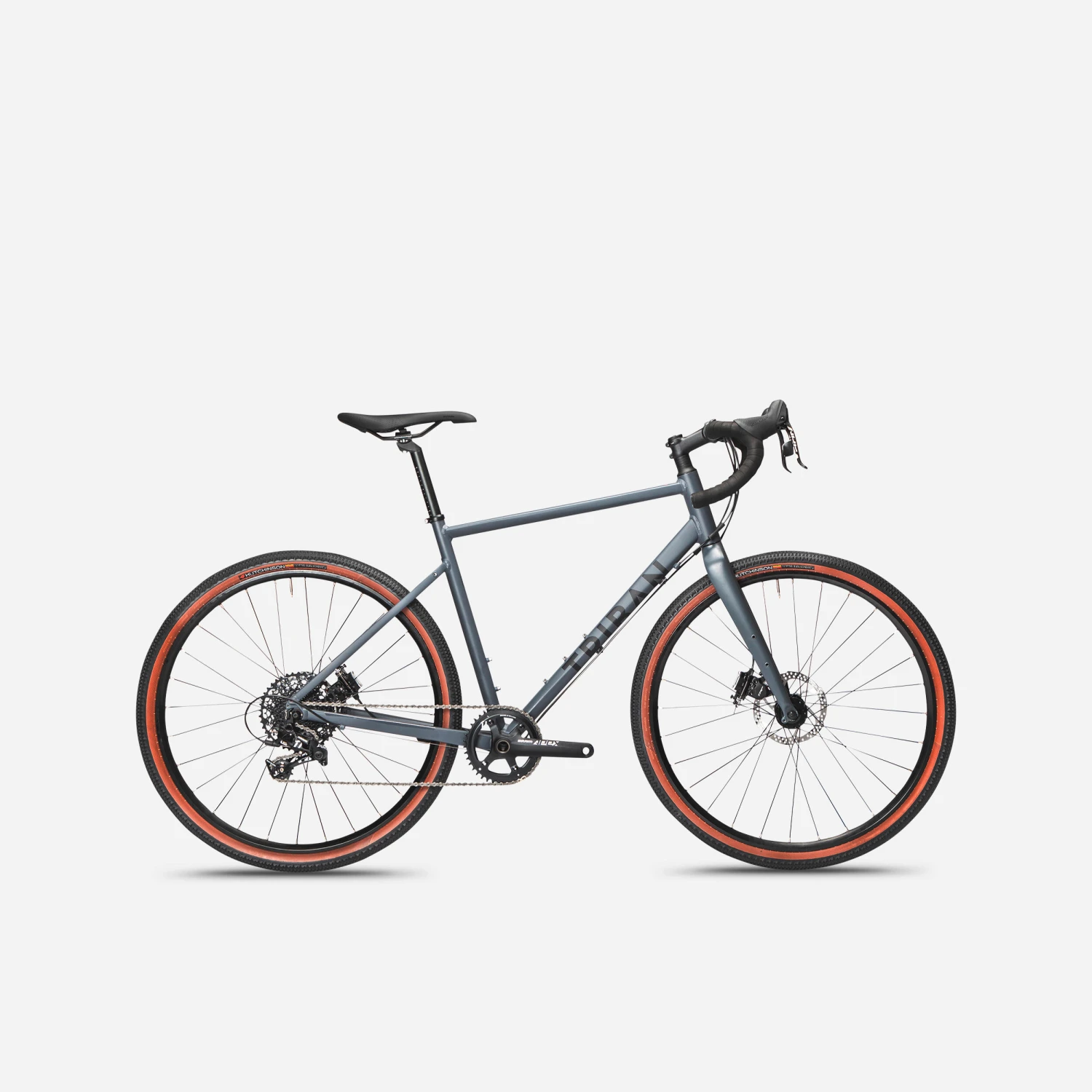

Gravel Bike Triban GRVL 520 Sram Apex

We have designed and tested this gravel bike for regular rides. It will guarantee comfort and power on windy trailsThis gravel bike has a new gravel-specific geometry, Gravel 650 wheels and 47 Tubeless Ready tyres, SRAM APEX1 40T 11/42 single chainwheel. Comfort and handling for better steering on winding trails

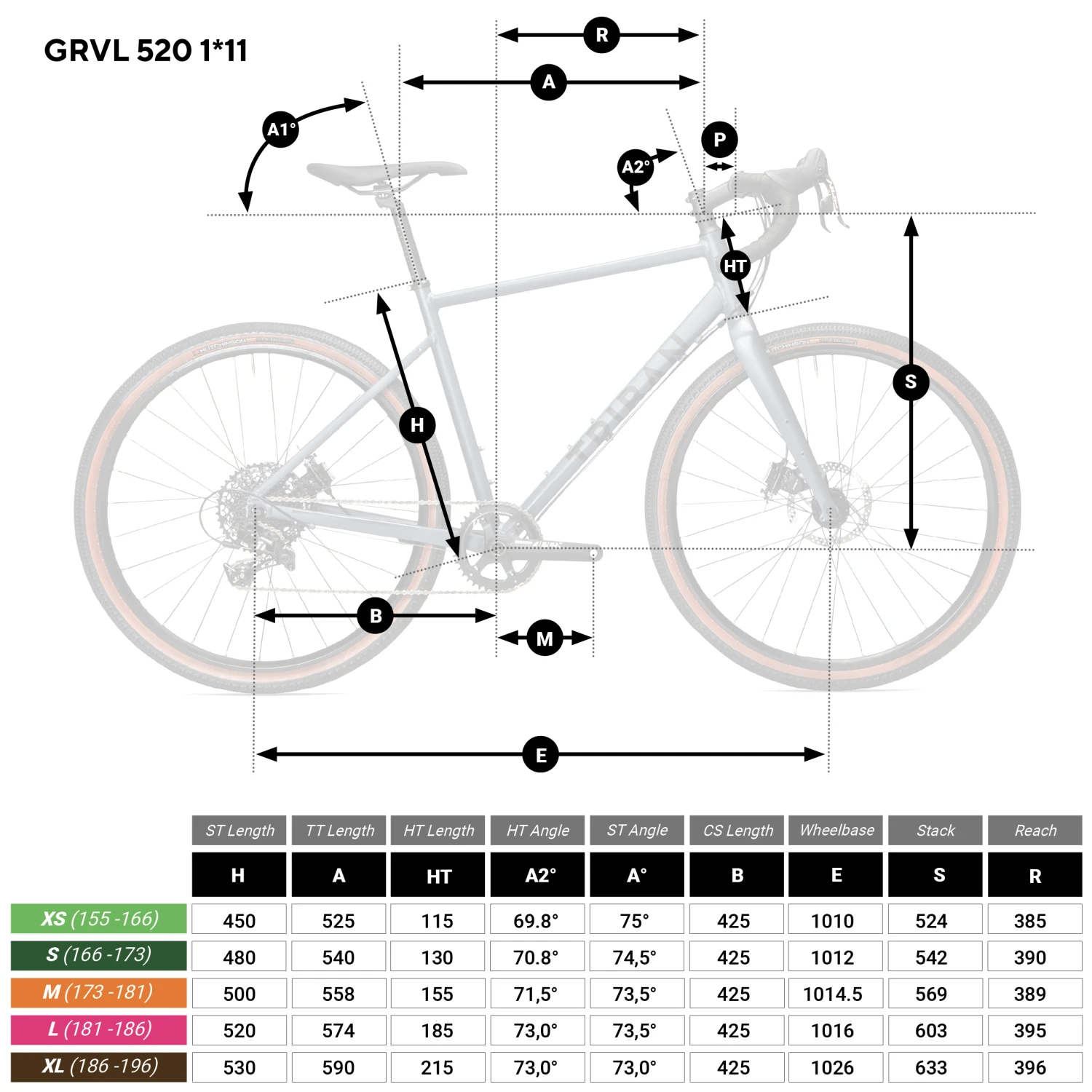

Choosing the right size bike

You should choose the size of your bike based on your height, as well as your build (arm span and leg length).
If you are between sizes, opting for the smaller size will give you a more comfortable position that makes it easier to tackle gravel trails.
XS 154 165
S 165 173
M 173 180
L 180 188
XL 188 200

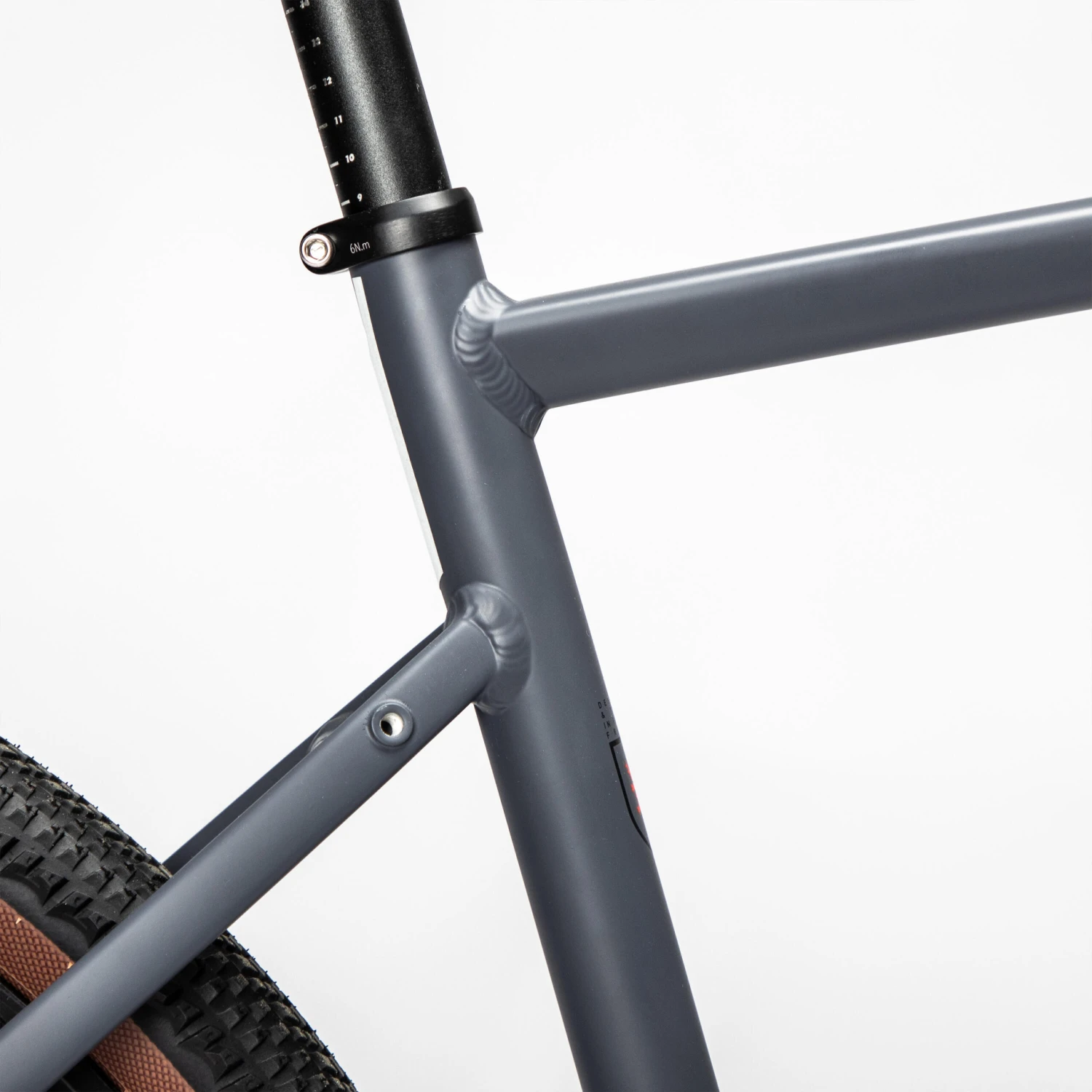

Frame

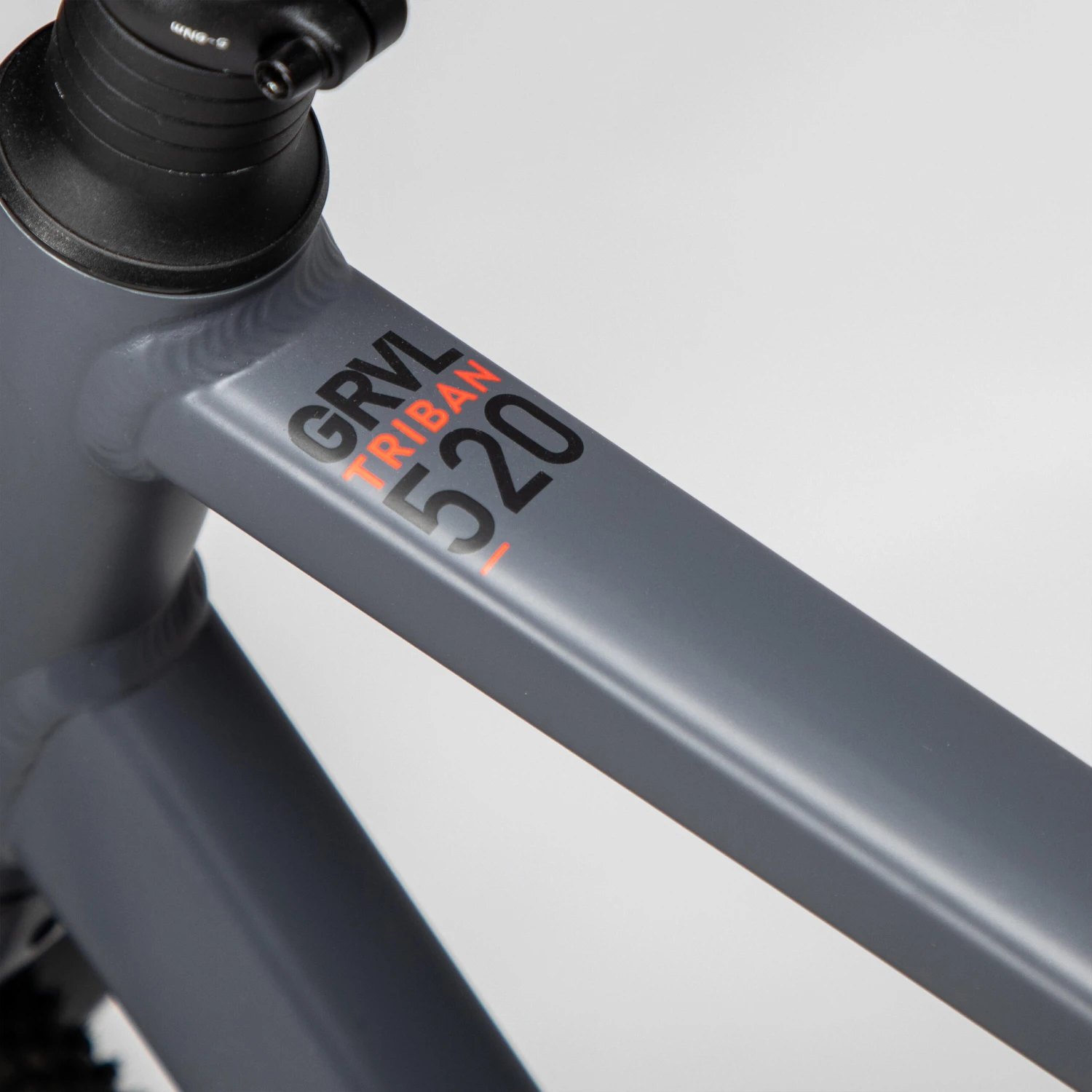

New Triban EvoG frame made of aluminium 6061 T6, with its new Triban GRVL gravel-specific geometry for a better balance between
comfort and steering.

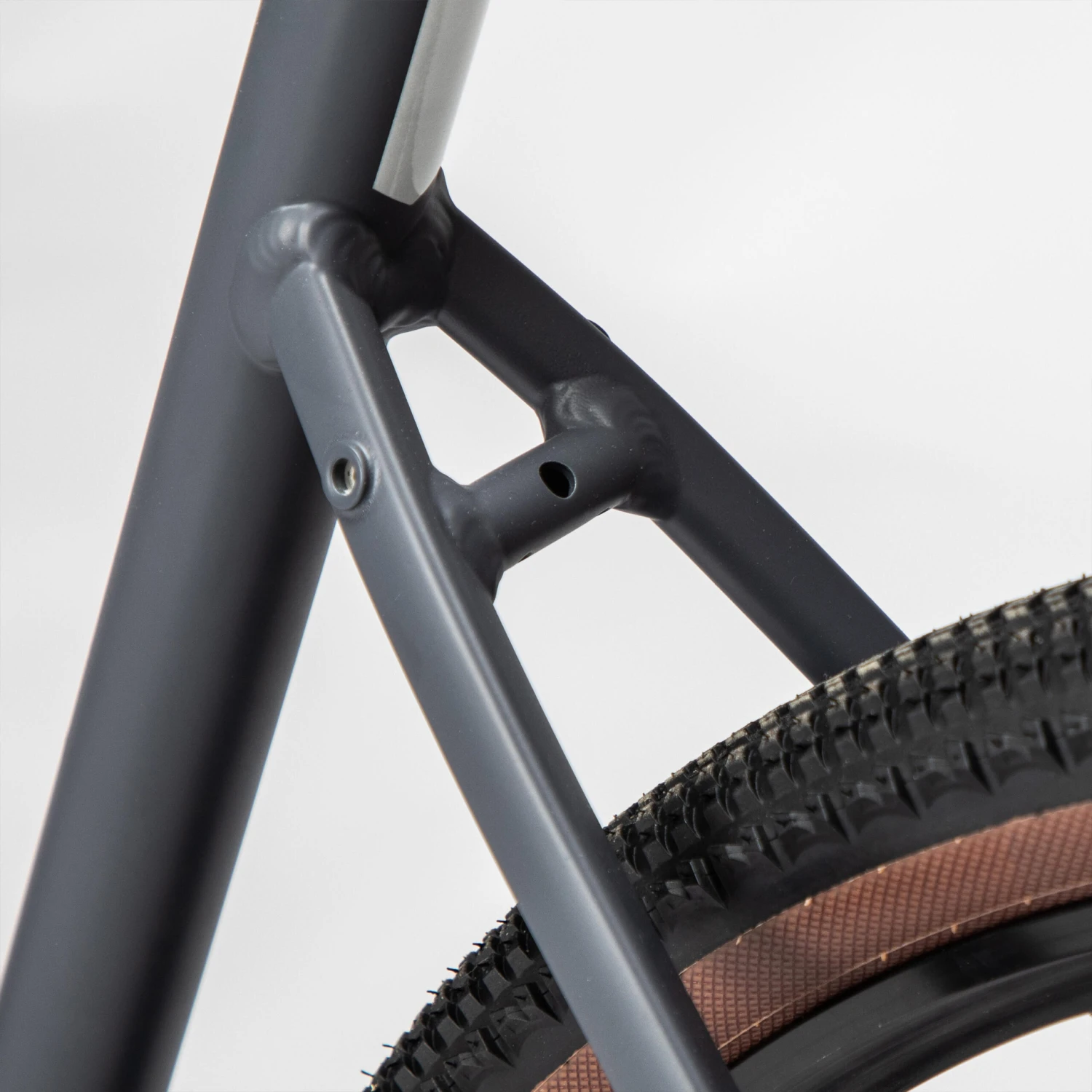

Strong, versatile frame: can install a mudguard and pannier rack
Weight: 1750 g in size M.9×135 axle spacing for a Quick Release QR axle / Flat mount brake calliper
Normative compatibility with tyre cross-sections up to 700.42 and 650.47

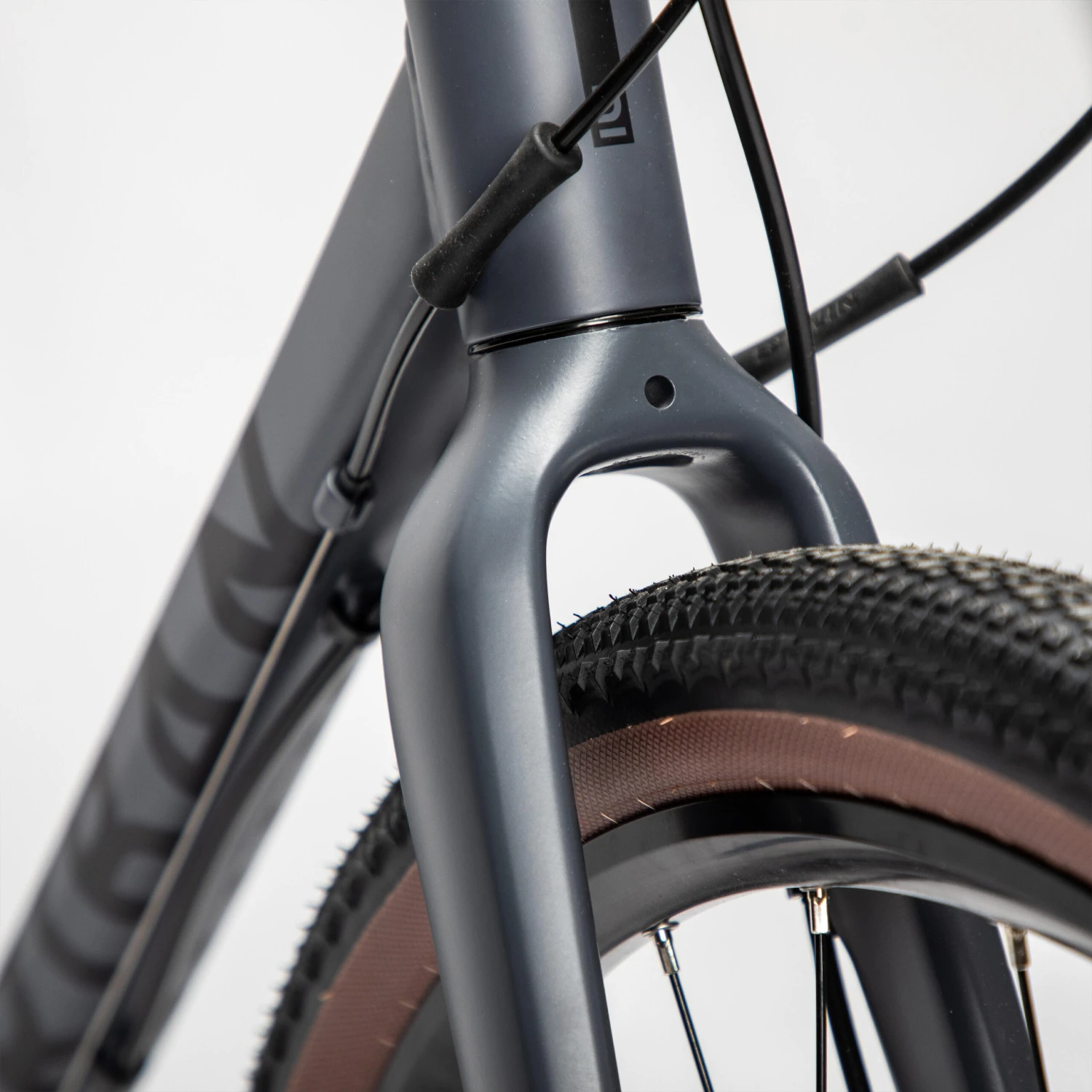

Fork

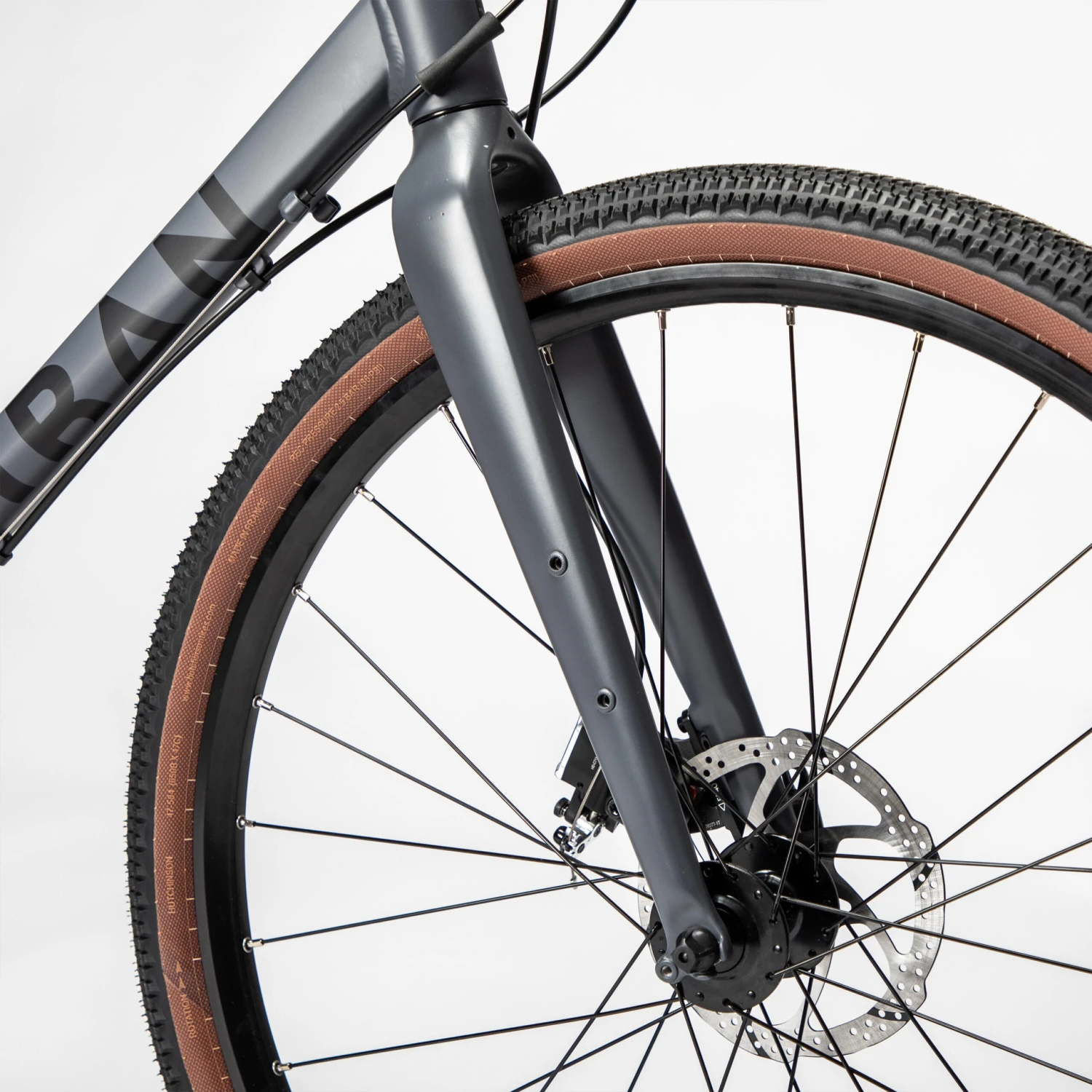

New Triban EvoG fork with carbon blades and aluminium 1″1/8 Aheadset steerer tube.
This fork combines comfort, low weight, and precision.
The carbon has been designed for good lateral rigidity and good filtering of frontal vibrations.
Flat mount calliper.

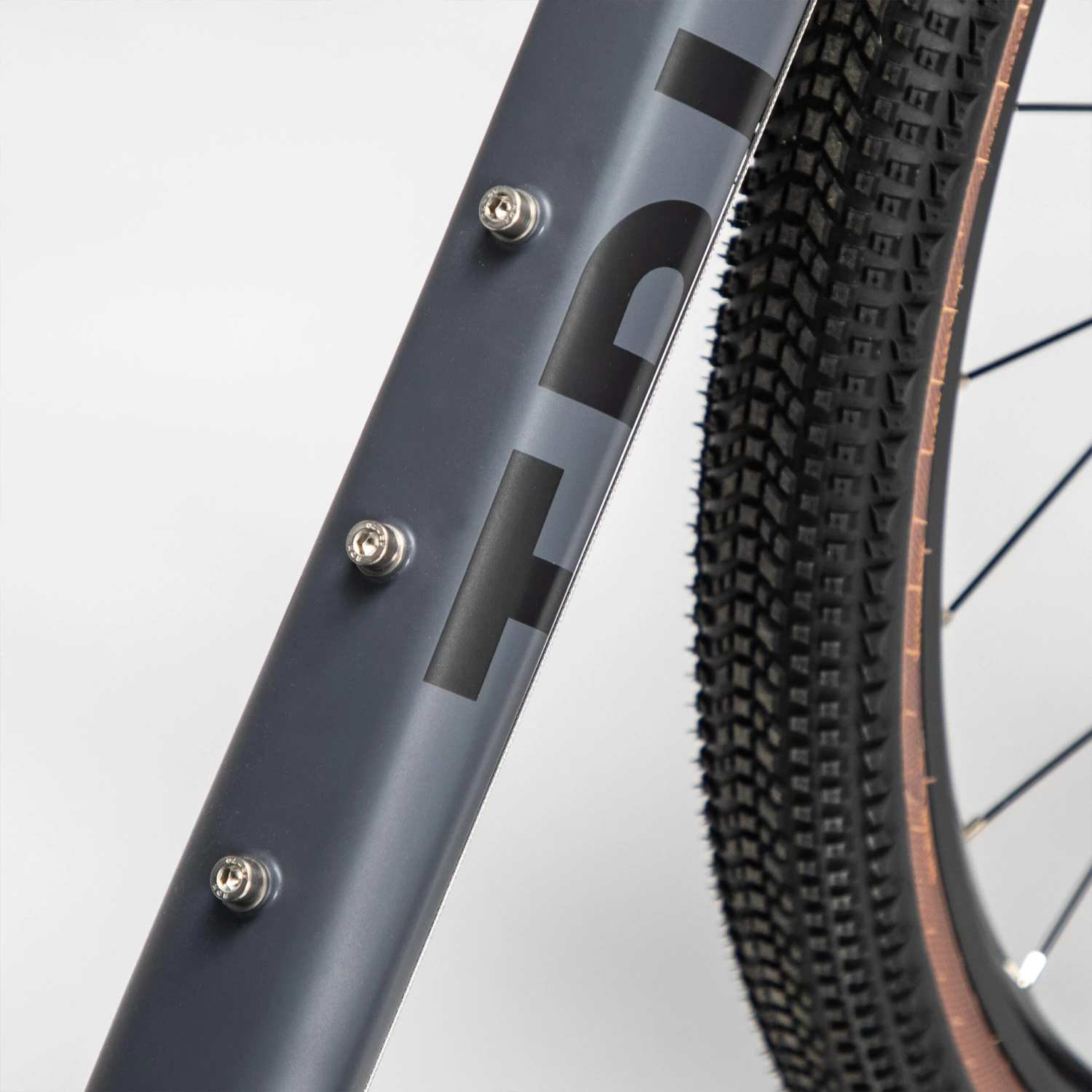

2 inserts on each blade for installing a front pannier rack or a bottle cage.
Maximum load on the fork: 10 kg
Compatible with tyres up to 700.42 / 650.47

Brakes

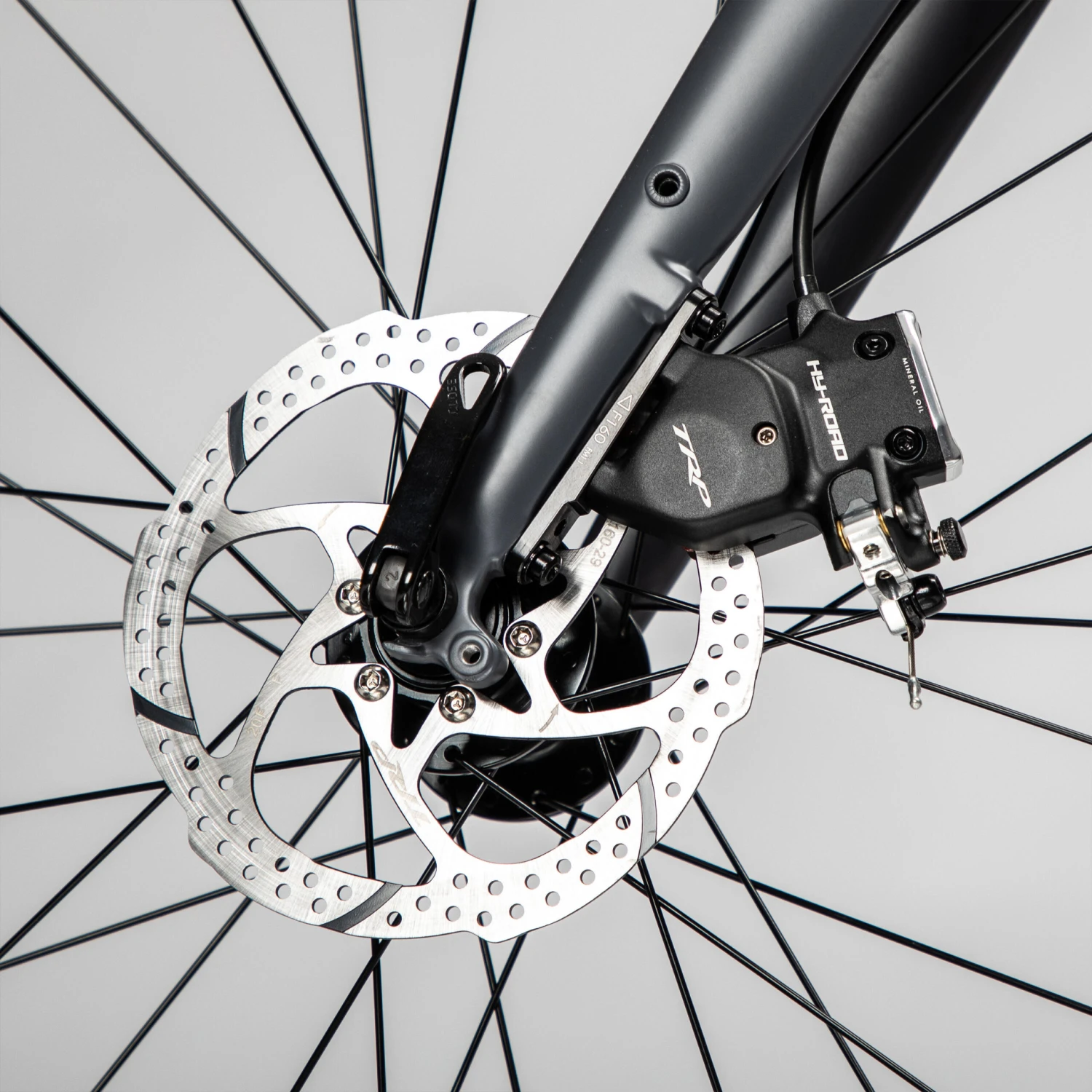

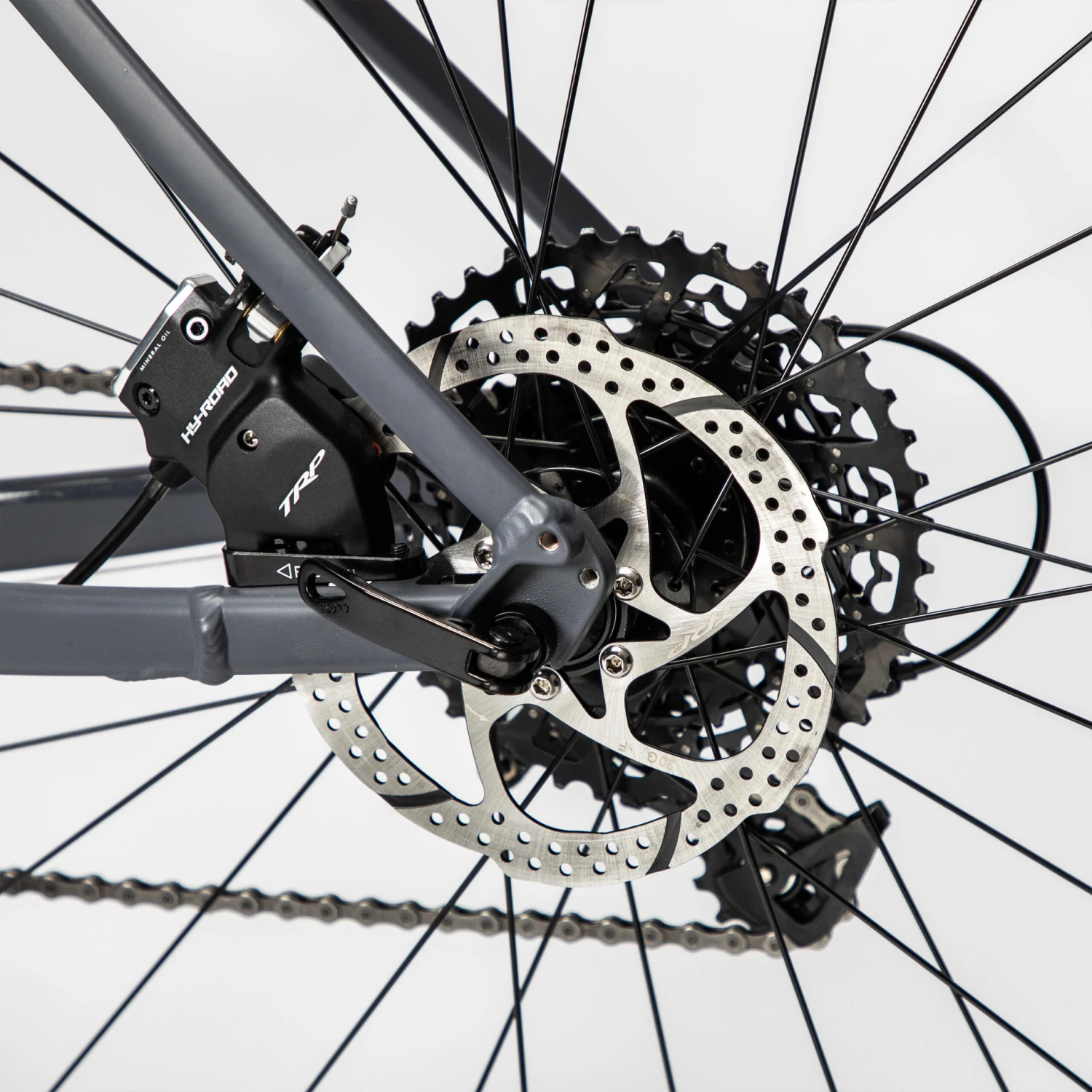

TRP HY/RD disc brakes.
Cable-operated hydraulic pistons, ensuring reliability and efficiency
160mm disc at the front and rear. Flat Mount assembly.
JAGWIRE anti-compression housing to ensure braking precision and efficacy
TRP semi-metallic plate (version M515/M525)

Drivetrain

Simple and effective with the SRAM APEX1 for winding and uneven trails

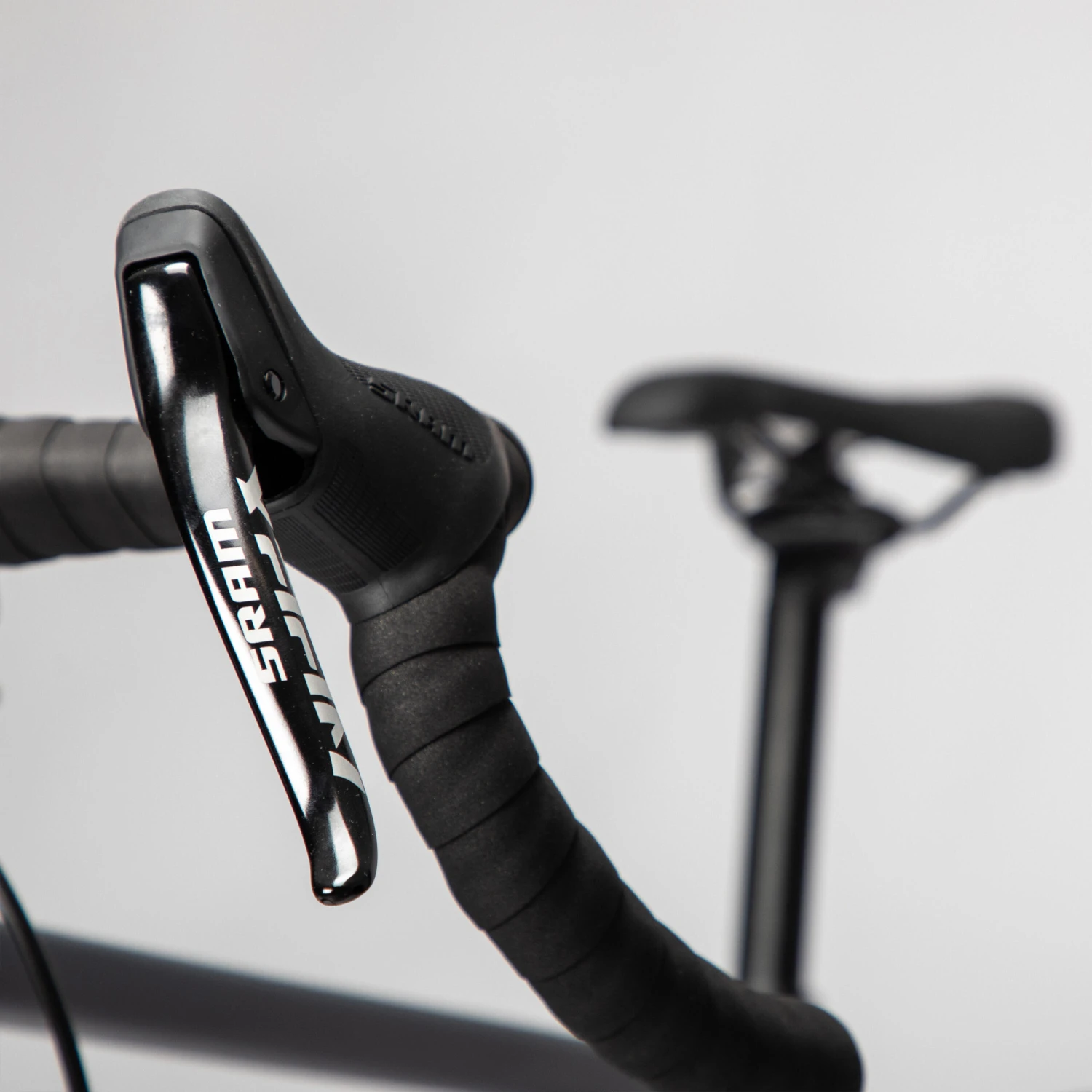

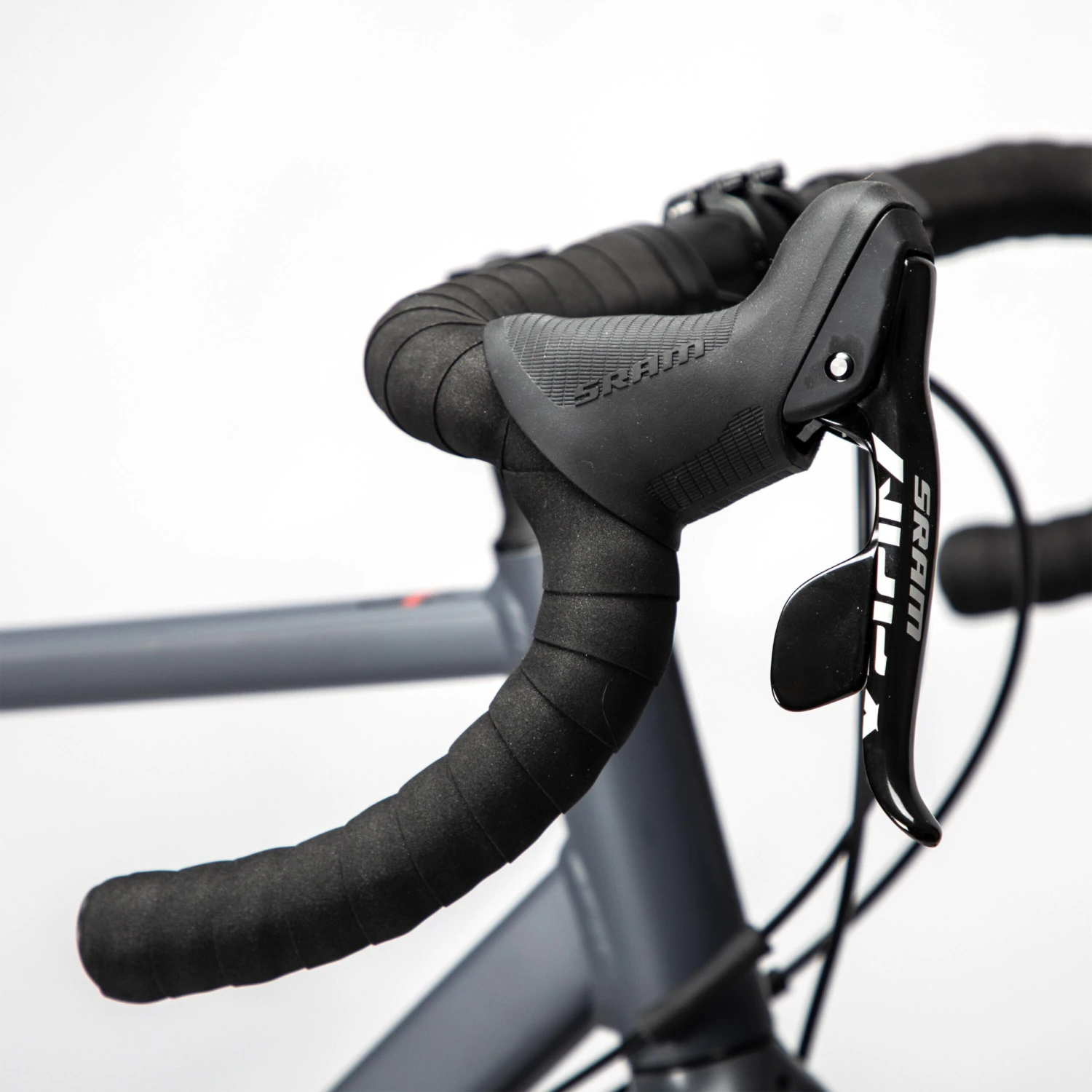

SRAM APEX 1 shifters

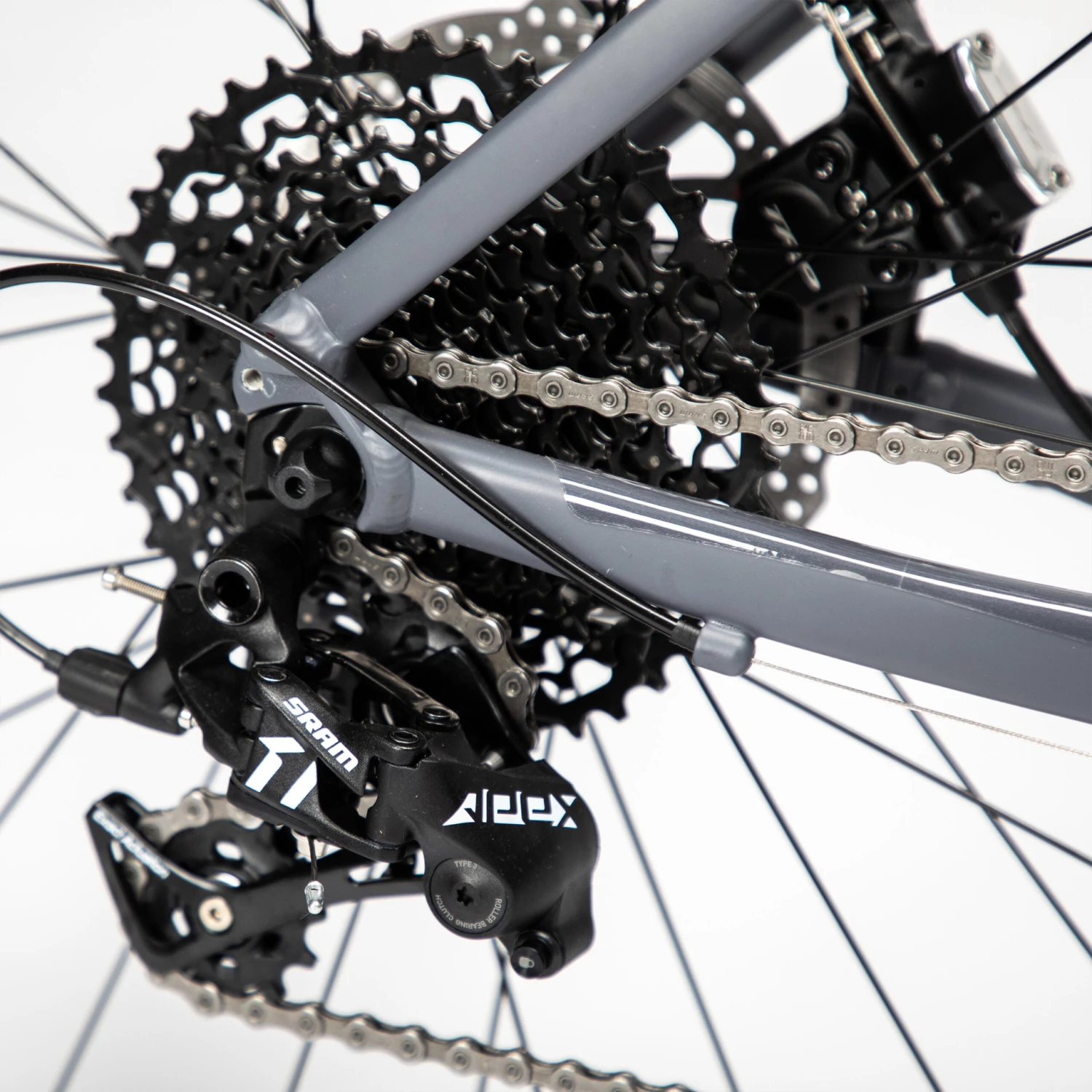

SRAM APEX 1 rear derailleur
Rear derailleur weight: 314 g
SRAM PC1110 chain
Chain weight: 273 g

Crankset / cassette

SRAM APEX 1 PG1130 11-42 cassette
(11/13/15/17/19/22/25/28/32/36/42)
Cassette weight: 528 g

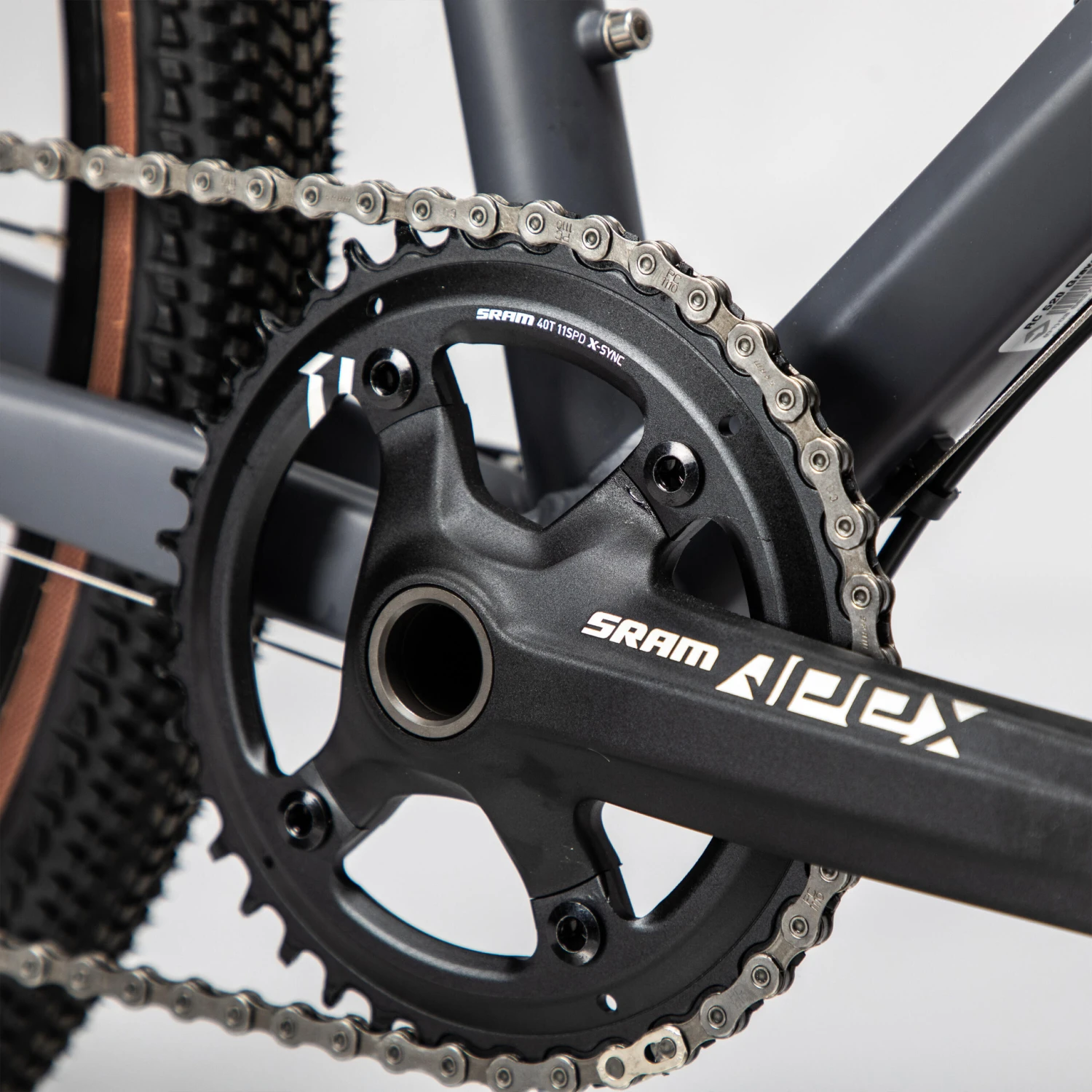

SRAM S350-1 APEX 1 40 chainset
Different crank lengths depending on the bike size:
XS, S: 170mm.M: 172.5mm.L, XL: 175mm.
Bottom bracket weight in 172.5: 790 g

Saddle/Seat post

Triban ErgoFit saddle. Hammock design for greater comfort. Aluminium Triban seat post.
Easy seat adjustment
Diameter: 27.2mm.
Length: 300 mm in size XS / S, 350 mm in size M / L / XL.
The natural flex of the seat post (thanks to its 27.2 diameter) allows you to filter vibrations and impacts for greater comfort

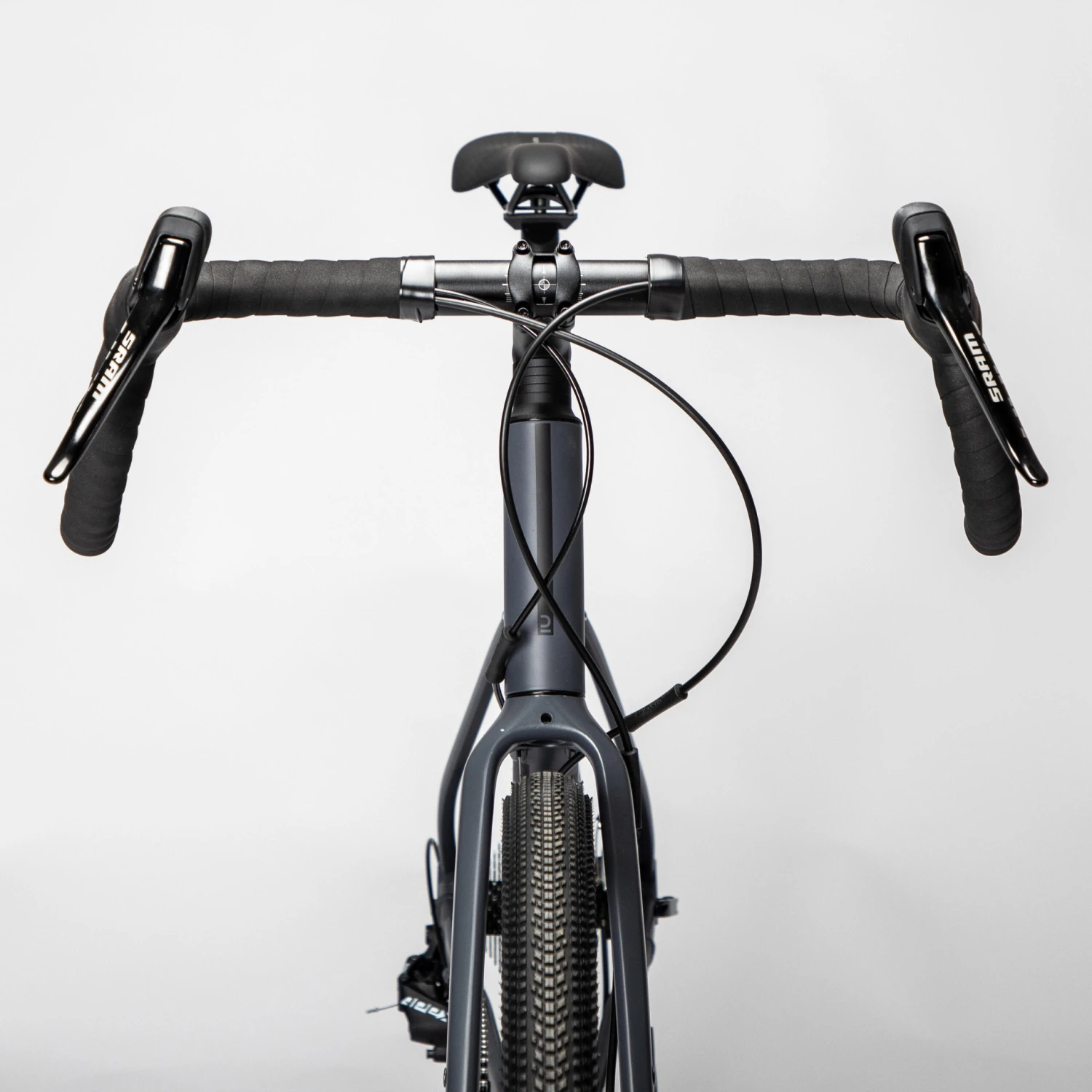

Handlebar / stem / steering

Triban aluminium gravel handlebars with a 16° flare for better grip and excellent comfort.
Handlebar width end to end:
XS / S: 420 mm.M / L: 440 mm.XL: 460mm.Stem: XS:60 mm
S: 70mm.M: 80mm.L: 90 mm.XL: 100mm

Wheels

Triban Gravel 650x23c Tubeless Ready wheels for effective steering and comfort on winding and uneven trails
6063 T66 aluminium.
ETRTO dimensions: 584″ x 23″Height: 19 mm
Crossed steel spokes (28 front and 28 rear).
Sealed cartridge bearings.9×100 front, 9×135 rear QR axle
Weight per pair (without cassette and QR): 2.15 kg
TESA TLR* rim strip
*For converting to tubeless, add 2 tubeless valves (product ref: 8551979) + tubeless anti-puncture liquid sealant (product ref: 8363393)

Tyres

Hutchinson Touareg 650×47, Tubeless Ready tyres with hardskin puncture protection
585 g per tyre
Skinwall dual-rubber flex bead
127 TPI carcass
Dimensions: ETRTO 47-584 / 650x47c
Min inner tube pressure: 2.5 bar / 38psi
Max inner tube pressure: 3.5 bar / 51 psi

Tubeless pressure: 2.5 to 3 bar (85 kg rider)

Tyre compatibility

This bike can be equipped with tyres up to 700.42 or 650.47
Minimum compatibility requirements: 23c wheels and tyres with a cross-section of 37

Pedals

Platform pedals included with the bike.We recommend either flat or SPD pedals

Bike weight

10.9 kg in size M, without pedals
