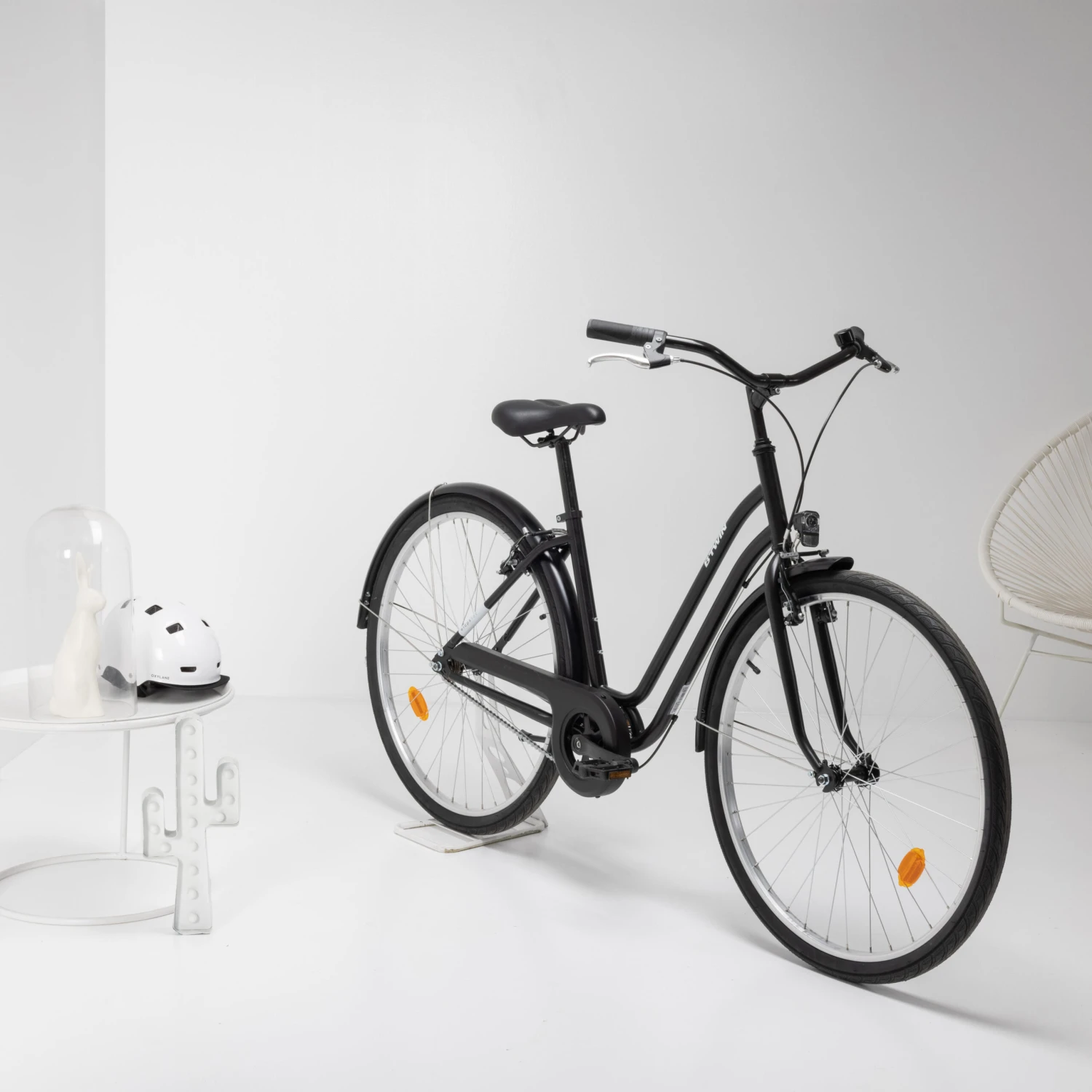

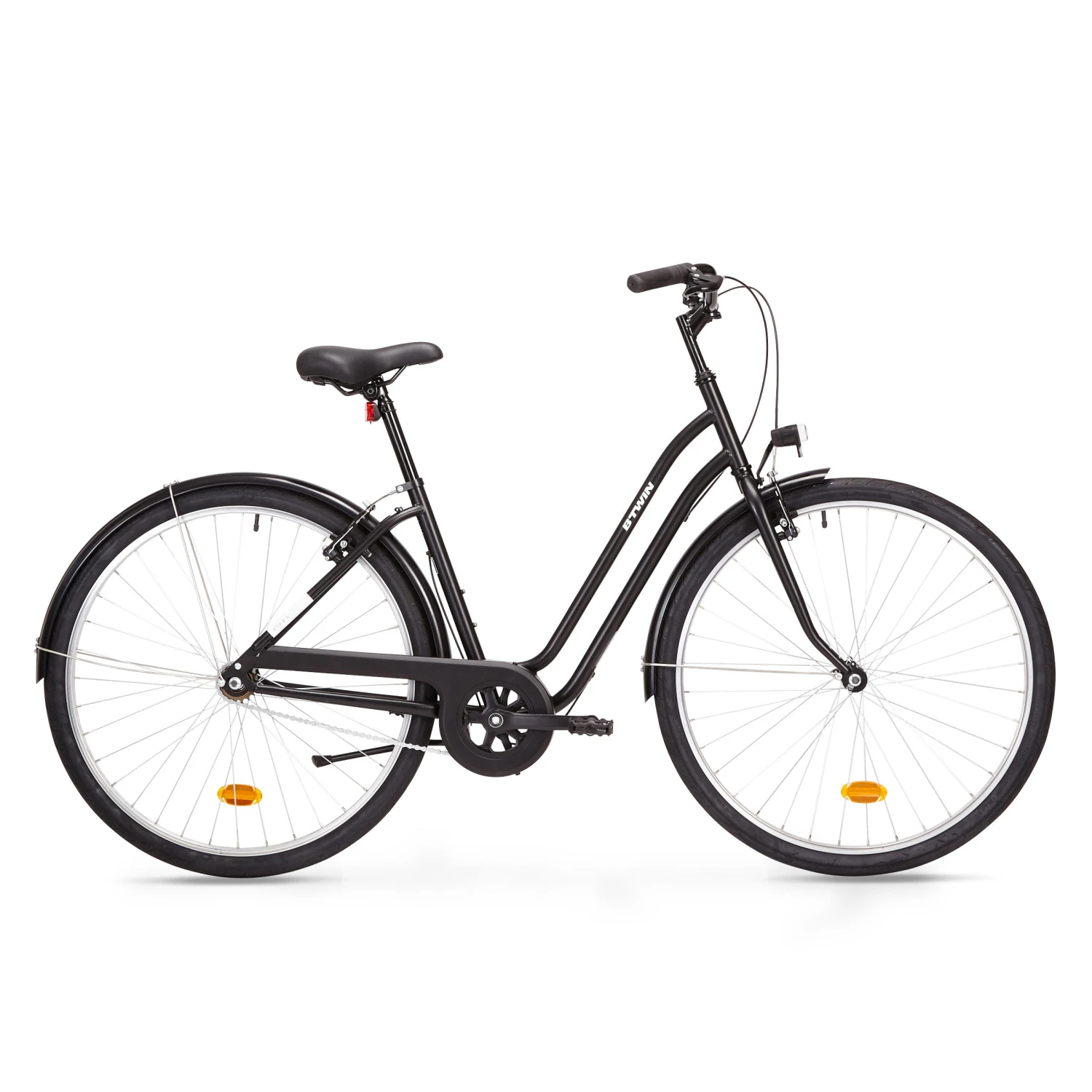

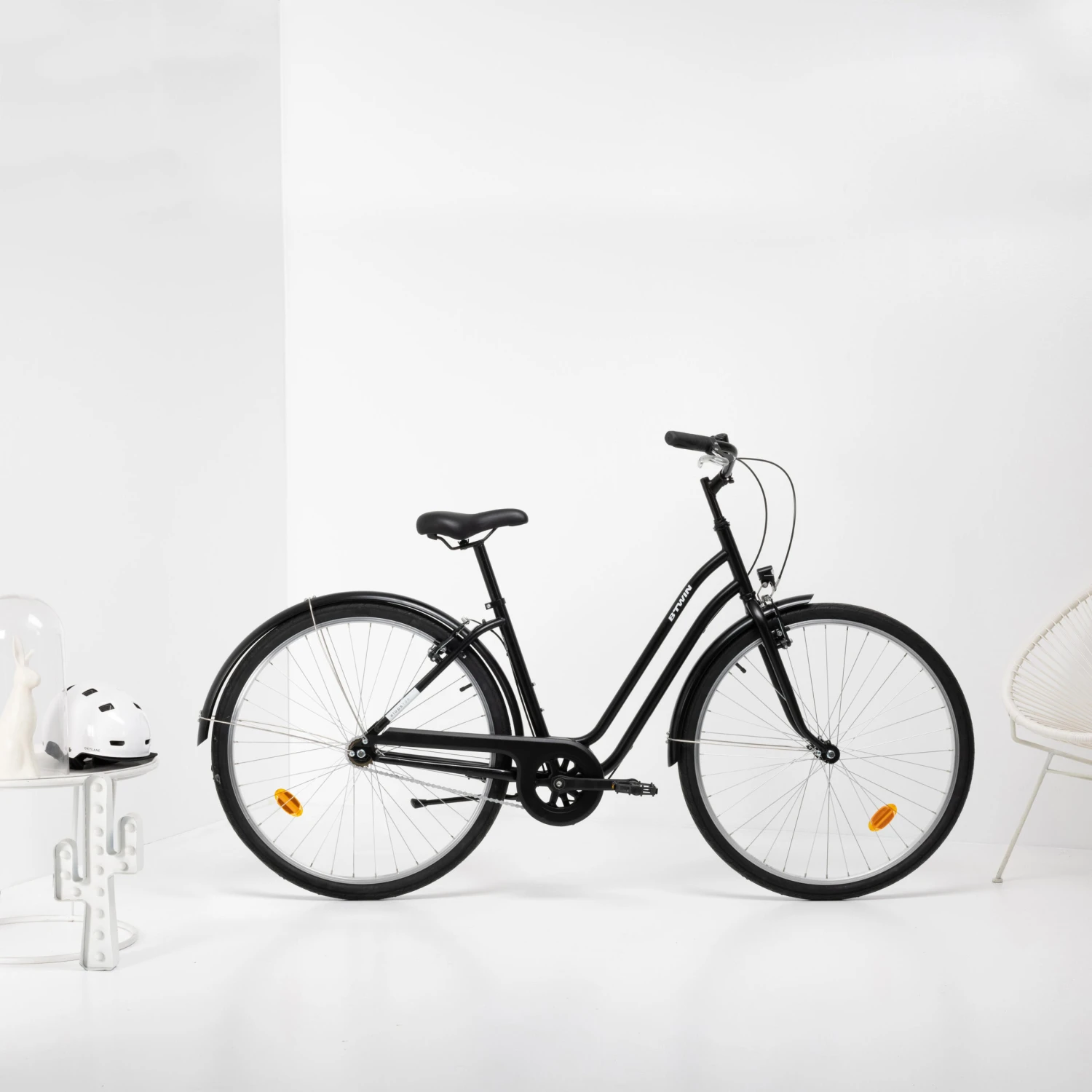

CITY BIKE ELOPS 100 LOW FRAME

Our passionate team developed this bike for riding in town occasionally… and having fun!Go for a ride in the city on this simple and comfortable roadster bike.

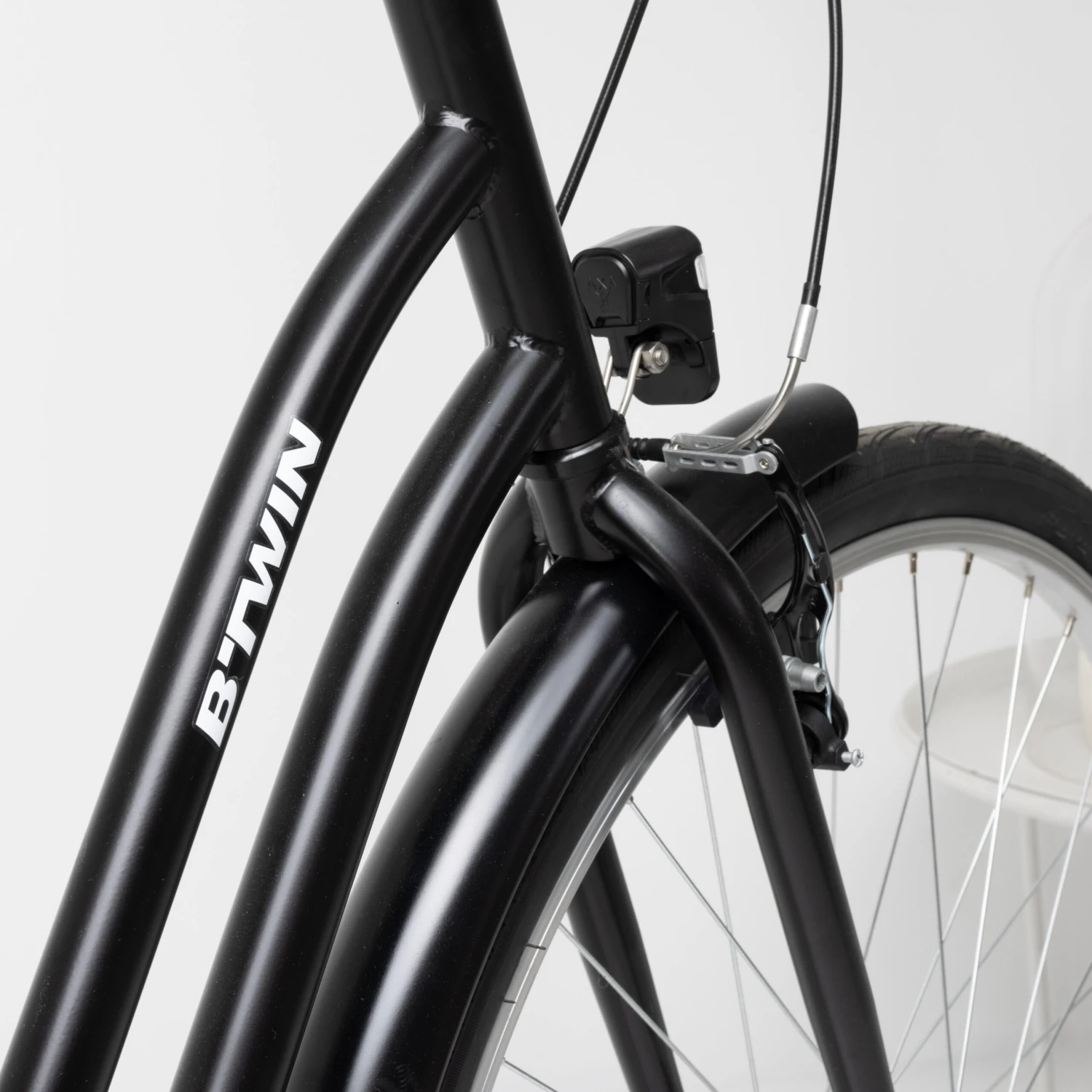

Frame

Made with a steel frame to better absorb vibrations from the road, making your ride more comfortable.
Available in both step-over and step-through frame models to make it easy for anyone to ride.
Frame weight (steel): 4 kg.

Fork

Steel fork to absorb the small bumps in the road and keep you more comfortable as you ride.

Braking

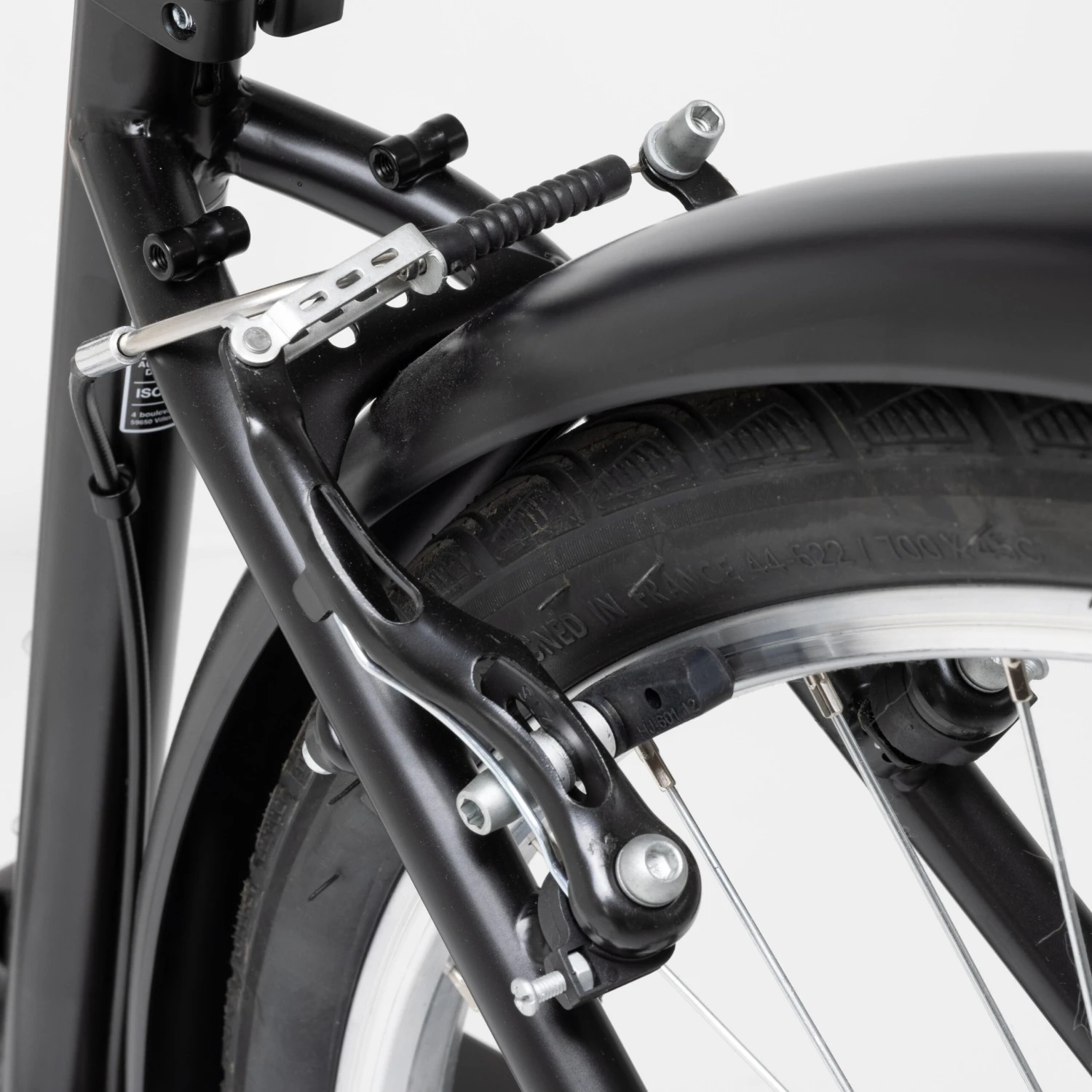

V-brake steel brakes in front and rear. Aluminium brake levers.

Handlebar / stem / steering

Dutch-style handlebar and damper stem
(22.2 mm diameter), made of steel with a black finish, that can be raised for a more comfortable, upright riding position.

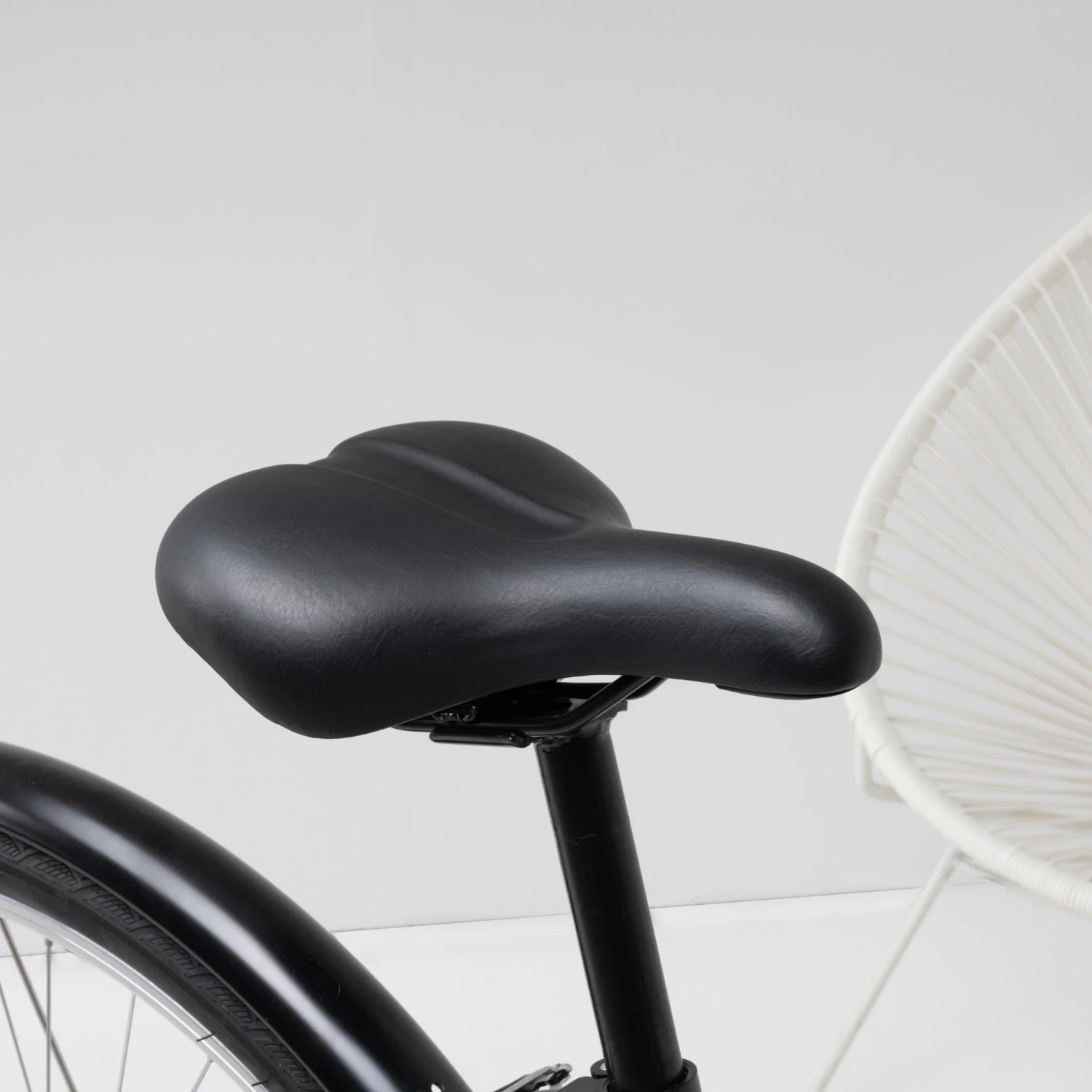

Saddle/Seat post

Height-adjustable seat post (28.6 mm diameter), made of steel to more effectively absorb vibrations and provide a more comfortable ride. Wide saddle whose foam padding varies in hardness based on the pressure points between your bum and the saddle. Saddle is set at a 12° angle for greater comfort; welded in place for added safety. Lockable seat clamp (diameter: 31.8 mm) so opportunist thieves can’t steal your saddle / seat post.

Visibility

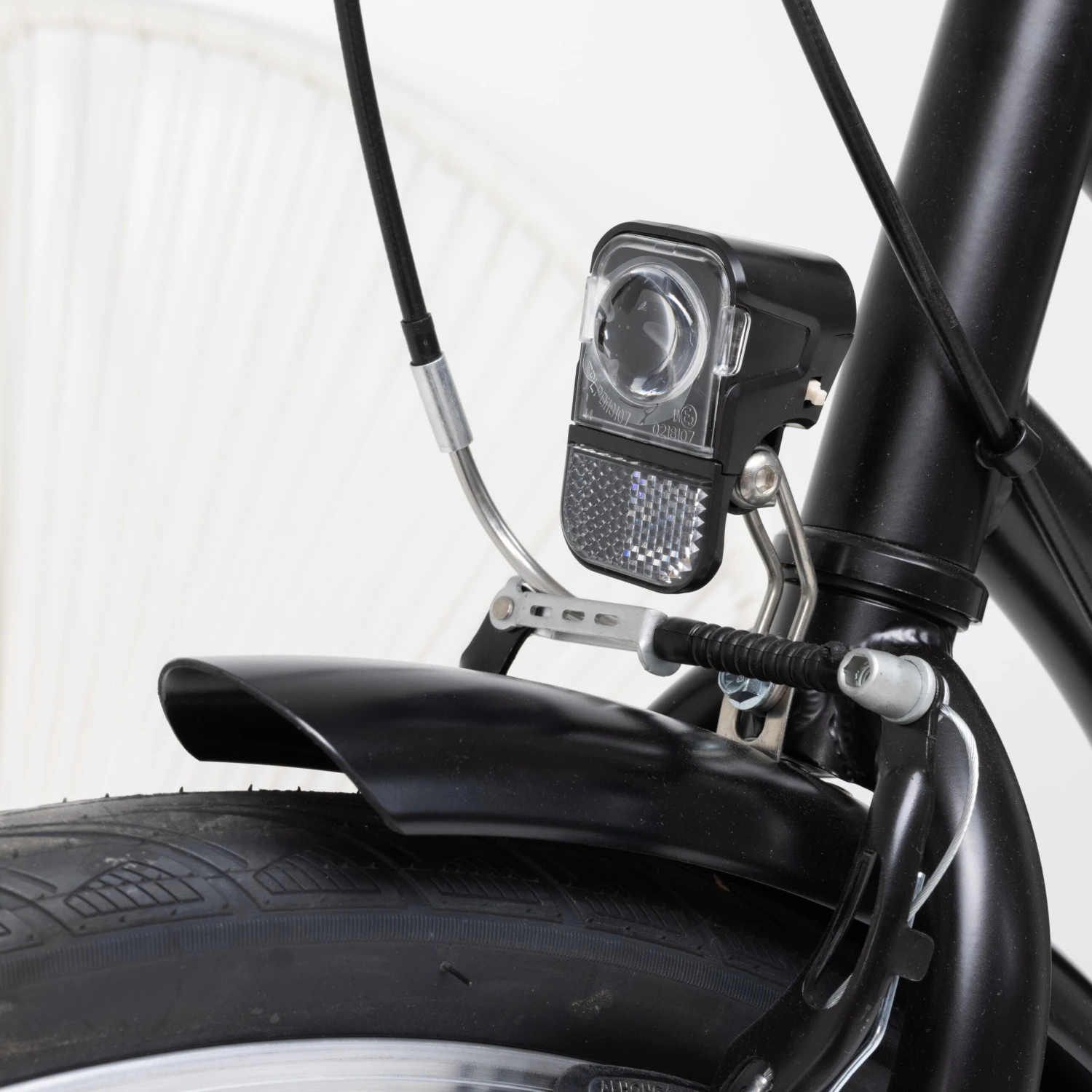

Battery-powered front and rear lights come standard on every bike. Rear reflector attached to pannier rack.

Drivetrain / Pedals

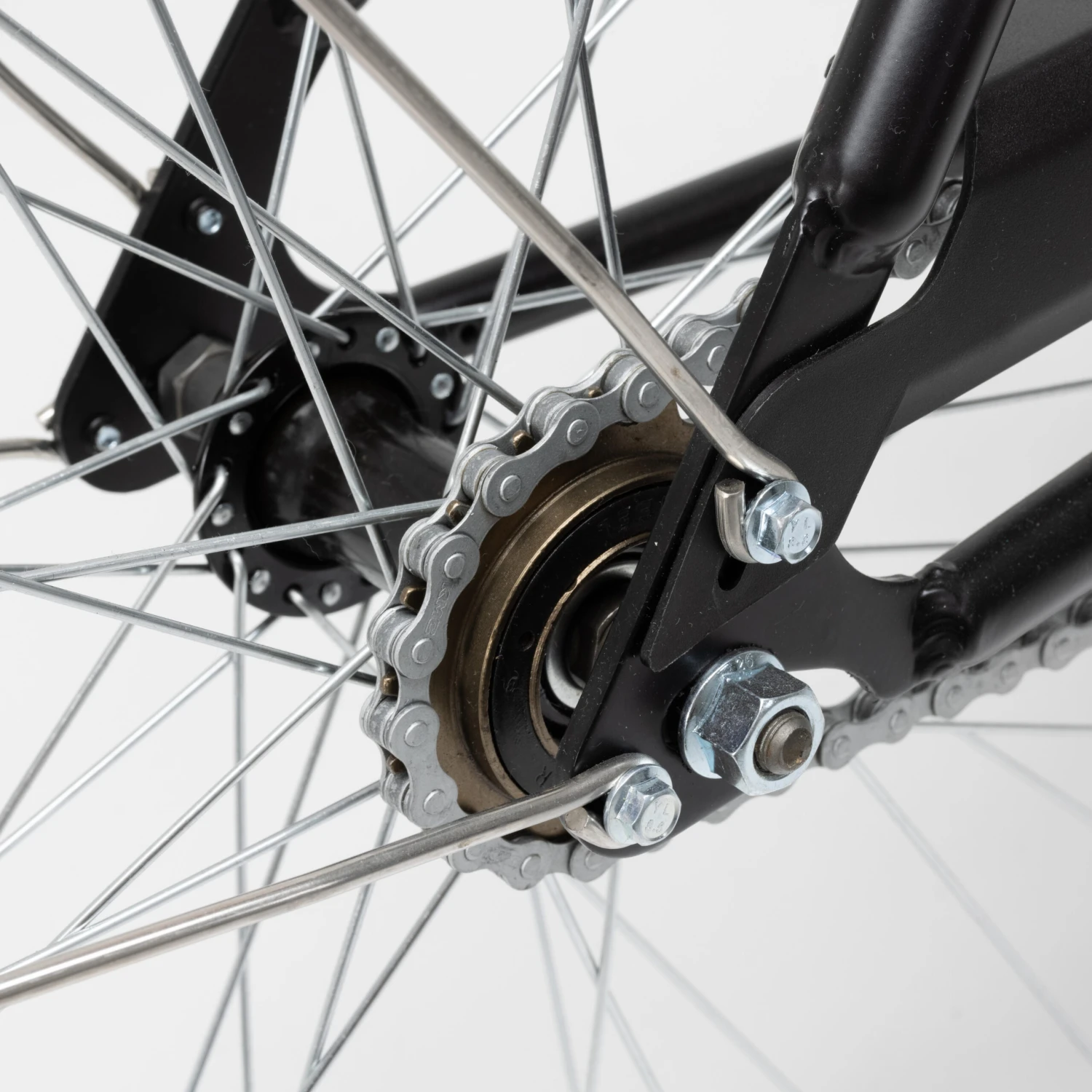

Single-speed drivetrain for ease of use. 38-tooth single chainring, 170 mm steel cranks, 18-tooth rear cog, KMC chain with rust-proof coating. Single gear ratio: 4.64 m.

Wheels

28″ aluminium single-walled front and rear wheels, 36 spokes.
Why did we choose this size wheels? Because it provides our users with the added comfort and rolling quality that this size wheel delivers. The front and rear wheels are securely fastened with bolts to deter theft. To remove the front wheel (such as when transporting the bike inside a vehicle for example), use a 15 mm flat spanner or wrench to loosen the nut. 9 mm threaded wheel axles.

Tyre

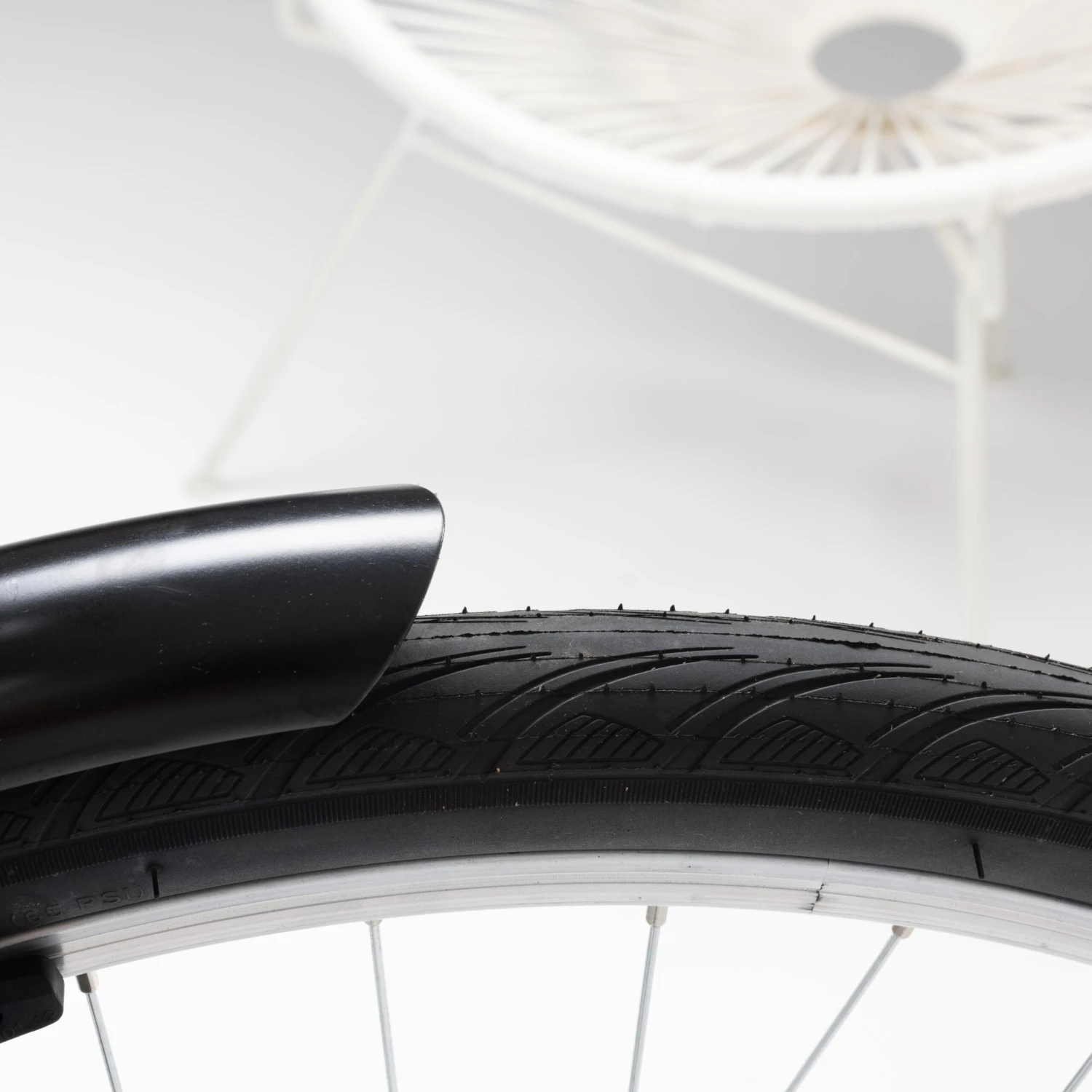

700×42 low-pressure tyres to smooth out bumps in the road and keep you more comfortable as you ride. Schrader valves make the tyres easier to inflate (at petrol stations too).
Ideal tyre pressure is between 3.5 and 4 bar.

Equipment

Front and rear mudguards, centrally-mounted bike stand, chain guard, battery-powered front and rear lights.

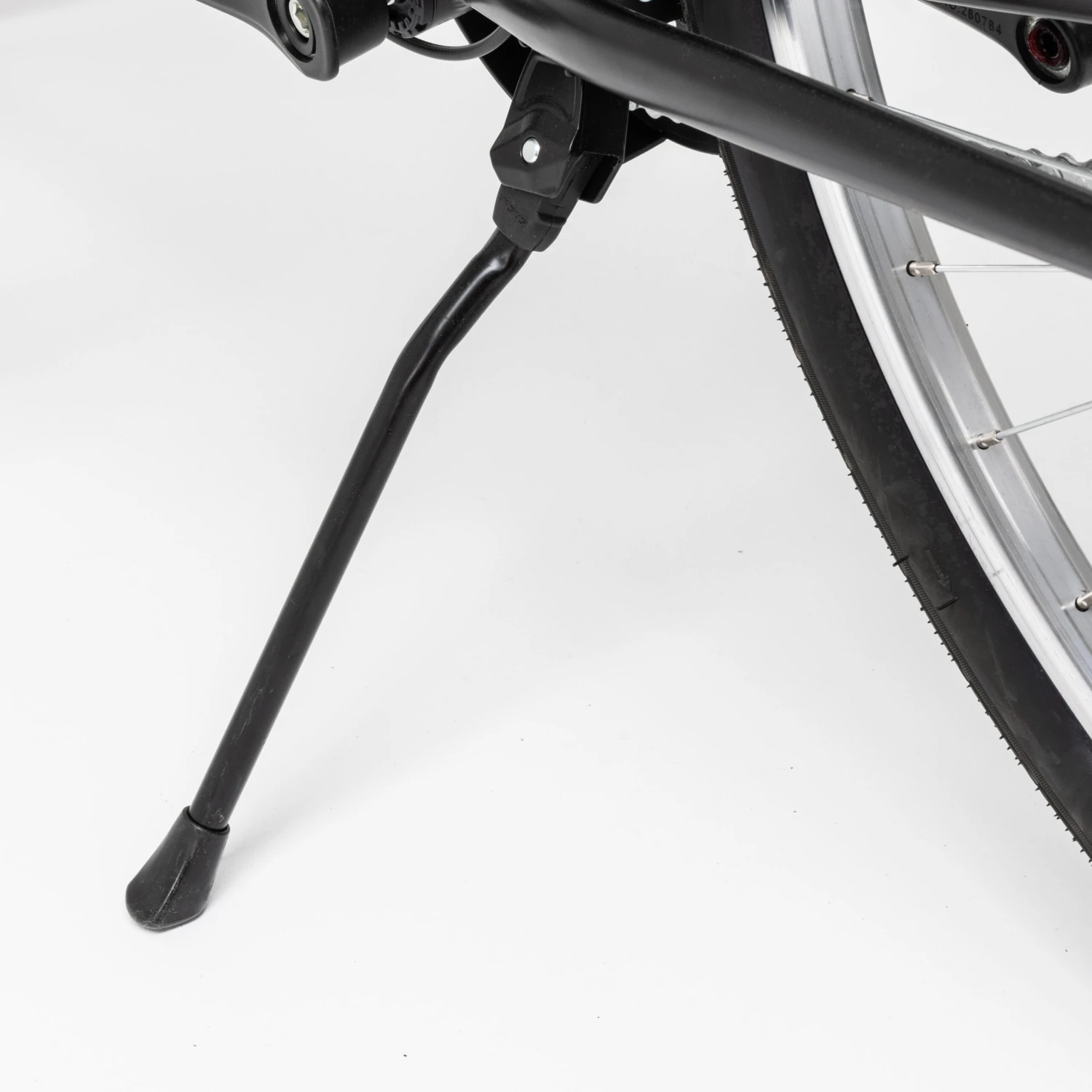

Stand

Centrally-mounted stand makes it easy to park your bike at each stop.

Compatible Accessories

The frame is fitted with mount bolts: – on the seat tube, to attach a folding lock, – on the frame’s rear triangle, to attach a Ringlock type lock that blocks the rear wheel when the bike is parked.

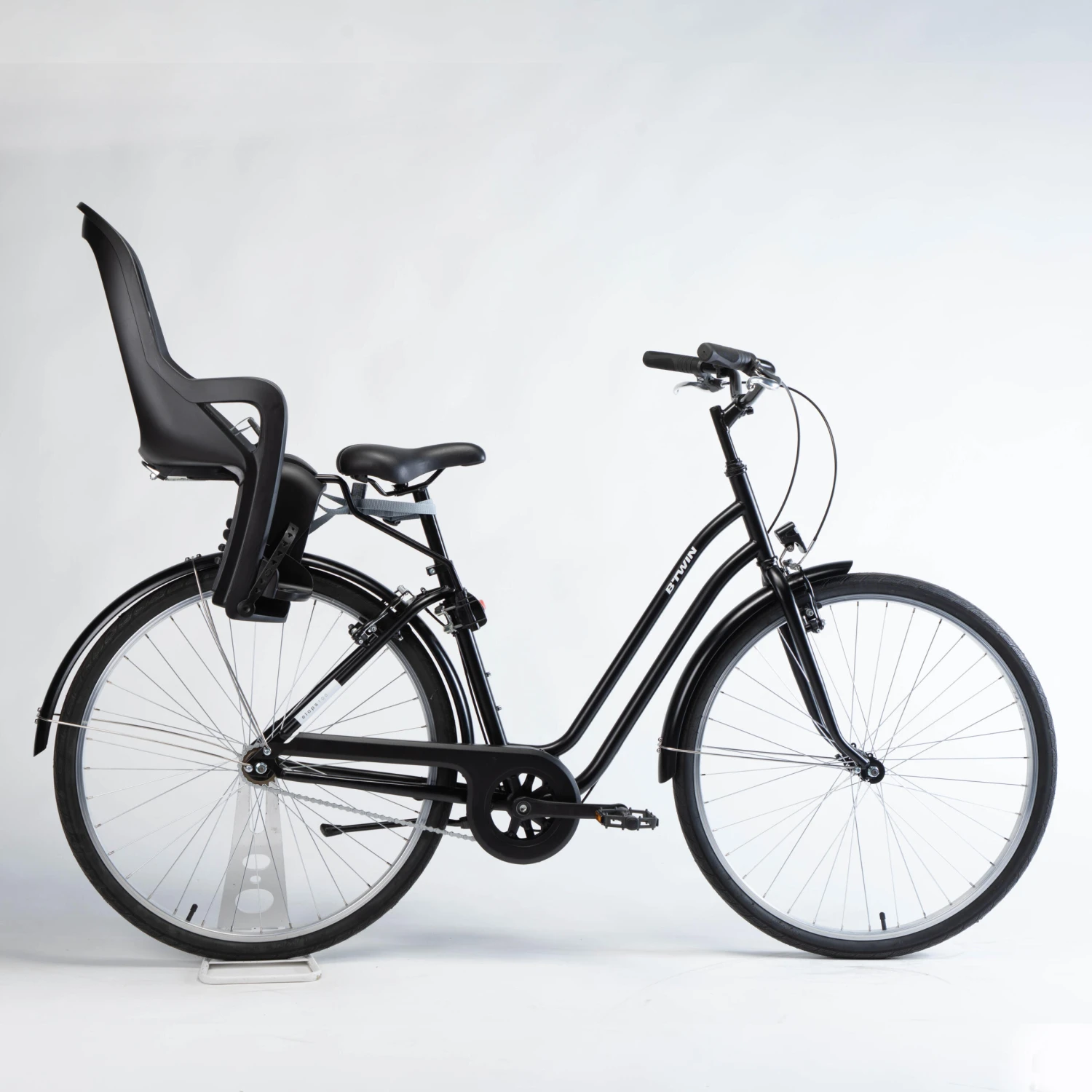

Handlebar is compatible with our 12L 500 front pannier basket. A rear pannier rack can be mounted onto the frame.

CHOOSING YOUR SHOE SIZE

Single size, to be used by anyone! Step-through frame designed for riders measuring 1.55 m to 1.75 m

Bike weight

Single size: 15.3 kg.

Maximum weight

This bike supports a maximum total weight of 100 kg (bike + rider + load).

CARE TIPS

To prevent punctures and to get the most out of your bike, check the tyre pressure every fortnight when you’re using the bike daily, or before each ride if you only use it occasionally. Degrease and lubricate the chain as soon as dirt begins to accumulate. Wash the frame with soapy water; do not use a high pressure water jet.

Storage/transport tips

Store your bike in a dry, cool place. If riding near the sea, clean your bike regularly to protect it from salt damage.
Transporting the step-through frame model on a tow bar bike rack requires an adapter.

Use restrictions

Not suitable for off-road use. This Dutch-style town bike has very wide handlebars, so take care when riding along narrow passages indoors or outdoors.

Design

Designed by our team of engineers and designers in Lille, France.Assembled in the European Union.

A word from the team

“Riding a bike around town is one of the best alternatives to using a car, and an efficient way to get from A to B. To help you get the most out of this transportation mode, and to be prepared for any eventuality, be sure to take along essential safety items such as a helmet, two bike locks, rain anorak, and extra lights.”
