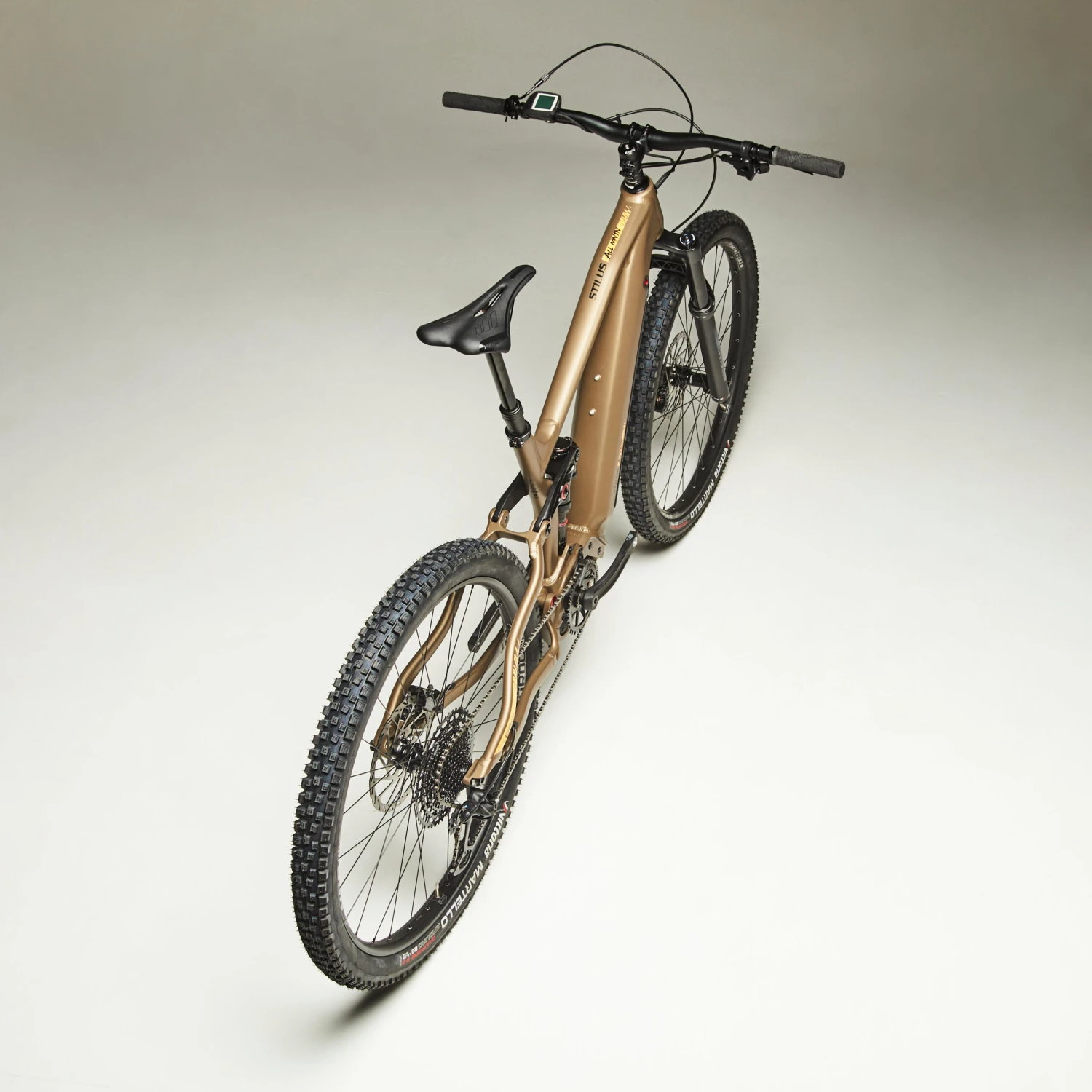

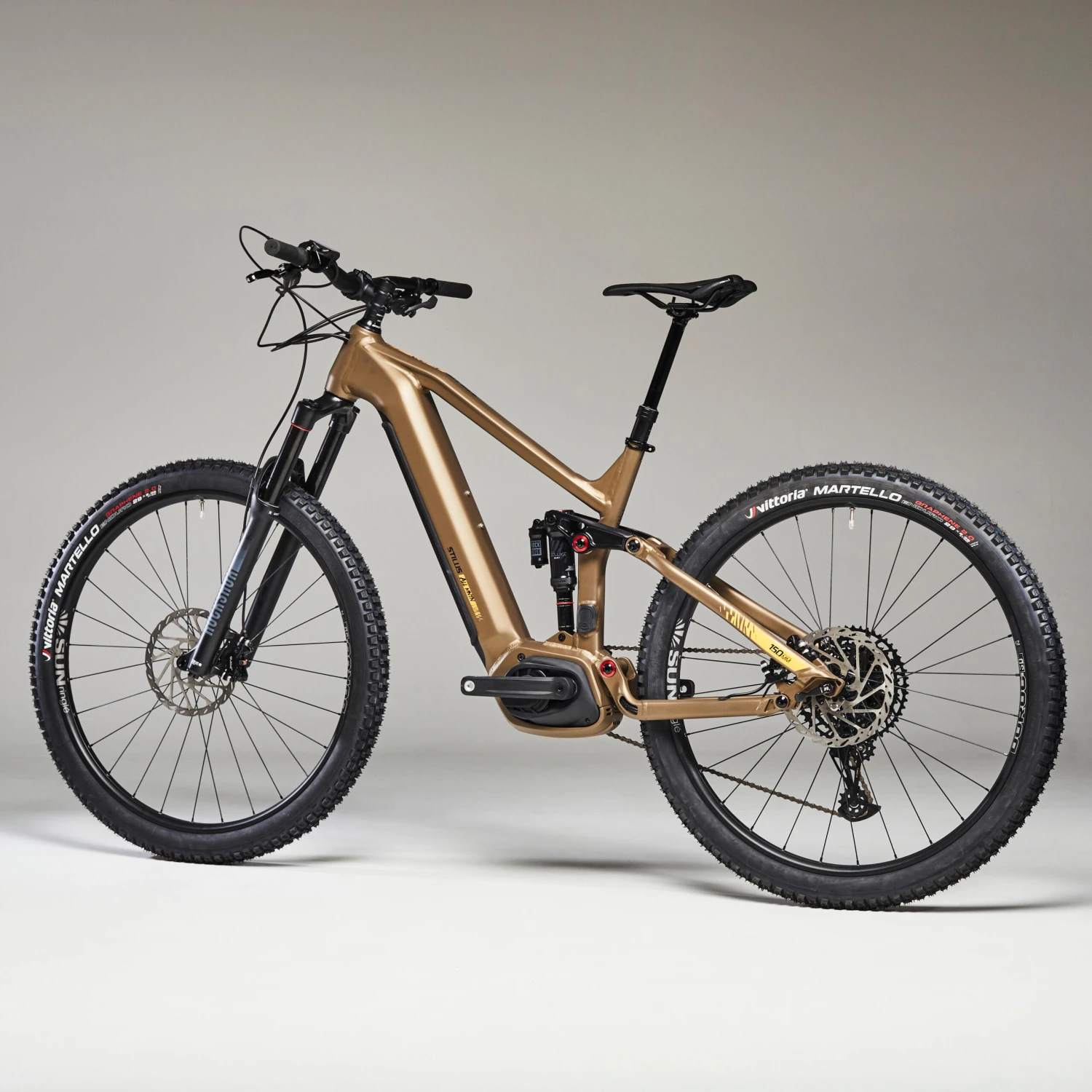

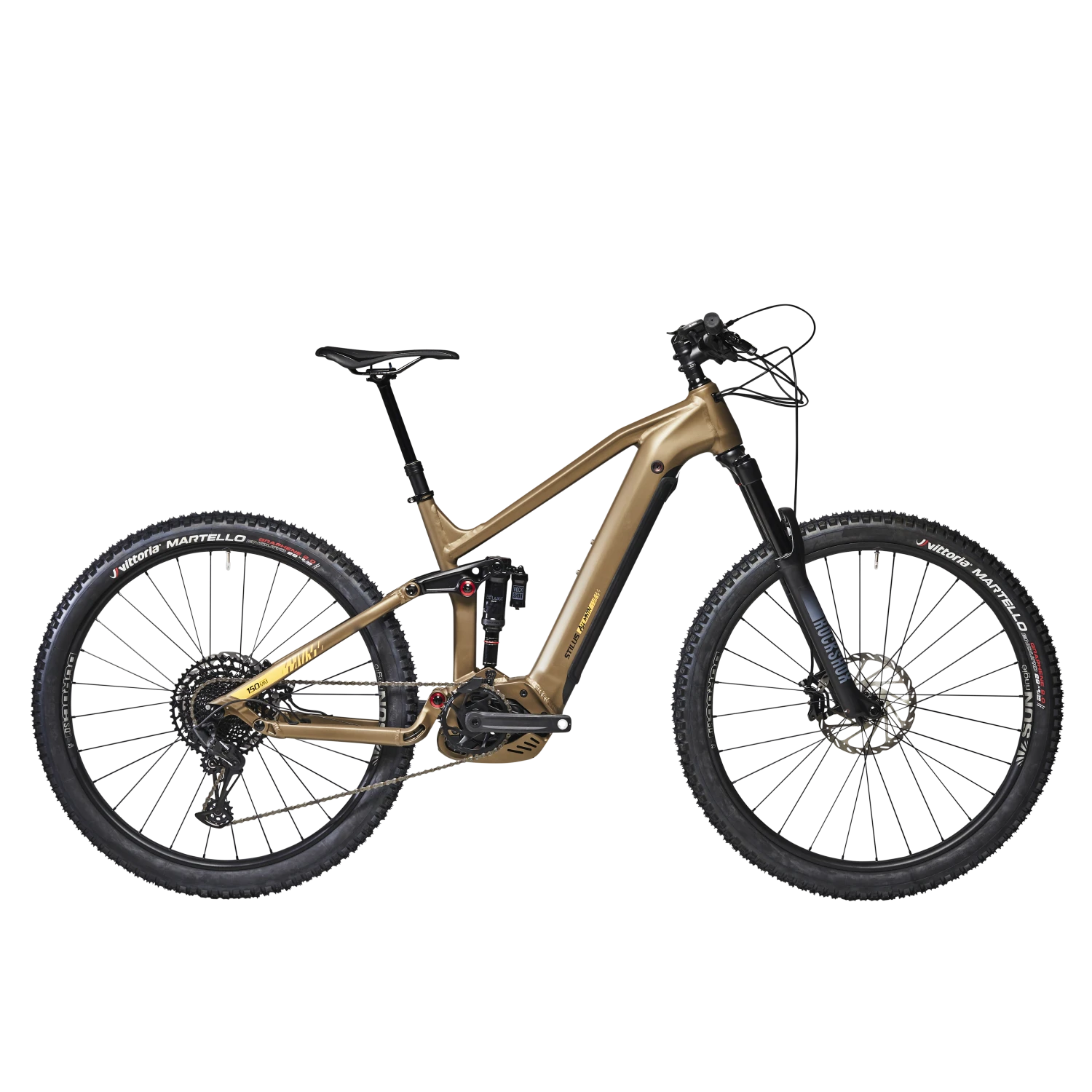

29 INCH ELECTRIC ALL MOUNTAIN BIKE STILUS E

This full-suspension electric mountain bike (EAMTB) is perfect for All Mountain biking.The perfect bike for riding technical trails. Its Bosch Performance Line CX motor gives you plenty of torque and a good boost on climbs or when coming out of corners.

Motor

Bosch Performance Line CX Gen4
Central position
85 Nm torque
Torque sensor
Max. assistance 340 %
Electric assistance cuts out beyond 25 km/h in accordance with the European regulation”

Battery

Bosch Powertube Horizontal
Capacity: 625 Wh

Display

Bosch Purion
4 assistance modes: Eco / Tour / eMTB / Turbo
Walk mode.
Stats displayed: charge level / speed / drive mode / battery range / distance covered / total distance.

Weight

S: 25.4 kg
M: 25.6 kg
L: 26 kg
XL: 26.1 kg

Net weight without pedals

Frame

Full-suspension 6061 aluminium
Fully integrated battery with AXA lock
Bosch integrated speed sensor
150 mm travel 205×65 Trunnion Standard shock

Quicklock 12 mm x 178 mm rear axle

Seat tube diameter: 30.9 mm

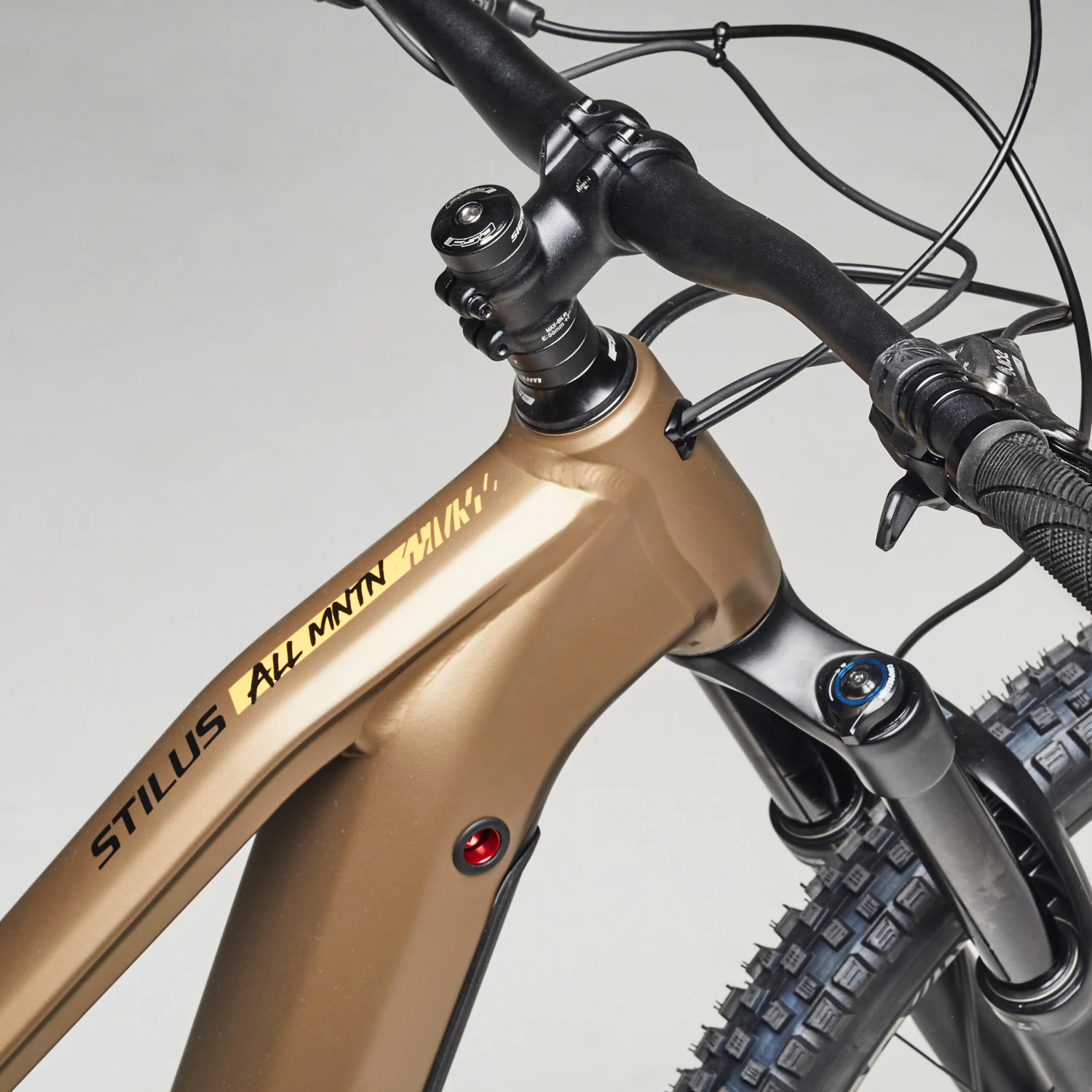

Tapered head tube
1 bottle cage mount

Drive train

SRAM SX
single chainring: FSA 34T

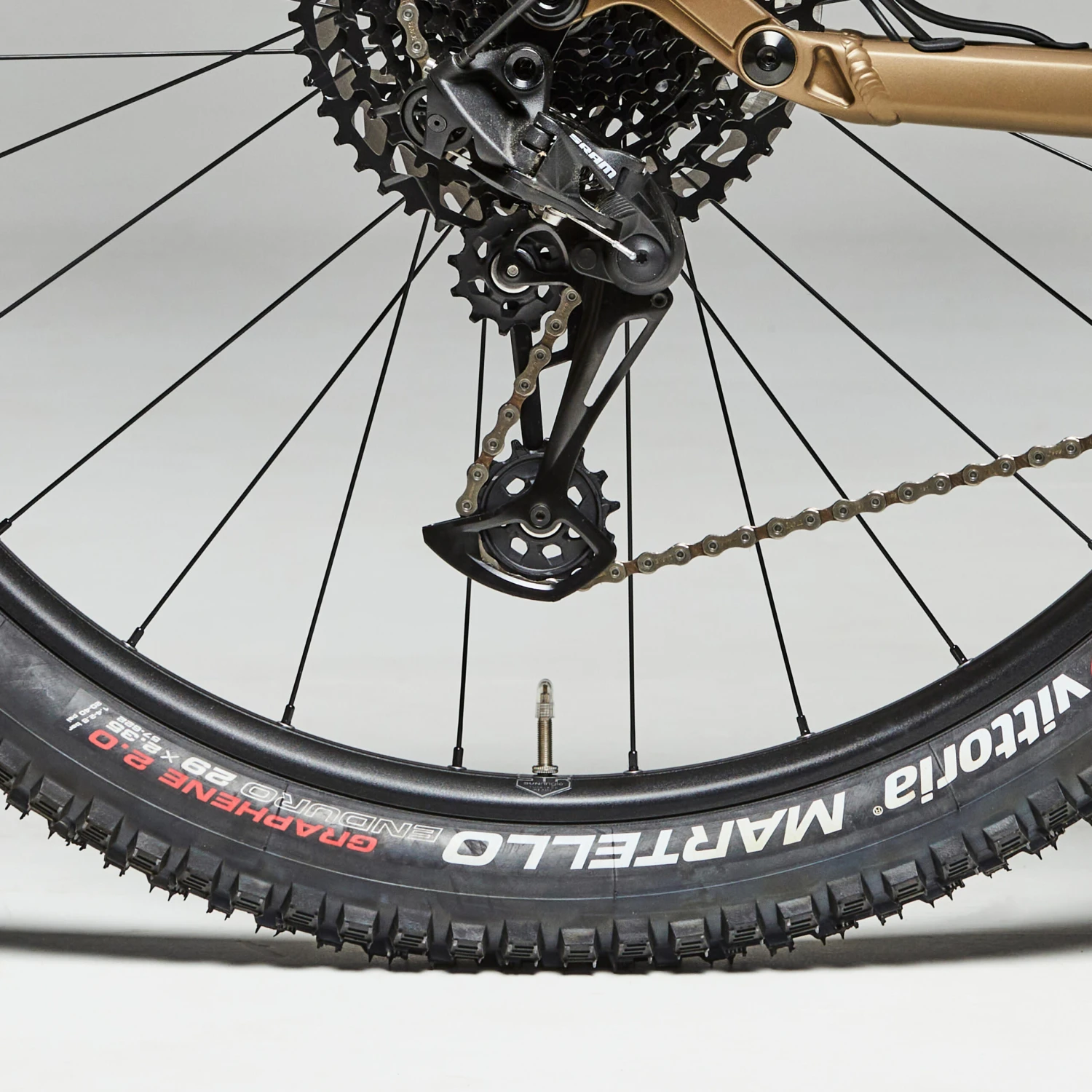

Rear derailleur: SRAM SX Eagle 12-speed
Cranks: FSA 165 mm
Shifter: SRAM SX

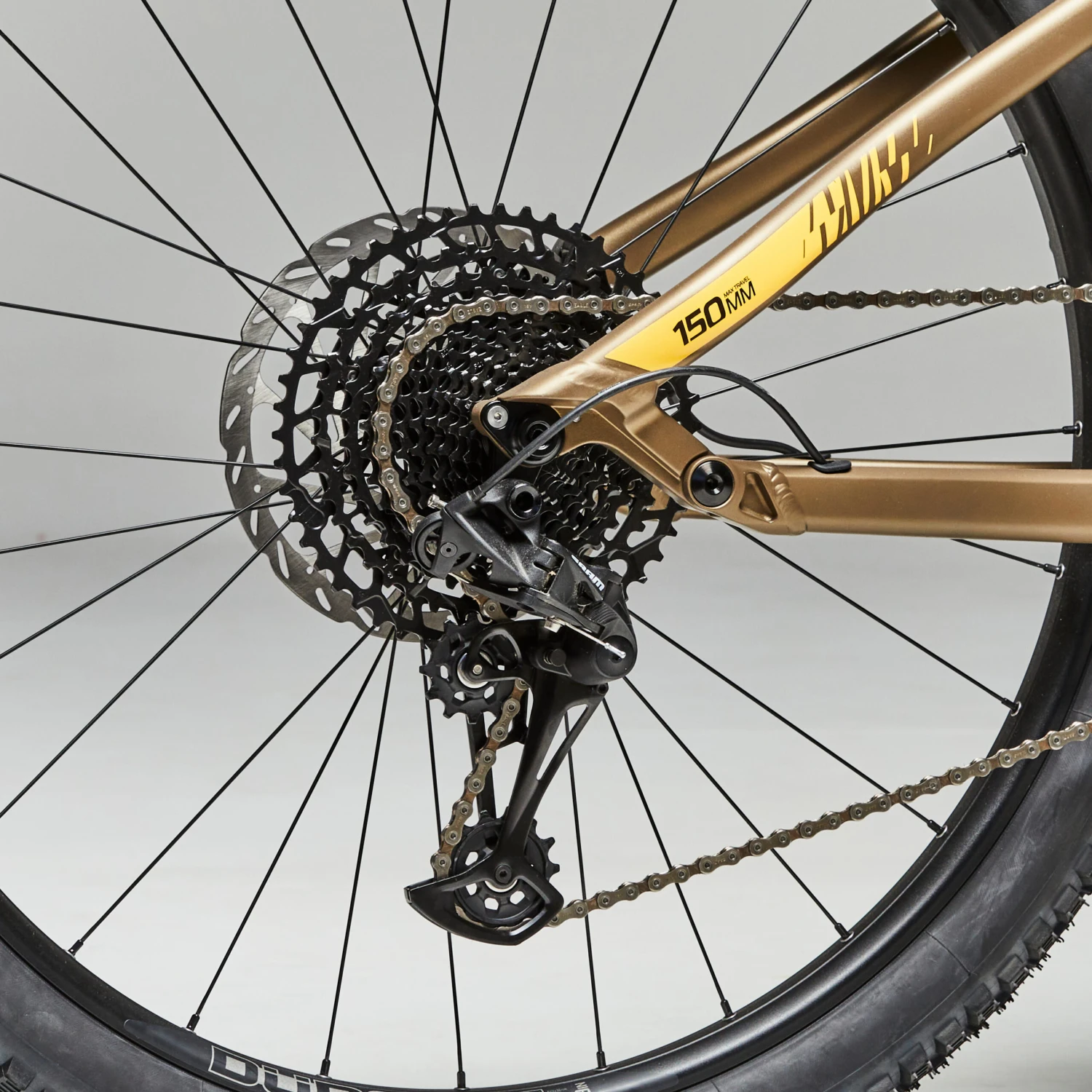

Cassette: SRAM PG-1210 Eagle 11-50 (11-13-15-17-19-22-25-28-32-36-42-50). Chain: SRAM SX Eagle 124 link
Chain guide: EL357 for 34T

Suspension

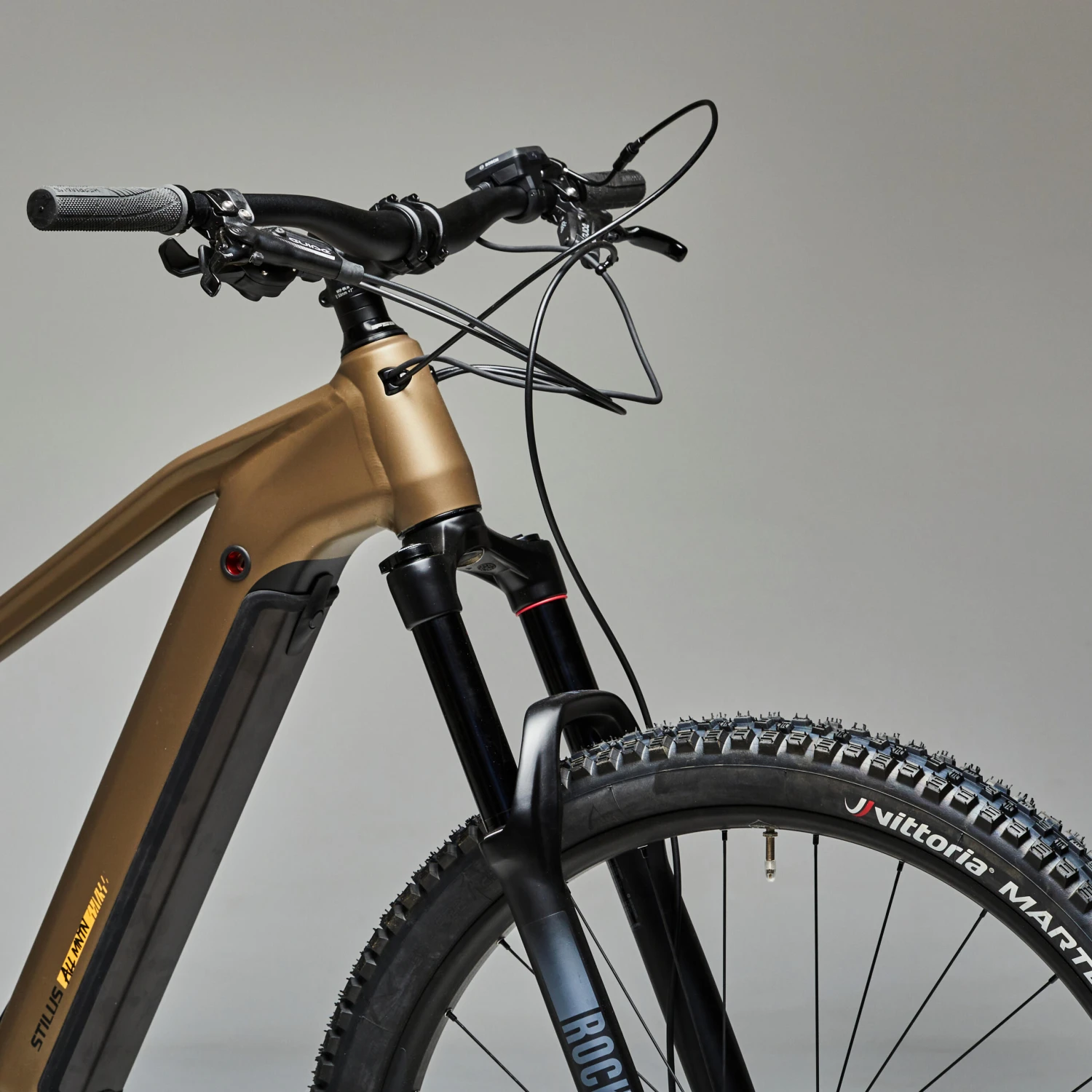

Rockshox 35 GOLD fork
Travel: 150 mm
35 mm damping rods
Hexagon type thru axle
15 x 110 mm Boost format
Motion Control cartridge DebonAir™ air spring

Rockshox Deluxe Select+
205 x 60 Trunnion

Wheels

Sun Ringle Duroc 30 29″ COMP wheels
27 mm inner width
32 round spokes
6-bolt disc mounting
HD freehub
Sealed bearings
Boost axles: 110 x 15 mm front and 148 x 12 mm rear
Tubeless Ready and equipped with rim tape

Brakes

SRAM G2 hydraulic disc brakes
Number of pistons: 4
Sram G2 discs
Front disc: 200 mm
Rear disc: 200 mm
6-bolt mounting

Riding position

Handlebar
Material: Aluminium
Diameter: 35 mm
Width: 760 mm
Rise: 20 mm
Upsweep: 3°
Backsweep: 6°

Stem
Material: Aluminium
Angle: 7°
Sizes: 55 mm

Grips:
Shark Lock DD38 BR 130 mm

Headset:
FSA 44/55.95 _ 39.78

Saddle / Seat post

Saddle: DDK MTB
Dropper seat post:
Trans-X YSP18P 30.9 mm
Travel: 100 mm (S), 125 mm (M), 150 mm (L/XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter

Tyres

Vittoria Martello
2 Ply technology
Black side

29″ x 2.6″

Pedals

Flat black resin

Accessories

Charger: Bosch 6A

Your mountain bike is supplied with a bell, lights, wheel reflectors and pedals.
