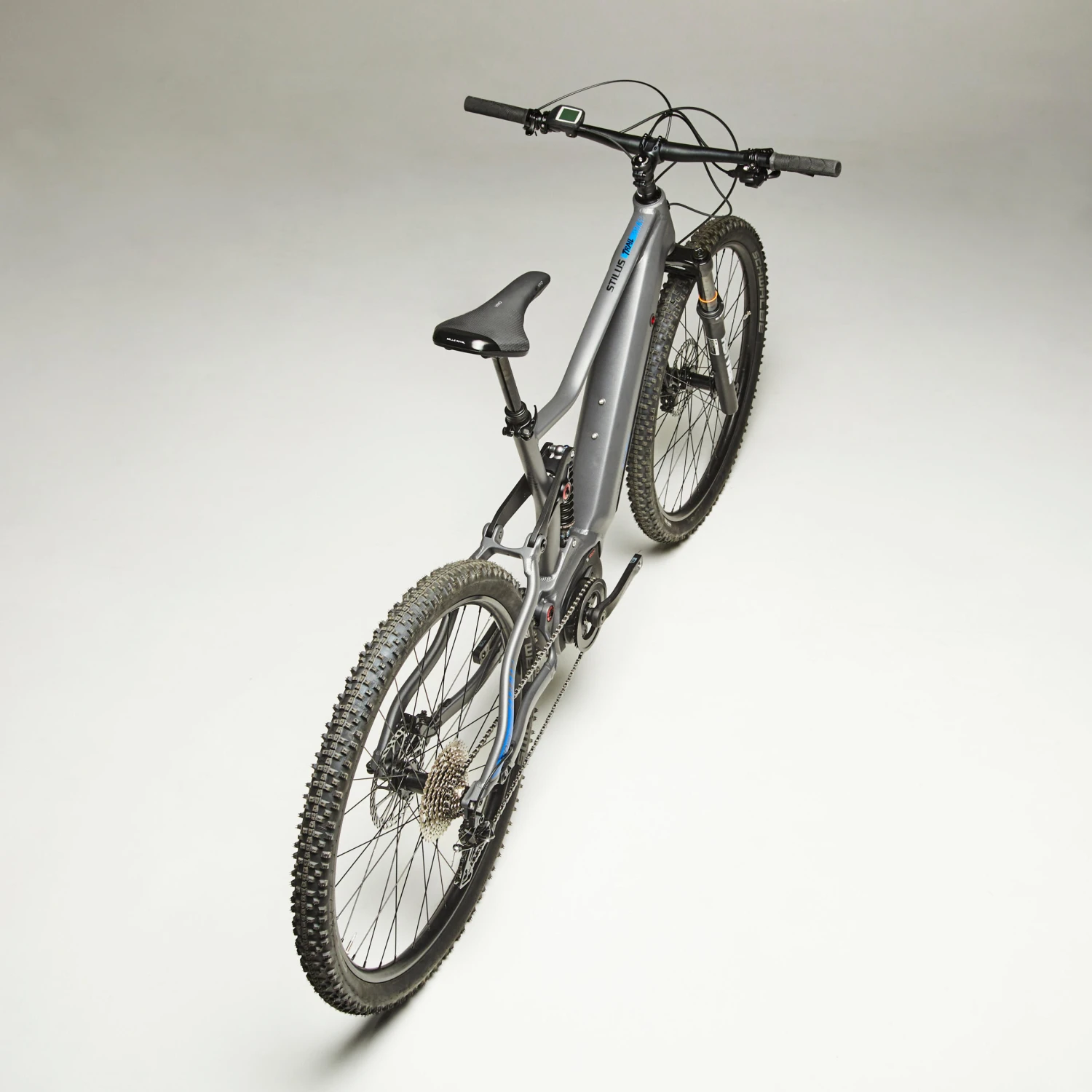

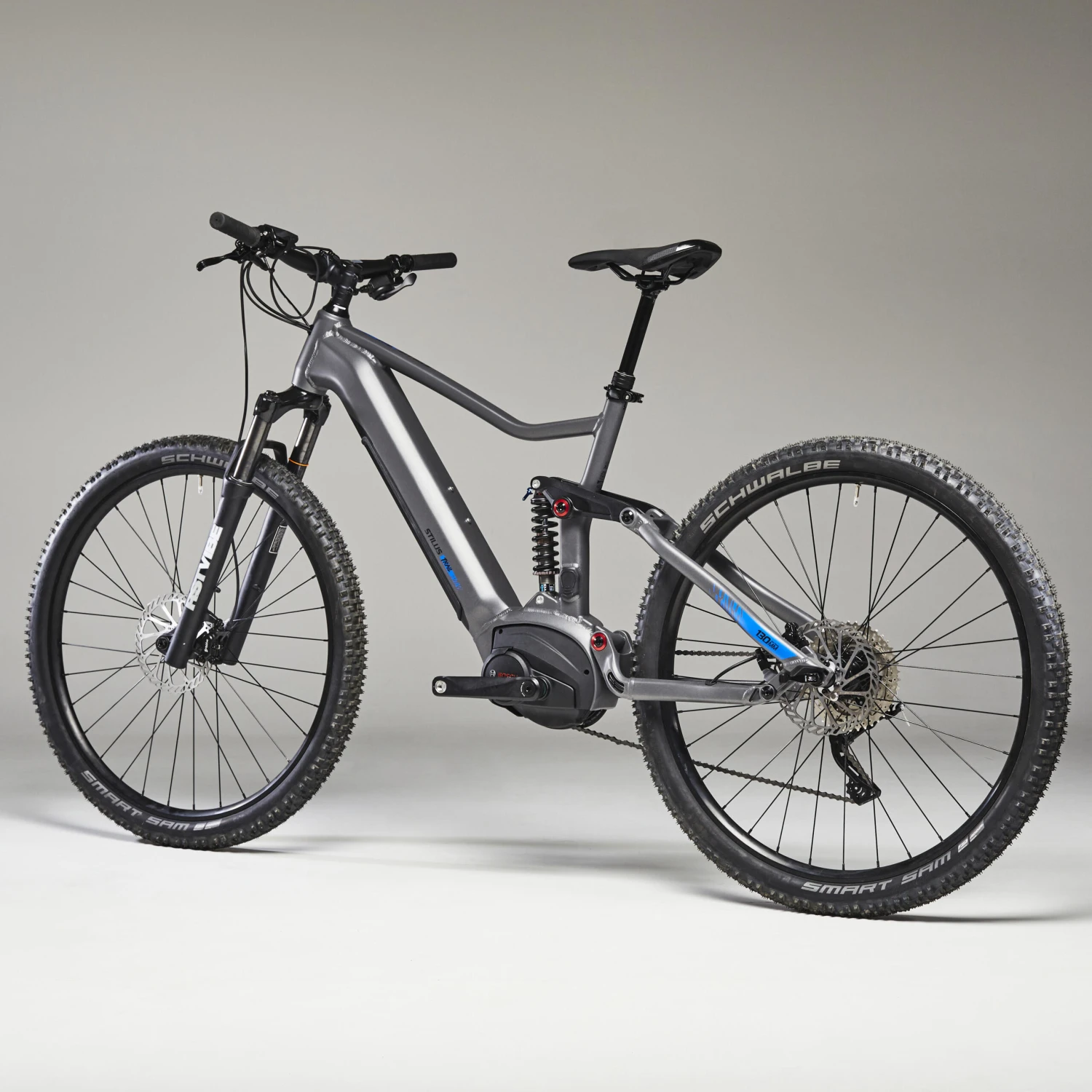

29″ Full Suspension Electric Mountain Bike E-Trail

This full-suspension electric mountain bike (EAMTB) is perfect for all-terrain touring routes with plenty of climbs (mountain routes).This is the perfect bike for riding moderately tough trails. Its shock and suspension fork keep you more comfortable.

Motor

Bosch Performance Line Gen3
Central position
65 Nm torque
Torque sensor
Max. assistance300 %
The electrical assistance cuts out over 25 km/h in accordance with European regulations

Battery

Bosch Powertube Horizontal
Capacity: 500 Wh

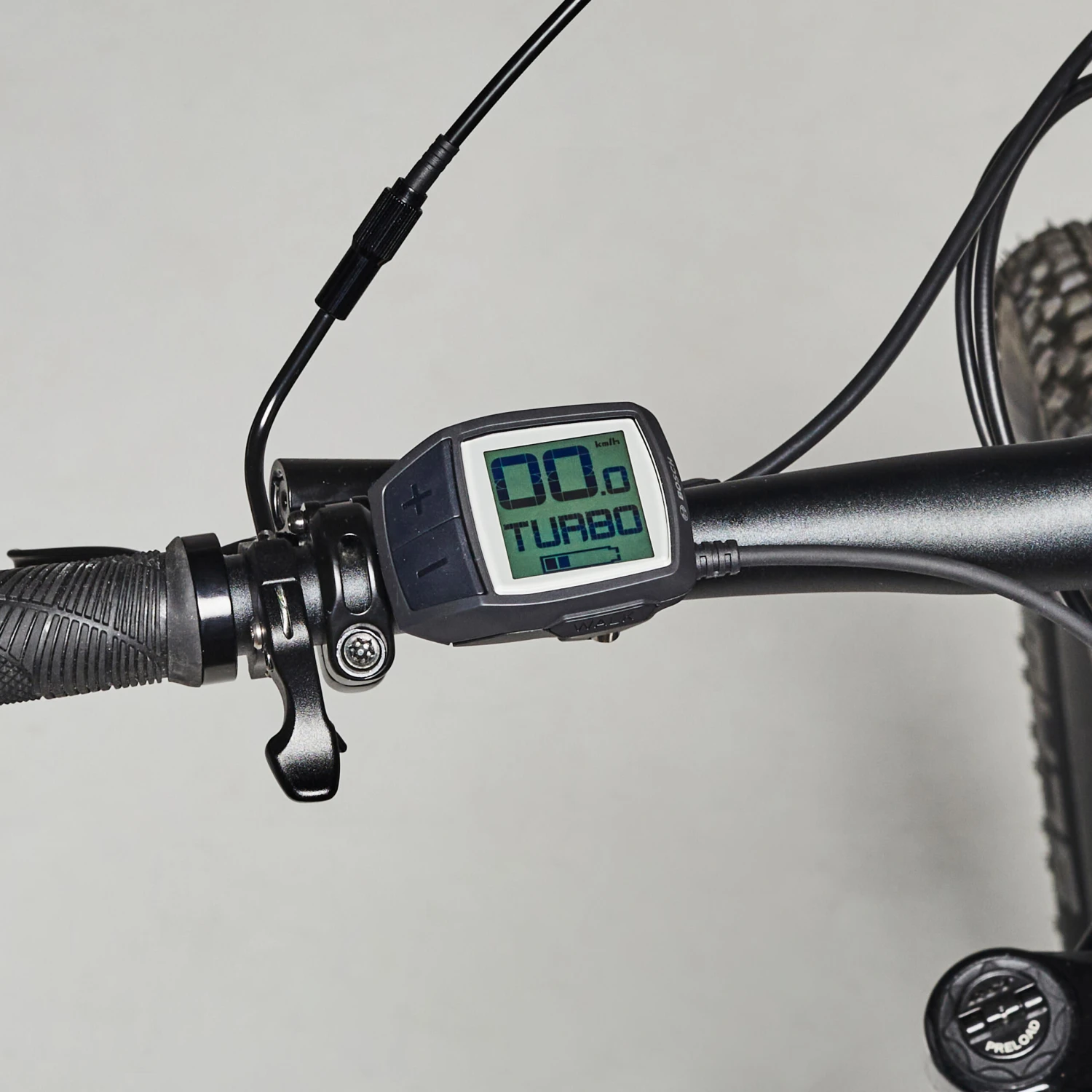

Display

Bosch Purion
4 assistance modes: Eco / Tour / eMTB / Turbo
Walk mode.
Stats displayed: charge level / speed / drive mode / battery range / distance covered / total distance.

Weight

S: 24.4 kg
M: 24.6 kg
L: 25 kg
XL: 25.1 kg

Net weight without pedals

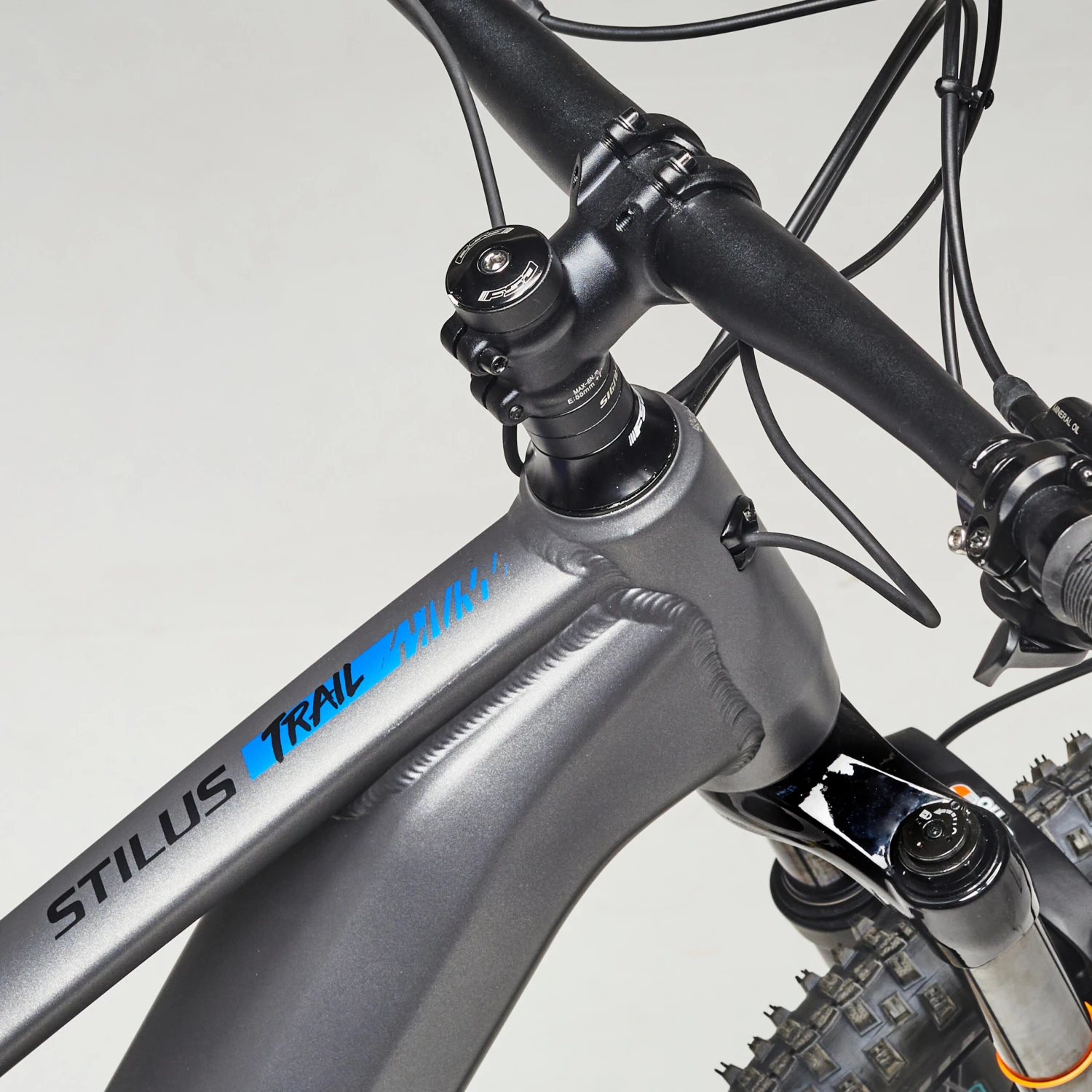

Frame

Full-suspension 6061 aluminium
Fully integrated battery with AXA lock
BOSCH integrated speed sensor
130 mm travel 190×50 Standard shock

Quicklock 12 mm x 178 mm rear axle

Seat tube diameter: 30.9 mm
Tapered head tube
1 bottle cage mounting point

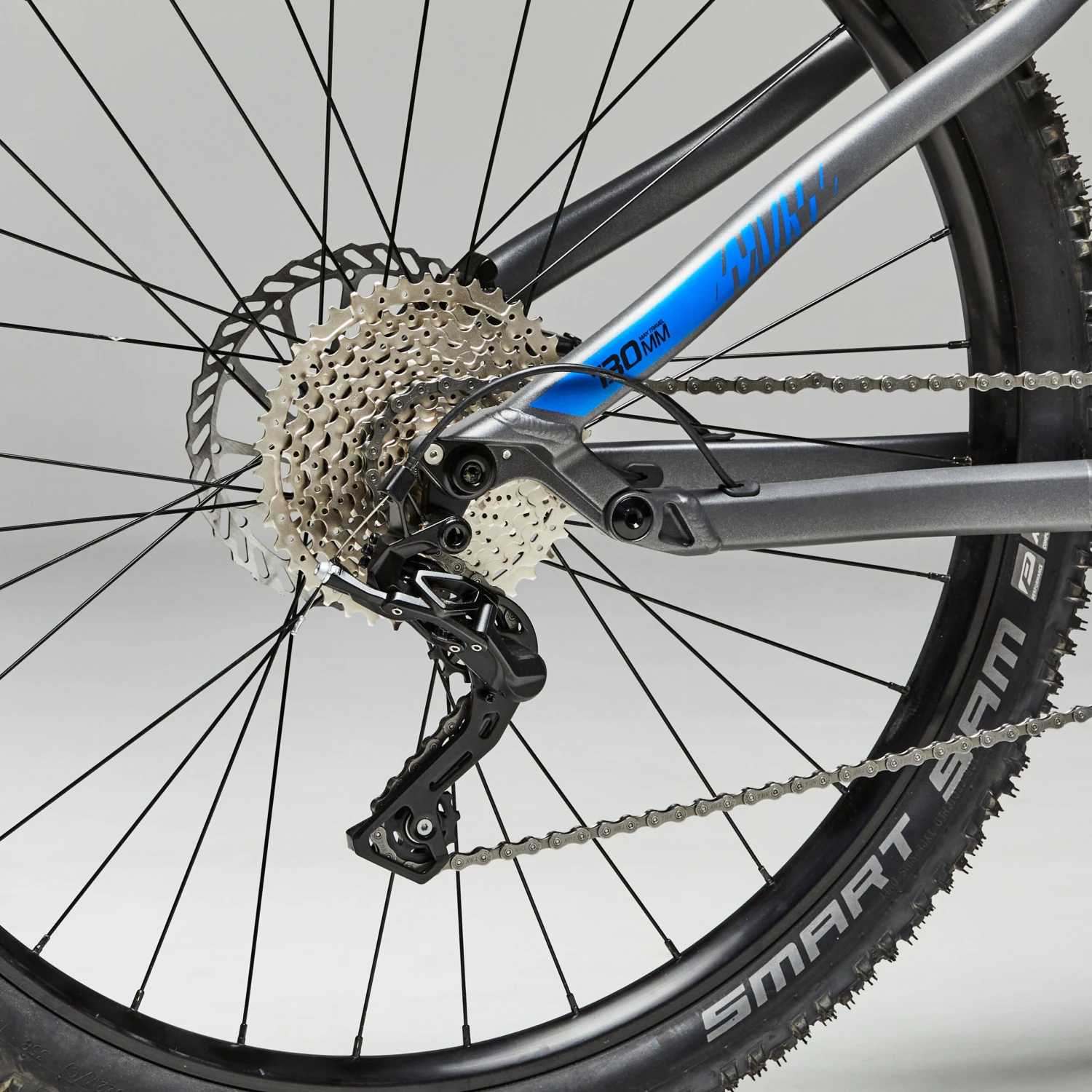

Drive train

single chainring: FSA ChainFlow 32 T

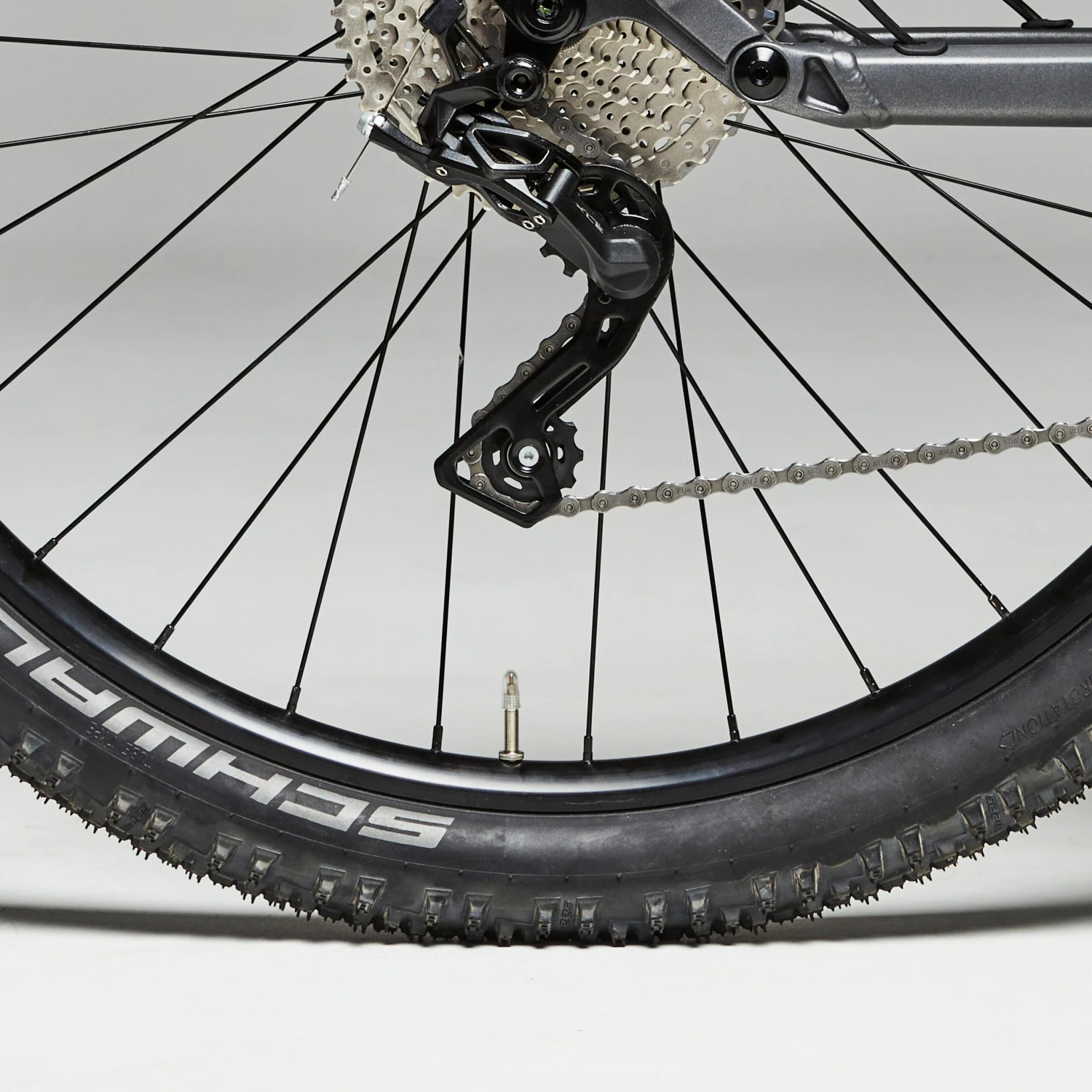

Rear derailleur: Microshift RD-M66M 10-speed
Cranks: FSA 160 mm
Shifter: Microshift SL-M850-R 10-speed
Cassette: 10-speed 11-42 T
Chain: Yaban eBIKE 10-speed 124 link
Chain guide: FSA integrated for 32 T

Suspension

RST Vibe 110-15 fork
Travel: 130 mm
34 mm dampers
Thru-axle
15 x 110 mm Boost format

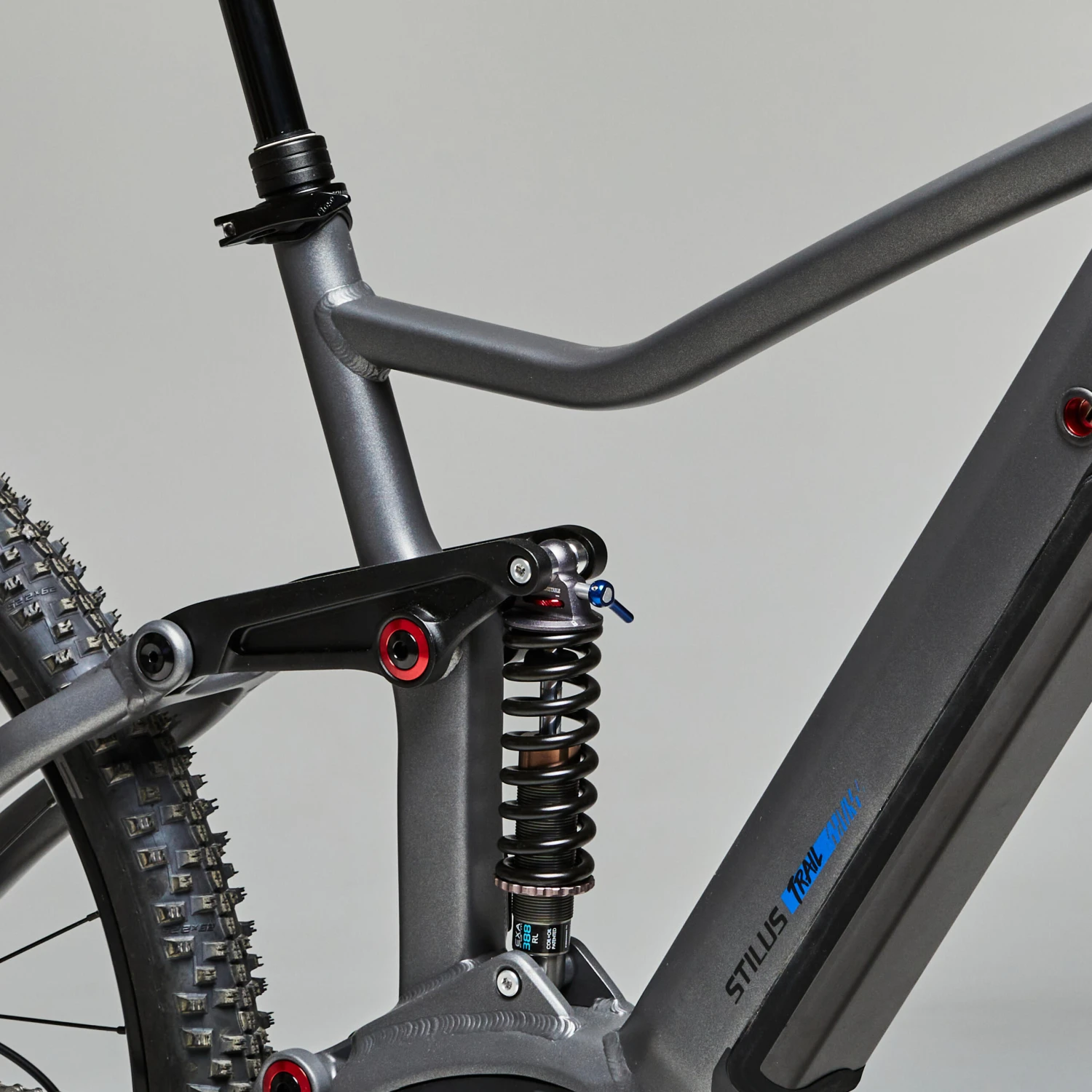

KS Coil 388 RL shock
190×50
Spring rate: 400 lbs (medium)

Wheels

These wheels were specially designed for this mountain bike:
– 29″ rims for 30 mm, 32 spokes
– Boost thru-axles: 12×148 rear and 15×110 front

– Please note, the rims are NOT tubeless ready

Brakes

Clarks M4 hydraulic disc brakes
Number of pistons: 4
Front disc: 180 mm
Rear disc: 180 mm
6-bolt mounting

Riding position

Handlebar
Material: Aluminium
Diameter: 35 mm
Width: 720 mm
Rise: 12 mm
Upsweep: 4°
Backsweep: 6°

Stem
Material: Aluminium
Angle: 7°
Sizes: 55 mm

Grips:
Shark Lock DD38 BR 130 mm

Headset
FSA 57B 44-55.95-39

Saddle / Seatpost

Saddle: Royal Vivo
Dropper seatpost:
Trans-X YSP18P 30.9 mm
Travel: 80 mm (M), 100 mm (L), 130 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter

Tyres

Schwalbe Smart Sam
29″ x 2.25″

Pedals

Flat black resin

Accessories included

Charger: Bosch 4A
Your mountain bike is supplied with a bell, lights, wheel reflectors and pedals.
